Assembly Instructions

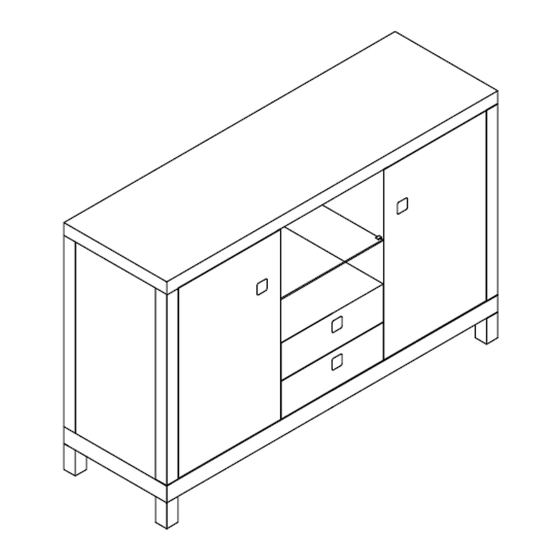

CM3311SV
ASSEMBLY RATING
Tools Required for Assembly:
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
Allen Wrench
(Included)
assembling a specific product (with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
DIFFICULT
EASY
2 PERSONS RECOMMENDED
Page 1 of 4
Rev.16-0 7 -18
Advertisement
Related Manuals for Furniture of America CM3311SV
Summary of Contents for Furniture of America CM3311SV
- Page 1 Assembly Instructions CM3311SV ASSEMBLY RATING Tools Required for Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench (Included) assembling a specific product (with 1 being easy and 5 being difficult). For some products, two persons are recommended.
- Page 2 Page 2 of 4...
- Page 3 Before you begin, please read Page 2 of “Assembly and Care Advice”. And remember, do not tighten until each step is completed or instructed. Hardware List Parts List #A x 8 pcs #1 x 4 pcs Bolt 1/4”x1-3/8” #B x 8 pcs #2 x 1 pc Lock Washer Center Leg...
- Page 4 With the help of another person, carefully place the server (#3) on its back over a protected surface. Align the 4 legs (#1) with the pre-drilled holes on the corners of the server (#3). III. Prepare 8 bolt assemblies by inserting FIRST the lock washer (#B) onto the bolt (#A) and then the flat washer (#C) onto the SAME bolt (#A), in that order.
