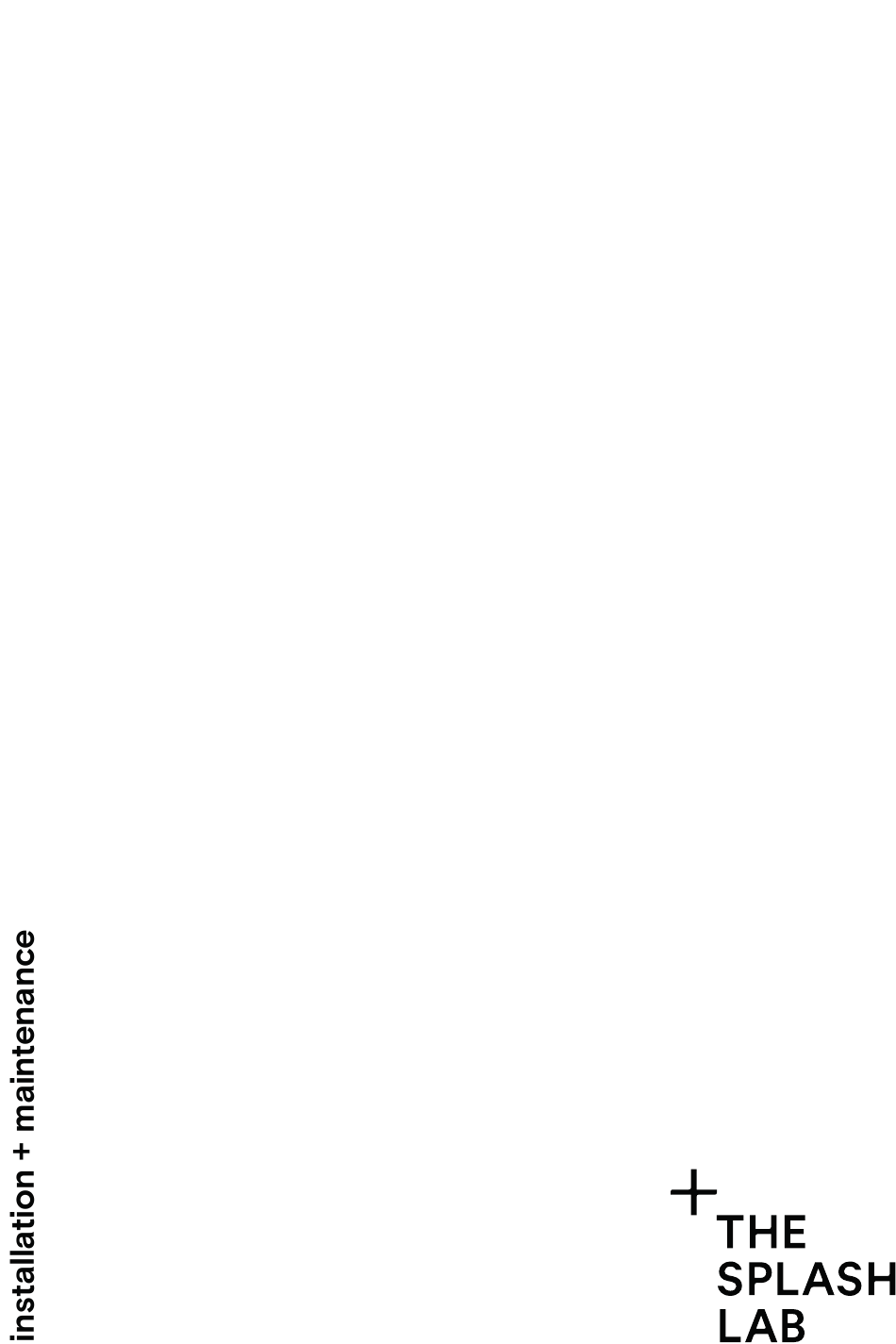

- Page 1 TSL.467 wall mounted soap dispenser...
- Page 2 contents Safety and Warnings Box Contents Technical Data Before You Install Dimensions How To Install Commissioning & Operation Maintenance & Cleaning Troubleshooting Warranty Contact Details TSL.467 MANUAL...
- Page 3 TSL.467 Read and save these instructions WARNING Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer (see back page for more details) For more information contact: Tel: +44 (0)161 482 7000 Email: info.uk@thesplashlab.com TSL.467 MANUAL...
-
Page 4: Box Contents
box contents Dispenser head assembly Fixing nut Anti rotation washer Base collar Soap reservoir Soap foamer pump unit Hex wrench / soap outlet Power Supply Unit (PSU) Soap pipe TSL.467 MANUAL... -
Page 5: Technical Data
Overview The TSL.467 is a stainless steel wall mounted soap dispenser, available in a variety of coloured finishes. Codes Power Finishes TSL.467.CS Mains Brushed Stainless Steel TSL.467.CP Mains Brushed Copper TSL.467.BK Mains Brushed Black TSL.467.BR Mains Brushed Brass TSL.467.BZ... - Page 6 technical data Related Products Soap dispenser TSL.470 Manual wall mounted soap dispenser Sensor operated taps TSL.884 Wall mounted IR sensor tap TSL.882 Wall mounted IR sensor tap Technical Data Weight 0.25Kg Material AISI 304 Stainless Steel Power supply 110V - 230V ac; 50/60Hz Output 1000mA Standby power...
-
Page 7: Before You Install
before you install Caution The TSL.467 parts must be put together correctly before installation. All parts must be installed correctly before powering up the system. Access Requirements Soap reservoir must be accessible for installation, commissioning and for ongoing/ routine maintenance. Front access: If the underside of the wash basin is tiled in, or is fixed onto a vanity unit, a front hatch or panel(s) must be constructed below the wash basin for ongoing maintenance access. -
Page 8: Technical Drawing
technical drawing Mains 95mm 117.4mm TSL467 MANUAL... -
Page 9: How To Install
how to install Soap dispenser installation Mark the dispenser centres onto Drill 18mm diameter hole through the surface for installation. mounting surface and into the wall cavity. Slide the collar over the spigot. Slot the spigot end of the dispenser through the pre-drilled hole. - Page 10 how to install Soap Installation Fit the anti-rotational washer over the Thread the locking nut onto the spigot spigot. and tighten with a spanner Position mounting template on the Drill 3 holes (size: 8mm) and insert the wall below the basin or behind the 3 wall plugs included in kit into the UT wall to find the best position for holes.
- Page 11 how to install Soap Installation Screw two screws into the top wall When the control box assembly has plugs, leaving a 6mm space between been hung on the wall, fasten the third the screw head and wall, so the soap screw into the bottom wall plug.
- Page 12 how to install *To use power mains as the power Push the soap tank to the track. Make source, do not place batteries in the sure the soap pump plate is under the battery compartment. To use batteries pushing shaft before you put back the as the power source, insert the soap tank, so the soap dispenser can batteries in the battery compartment...
-
Page 13: Operation
Should a replacement mains power supply be required it is imperative that an identical type is used. Contact The Splash Lab for further information. 13 + TSL.467 MANUAL... -
Page 14: Maintenance And Cleaning
maintenance & cleaning *Isolate the unit from the power supply before any servicing or maintenance work is carried out. How to clean the spout of soap dispenser and how regularly Please use a clean cloth to wipe away the dusts and/or water mark on the spout or use a damp cloth to clean it. -
Page 15: Troubleshooting
troubleshooting If the dispenser will not run Ensure there is power to the dispenser and the wire from the fuse spur is connected correctly to the pump motor. Check that the sensor cables are fully connected to the corresponding cables from the foam pump unit. -
Page 16: Warranty
TSL.467: 1 years limited warranty If a defect is found in normal use, The Splash Lab will, at their discretion, repair, provide a replacement part or product, or make appropriate adjustments. Damage caused by accident, misuse, or abuse is not covered by this warranty. Improper care and cleaning will void the warranty. - Page 17 contact General information info.uk@thesplashlab.c om +44 (0) 161 482 7000 For further contact information visit: www.thesplashlab.com TSL.467 MANUAL...
- Page 18 TSL.467 MANUAL...
- Page 19 Meadow Industrial Estate, 34 Water Street, Stockport SK1 2BU T: 0161 482 7000 info.uk@thesplashlab.com thesplashlab.com/uk...
