Summary of Contents for The Splash Lab TSL.410

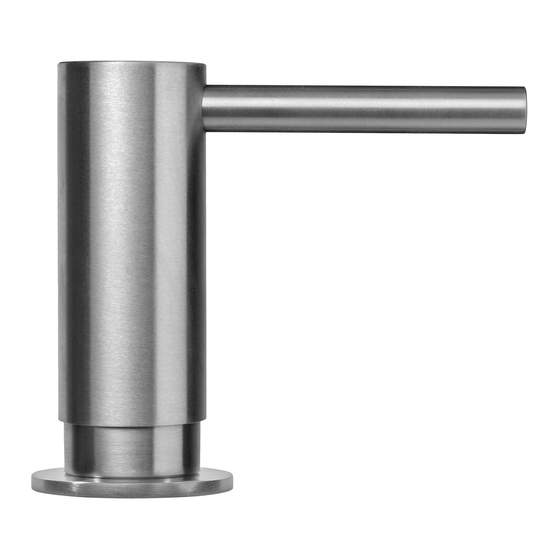

- Page 1 TSL.410 deck mounted soap dispenser...
- Page 2 Safety and Warnings Box Contents Diagram Technical Data Before You Install Dimensions How To Install Commissioning & Operation Troubleshooting Cleaning Maintenance Warranty Contact Details TSL.410 MANUAL...
- Page 3 Read and save these instructions WARNING Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer (see back page for more details). For more information contact: Tel: +44 (0)161 482 7000 Email: technical@thesplashlab.com TSL.410 MANUAL...
-
Page 4: Box Contents
Body Bottle connector Flat washer Base collar Fixing nut Fixing nut Soap feed pipe Soap reservoir TSL.410 MANUAL... - Page 5 Body Bottle connector Base collar Soap feed pipe Flat washer Soap reservoir Fixing nut Fixing nut TSL.410 MANUAL...
-
Page 6: Technical Data
Overview The TSL.410 is a stainless steel deck mounted soap dispenser, available in a variety of coloured finishes with a sleek and minimalist design. Codes Power Finishes TSL.410.CS Pump-action Brushed Stainless Steel TSL.410.CP Pump-action Brushed Copper TSL.410.BK Pump-action Brushed Black TSL.410.BR... - Page 7 LST2 - 5L reservoir with 2x 2m feed pipe LST3 - 5L reservoir with 3x 2m feed pipe LST4 - 5L reservoir with 4x 2m feed pipe Sensor Operated Taps TSL.960 Deck mounted tap TSL.990 Deck mounted tap Related Documents Warranty Document Email: technical@thesplashlab.com FRONT SIDE TSL.410 MANUAL...
-
Page 8: Before You Install
As a guide, The Splash Lab recommends a minimum distance of 100mm between the dispenser and a tap. The TSL.410 is supplied with a single-feed reservoir fitted to the underside of the dispenser. If a multifeed system is required, this needs to be specified separately. -
Page 9: Technical Drawing
technical drawing SIDE FRONT Ø30 Ø30 Soap Cap Adaptor Soap Bottle Dispenser Hole Cut-Out 25mm TSL410 MANUAL... -
Page 10: How To Install
how to install Soap Installation Mark soap hole centres onto the surface Drill 25mm diameter hole in countertop. for installation. Insert dispenser through hole in basin or Slide washer over mounting shank and countertop with the stainless steel bezel then tighten the fixing nut by hand. above the counter. - Page 11 1st nut. (Use 2 spanners for this) Screw the bottle connector onto the Tighten the locking grub screw using a mounting shank so that 1 turn of thread 2mm hex wrench. is visible below the connector. TSL.410 MANUAL...
- Page 12 Ensure all parts of the product are tight and do not move unintentionally. Once all nuts are tightened, use the pump action to dispense soap. WARNING: Ensure all connections are fully tightened to ensure full seal of the soap dispenser. TSL.410 MANUAL...
-
Page 13: Operation
Pump the dispenser head until soap is dispensed from the spout operation The dispenser is depressed by the user, which draws a measured amount of soap (1ml) from the reservoir and is then dispensed from the spout onto the user’s hands. TSL.410 MANUAL... - Page 14 Use a soft cloth or sponge with a mild solution of soapy water as part of the regular washroom janitorial routine. Do not use abrasive or cream cleaners as these will damage the surface finish. If further information is required, contact The Splash Lab technical team for more detailed stainless steel care guidelines. soap A good quality liquid soap of viscosity 100 –...
-
Page 15: Maintenance
Priming of the system is achieved by depressing the pump until soap is dispensed consistently. THE SOAP DISPENSERS CONTAIN NO USER-SERVICABLE PARTS. TSL.410 MANUAL... -
Page 16: Warranty
TSL.410: 2 years parts & labour If a defect is found in normal use, The Splash Lab will, at their discretion, repair, provide a replacement part or product, or make appropriate adjustments. Damage caused by accident, misuse, or abuse is not covered by this warranty. Improper care and cleaning will void the warranty. - Page 17 General information info@thesplashlab.com +44 (0) 161 482 7000 Technical support technical@thesplashlab.com For further contact information visit: www.thesplashlab.com TSL.410 MANUAL...
