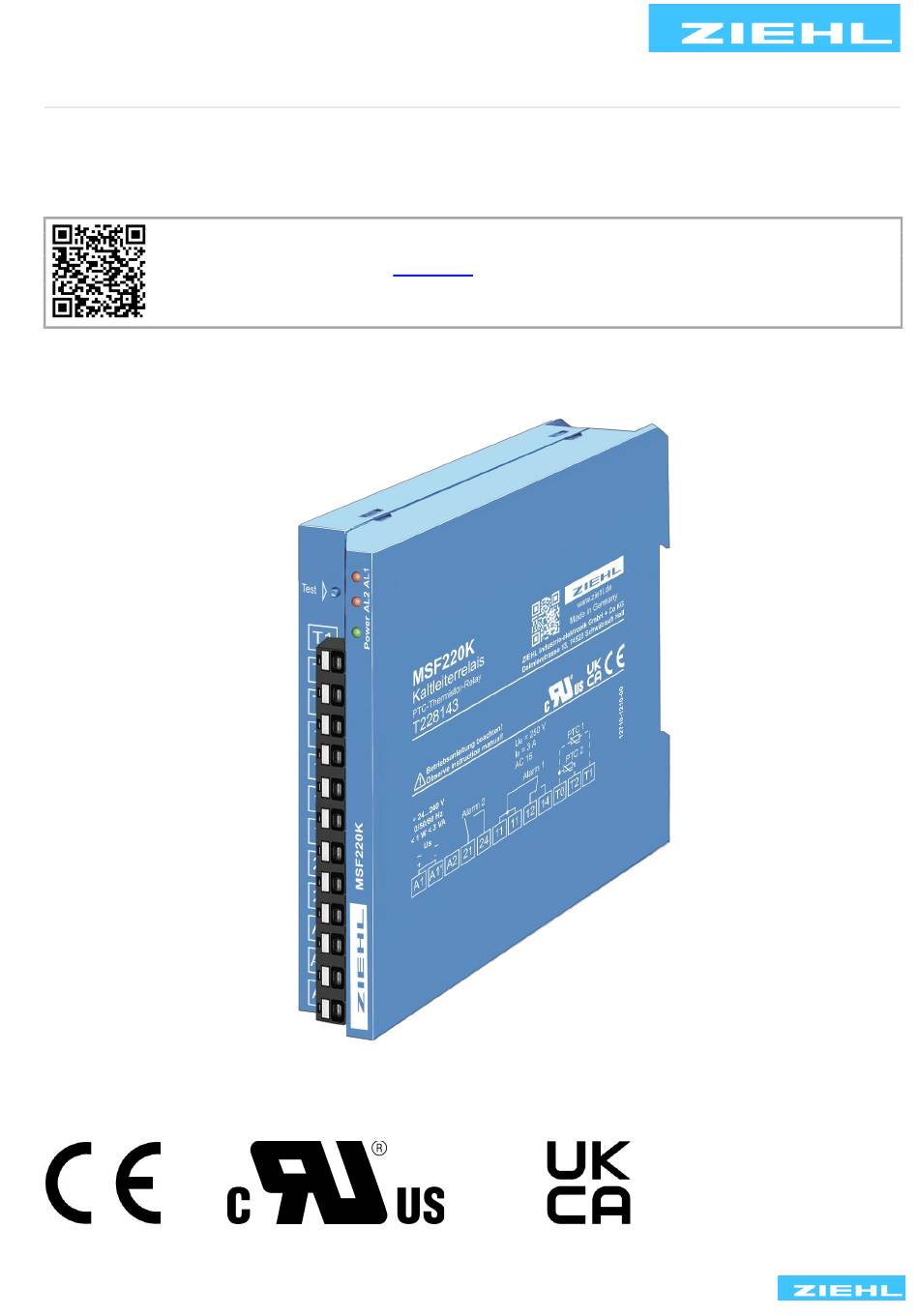

Temperature Relays and MINIKA®
Operating Manual MSF220K
For more information and help about this product please scan the
choose the following link:
Operating manual, Quick guide, Datasheet, Connection diagram, CAD Data
Firmwareupdates, FAQ, Videos about installation and settings, Certificates

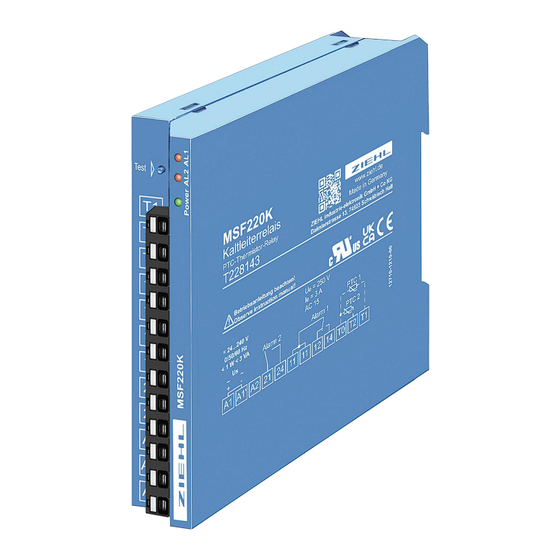

- PTC-relay for dry transformers
MSF220K
12710-0711-00
Mains Monitoring
Digital Panelmeters MINIPAN®
MSF220K
Switching Relays and Controls
Page 1 / 9
ZIEHL industrie – elektronik GmbH + Co KG
Daimlerstr.13, 74523 Schwäbisch Hall, Germany
+ 49 791 504-0,
info@ziehl.de,
Measuring Transducers
Grid- and Plant Protection
updated: 2024-04-03 / dr
from Firmware: 0-00
QR-Code
or
www.ziehl.deAA
www.ziehl.de
Advertisement
Table of Contents
Related Manuals for ZIEHL MSF220K
Summary of Contents for ZIEHL MSF220K
- Page 1 ZIEHL industrie – elektronik GmbH + Co KG Daimlerstr.13, 74523 Schwäbisch Hall, Germany + 49 791 504-0, info@ziehl.de, www.ziehl.de Temperature Relays and MINIKA® Mains Monitoring Digital Panelmeters MINIPAN® Switching Relays and Controls Measuring Transducers Grid- and Plant Protection updated: 2024-04-03 / dr...
-
Page 2: Table Of Contents
Relay K2 (Alarm 2/Trip) is connected in operating current mode. It makes no trip signal when supply voltage is switched on. A delayed switching time relay in series is not required. Thus, the MSF220K can also be used when the supply voltage for the device is provided by the monitored transformer. -
Page 3: Overview Of Functions
5 Connecting diagram 6 Detailed description PTC sensors with different nominal response temperatures (NRT) can be connected to MSF220K. When everything is ok, relay K1 (Alarm 1) is picked up (11-14 closed) and relay K2 (Alarm 2, trip) is released (21-24 open). -
Page 4: Important Information
Make sure sufficient space to other equipment or heat sources. If the cooling becomes more difficult e.g. through close proximity of apparatus with elevated surface temperature or hindrance of the cooling air, the tolerable environmental temperature is diminishing. MSF220K 12710-0711-00 Page 4 / 9 www.ziehl.de... -
Page 5: Installation
• Keep button [Test] pressed (2s) to save the function (the Power LED blinks fast, release button [Test]) • The MSF220K makes a reset and restarts with the set function Checking the function of device • Power on the device (green LED Power is on) •... -
Page 6: 10 Error Search
• with Test button (test function) • with potentiometers on PTC 1 (T0-T1) and PTC 2 (T0-T2) • When sensor error monitoring is switched off: with jumpers/interruptions on PTC1 and PTC 2 MSF220K 12710-0711-00 Page 6 / 9 www.ziehl.de... -
Page 7: 11 Technical Data
EN 60947-8 Rated impulse voltage 4000 V Overvoltage category Pollution degree Rated insulation voltage Ui 300 V Transformer EN 61558-2-6 (VDE 0551) On-period 100 % EMC immunity (industry) EN 61000-6-2 EMC emission EN 61000-6-3 MSF220K 12710-0711-00 Page 7 / 9 www.ziehl.de... - Page 8 Snap mounting on 35 mm standard rail EN60715 or M4 screws (additional bar not included) Mounting position Weight Model AC 220...240 V approx. 140 g AC/DC 24...240 V approx. 110 g Subject to technical modifications MSF220K 12710-0711-00 Page 8 / 9 www.ziehl.de...
-
Page 9: 12 Housing Type K
13 Disposal Disposal should be carried out properly and in an environmentally friendly manner in accordance with legal provisions. ZIEHL is registered with the EAR Foundation under WEEE no .: DE 49 698 543. MSF220K 12710-0711-00 Page 9 / 9...
