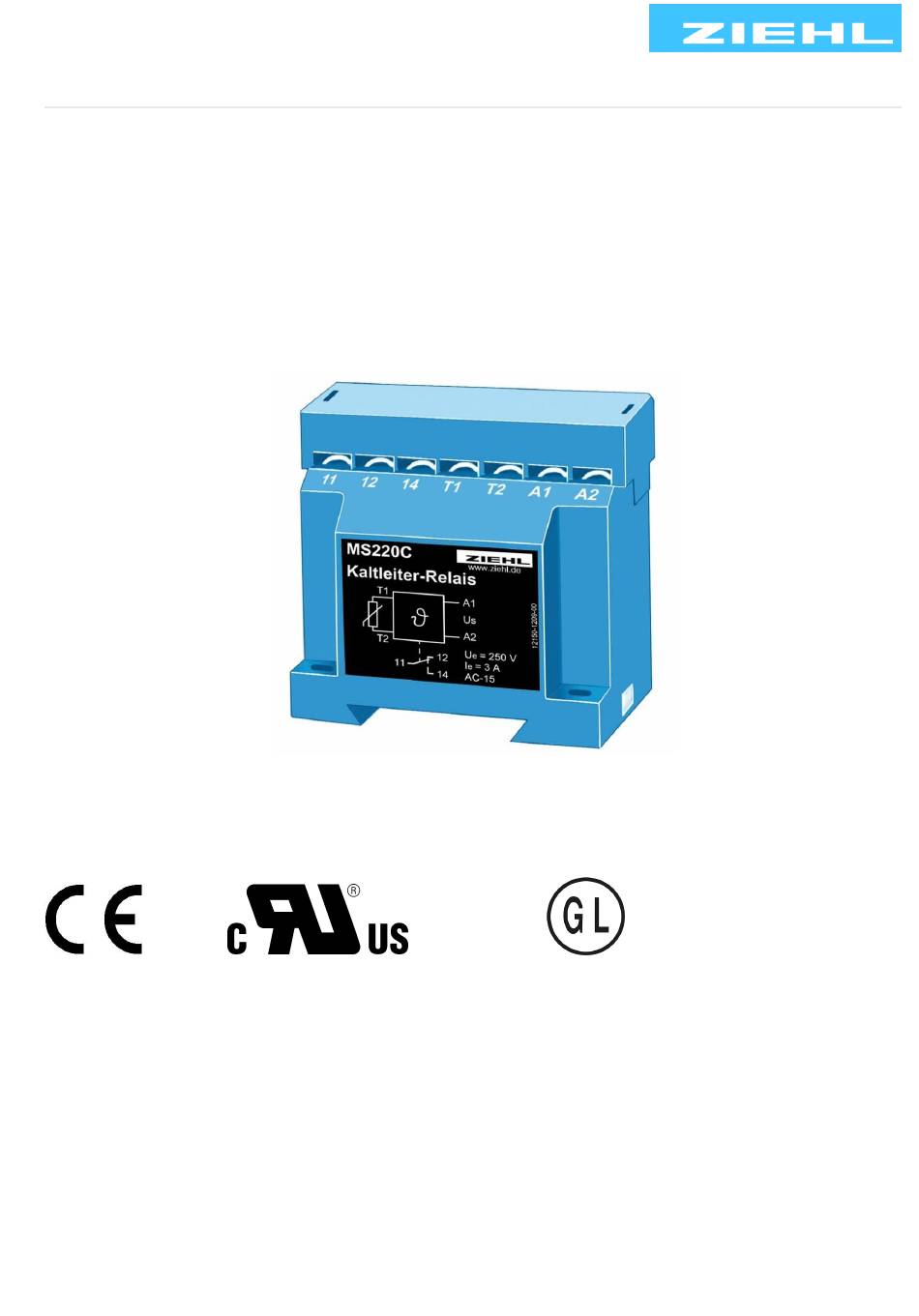

Operating Instructions MS220C
PTC-thermistor relay , TMP tripping device – Power supply AC and AC/DC
Approvals:
MS220C
12150-0703-03
Messgeräte MINIPAN
marking see type plate on the device
®
Schaltrelais und Steuerungen
E179399
Page 1 / 8
ZIEHL industrie – elektronik GmbH + Co KG
Daimlerstr.13, 74523 Schwäbisch Hall, Germany
+ 49 791 504-0,
info@ziehl.de,
Messumformer
Netz- und Anlagenschutz
updated: 2017-11-08 Su
www.ziehl.de
www.ziehl.de
Advertisement
Table of Contents
Related Manuals for ZIEHL MS220C
Summary of Contents for ZIEHL MS220C
- Page 1 ZIEHL industrie – elektronik GmbH + Co KG Daimlerstr.13, 74523 Schwäbisch Hall, Germany + 49 791 504-0, info@ziehl.de, www.ziehl.de ® ® Temperaturrelais und MINIKA Strom- und Spannungsrelais Messgeräte MINIPAN Schaltrelais und Steuerungen Messumformer Netz- und Anlagenschutz updated: 2017-11-08 Su Operating Instructions MS220C PTC-thermistor relay , TMP tripping device –...
-
Page 2: Table Of Contents
13 Form C ..............................8 1 Display and control elements The MS220C is a built-in device and has no display or operating elements. The status can be signalled by monitoring the normal closed contact and an external signal lamp. 2 Pre-Adjustment No settings are necessary on the devices. -
Page 3: Summary Of Functions
H1 = indicator lamp fault F1-F4 = fuses K1 = contactor 6 Function diagram Caution! Tripping is not stored and is not non-volatile! The released relay switches on automatically after a voltage dip. MS220C 12150-0703-03 Seite 3 / 8 www.ziehl.de... -
Page 4: Important Notes
Attention! TMP tripping relays with supply voltage DC/AC 24 V without potential separation are intended to use at power supplies according SELV or PELVwhere protected wiring is used. MS220C 12150-0703-03 Seite 4 / 8 www.ziehl.de... -
Page 5: Commissioning
In case of any other malfunction replace the device. Please add a description of the failure and send it back for repair. 11 Maintenance and repair The devices are maintenance-free. Only the manufacturer may accomplish repairs. We recommend testing within the regular maintenance intervals of the plant, where the device is used. MS220C 12150-0703-03 Seite 5 / 8 www.ziehl.de... -
Page 6: 12 Technical Data
Rated insulation voltage Ui 415 V Rated impulse voltage 4000 V Overvoltage category Contamination level Transformer EN 61558-2-6 Test Voltage Input/output 2500 V 50 Hz EMC - Immunity EN 61000-6-2 EMC - Emission EN 61000-6-3 MS220C 12150-0703-03 Seite 6 / 8 www.ziehl.de... - Page 7 Insulation strip length min. 8 mm Subject to technical modifications You’ll find this and other user manuals in the internet under www.ziehl.com ZIEHL industrie – elektronik GmbH + Co KG Daimlerstr. 13 74523 Schwaebisch Hall Germany Fon + 49 791 504-0 info@ziehl.de www.ziehl.de...
-
Page 8: 13 Form C
Form C Dimension in mm MS220C 12150-0703-03 Seite 8 / 8 www.ziehl.de...
