DISCLAIMER
While we believe these instructions to be accurate at the time of publication, Hadco reserves the right to make
changes to this fixture and/or components. The contractor should follow local and National Electrical Codes
where required. For any further information please contact Hadco customer service.
REPLACEMENT COMPONENTS
ORDERING NUMBER
V092-FIN(*)
V092-CAP(*)
V092-NECK(*)
V092-DOME
V092-GLOBE
V092-CHIM
V092-REFR-T2
V092-REFR-T5
(*) = SPECIFY FINISH (A - BLACK, J - GREEN)
REPLACEMENT BALLAST ASSEMBLIES (includes twist-lock ballast cover)
REPLACEMENT HPS BALLASTS
(for fixtures with cut-off optics)
ORDERING NUMBER
V092-(*)D70S(**)
V092-(*)G70S(**)
V092-(*)D100S(**)
V092-(*)G100S(**)
V092-(*)D150S(**)
V092-(*)G150S(**)
REPLACEMENT MH BALLASTS
(for fixtures with cut-off optics)
ORDERING NUMBER
V092-(*)D70H(**)
V092-(*)D100H(**)
V092-(*)D175H(**)
V092-(*)G175H(**)
V092-(*)G250H(**)
32001242, revision F

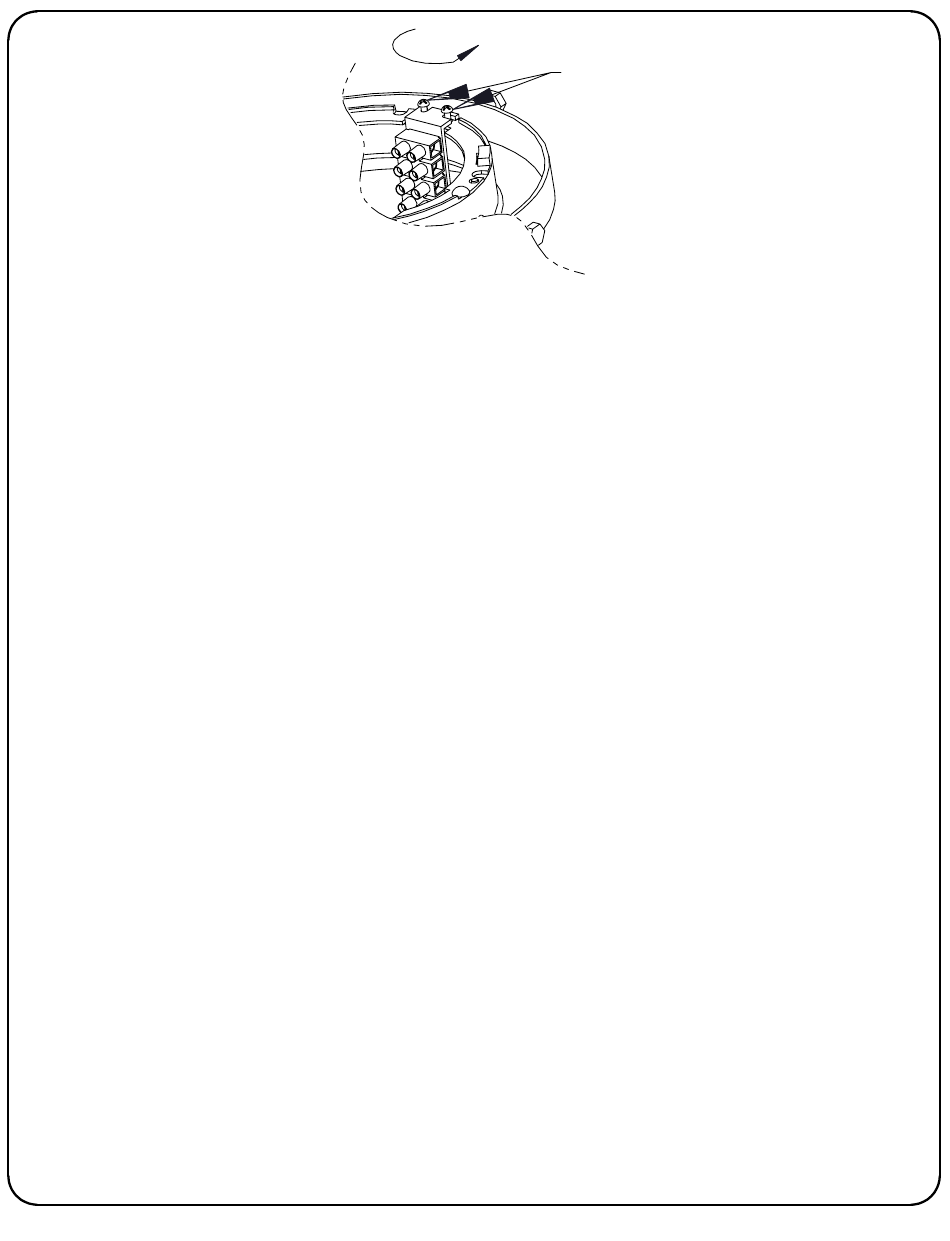

FIGURE 1.
DESCRIPTION
FINIAL
VENT CAP
VENT NECK
ROOF DOME, WHITE FINISH
POLYACRYL CLEAR LENS
FROSTED GLASS CHIMNEY
GLASS REFRACTOR BOWL, TYPE 3 OPTICS
GLASS REFRACTOR BOWL, TYPE 5 OPTICS
DESCRIPTION
70W HPS, MED BASE
70W HPS, MOG BASE
100W HPS, MED BASE
100W HPS, MOG BASE
150W HPS, MED BASE
150W HPS, MOG BASE
DESCRIPTION
70W MH, MED BASE
100W MH, MED BASE
175W MH, MED BASE
175W MH, MOG BASE
250W MH, MOG BASE
(*) = SPECIFY FINISH (A - BLACK, J - GREEN)
(**) = SPECIFY VOLTAGE (E - 120V, F - 208V, G - 240V, H - 277V, K - 347V)
(2) 8-32 SCREWS
REPLACEMENT HPS BALLASTS
(for fixtures with refractive optics,
includes socket assembly)
ORDERING NUMBER
V092-(*)D70S(**)R
V092-(*)G70S(**)R
V092-(*)D100S(**)R
V092-(*)G100S(**)R
V092-(*)D150S(**)R
V092-(*)G150S(**)R
REPLACEMENT MH BALLASTS
(for fixtures with refractive optics,
includes socket assembly)
ORDERING NUMBER
V092-(*)D70H(**)R
V092-(*)D100H(**)R
V092-(*)D175H(**)R
V092-(*)G175H(**)R
V092-(*)G250H(**)R
DESCRIPTION
70W HPS, MED BASE
70W HPS, MOG BASE
100W HPS, MED BASE
100W HPS, MOG BASE
150W HPS, MED BASE
150W HPS, MOG BASE
DESCRIPTION
70W MH, MED BASE
100W MH, MED BASE
175W MH, MED BASE
175W MH, MOG BASE
250W MH, MOG BASE
