SIGNIFY Hadco MainView MVGCA Series Manual

This fixture is intended for installation in accordance with the National Electrical Code and local code specifications.
Failure to adhere to these codes and instructions may result in serious injury and/or damage to the driver and void the
warranty. These instructions do not purport to cover all details or variations in equipment, nor to provide for every
possible contingency related to installation, operation, maintenance, or mounting situation. Should specific problems
occur that are not addressed by these instructions, contact your sales representative or distributor for assistance.
Retain these instructions for future reference.

SAFETY WARNING:

ALWAYS TURN FIXTURE OFF/DISCONNECT POWER BEFORE PERFORMING MAINTENANCE!
Ensure that the AC service is OFF before any installation or maintenance. Do not switch service to ON until the entire installation
is complete.

TOOLS REQUIRED:

•
Torque wrench capable of 84 in. lbs. torque (post fitter hex bolts)
•
1/2" socket wrench (#5/16-18 hex bolts)
•
1/2" wrench (#5/16-18 hex nuts)
•
1/4" wide flat screw driver (pod door and terminal block)
•
#2 phillips screw driver (light engine removal)

INSTALLATION:

1. TURN POWER OFF. Remove pod door using the flat screw driver. There is a safety cable connecting the door to
the pod allowing the door to hang. Feed the incoming power and ground wires up into the luminaire.

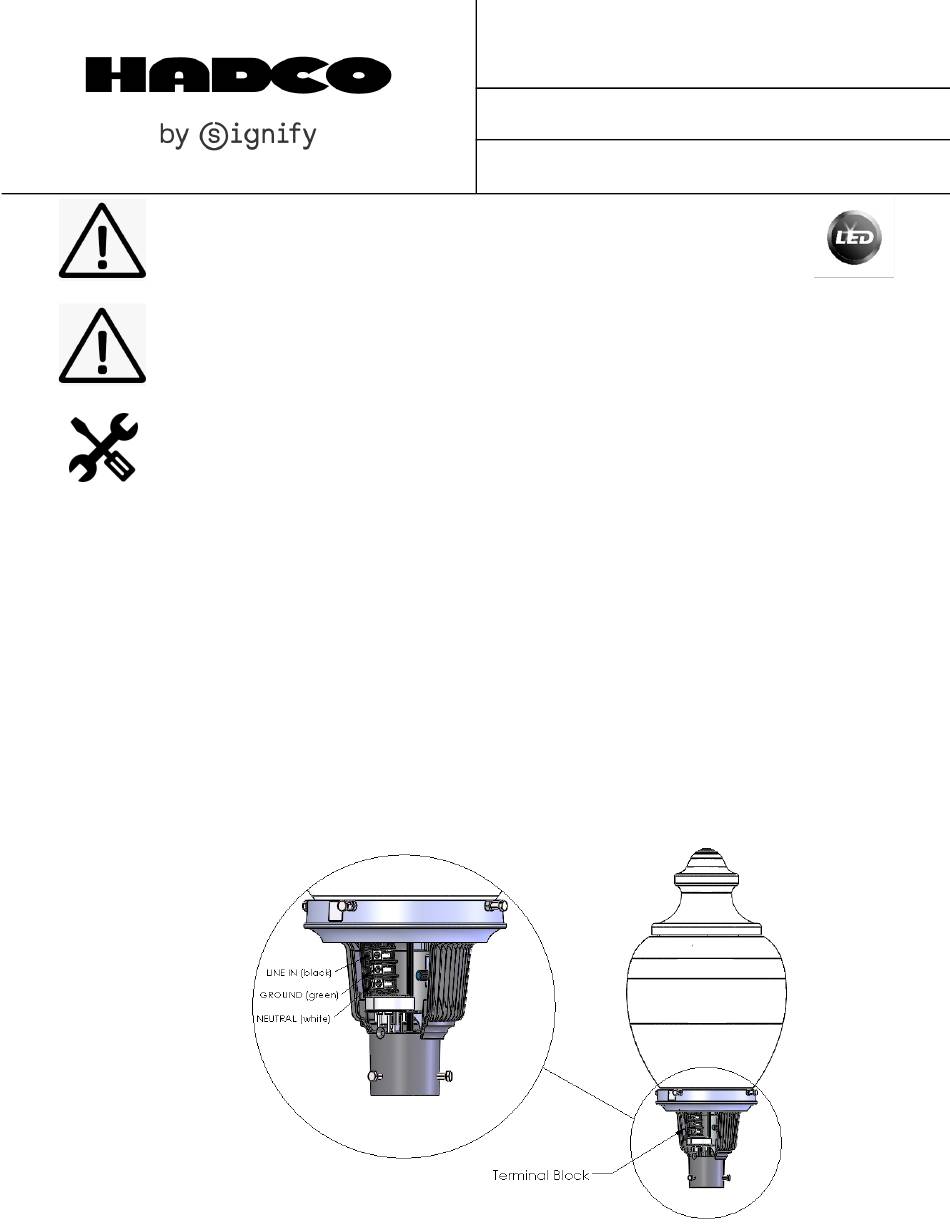

2. Install incoming power wires into terminal bock. Neutral to the neutral position, Line In to the Line in Position,
Ground to the Ground position.
3. Adjust FAWS switch (optional), position 1 is the lowest setting, position 10 is the highest setting. Factory set to
position 10.
4. Install the pod door back on to the pod and use flat screw driver and tighten captive bolt.
5. Slip luminaire's post fitter onto pole and ensure wires are not pinched.
6. Torque luminaire post fitter hex bolts to 84 in. lbs.
4/3/2020 page 1 www.hadco.com
Urban
MainView

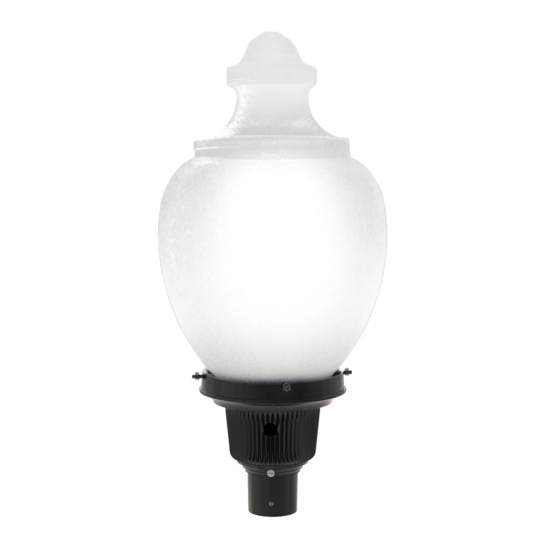

MVGCA LED Post Top
442295160211 Rev B
