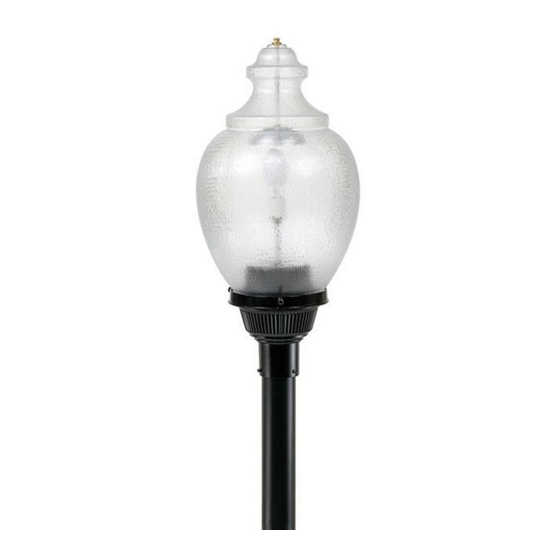

SIGNIFY HADCO V70 Installation Instructions

Signify North America Corporation
200 Franklin Square Drive
Somerset, NJ 08873
Telephone 855-486-2216
LAMP
(BY OTHERS)
BALLAST COVER
(V71 SHOWN)
CAUTION
1. The electrical power must be disconnected from the fixture and pole before installing, servicing, or
relamping the fixture.
2. These directions must be read carefully and adhered to. Failure to do so may result in injury, damage to
the fixture, and voiding the warranty.
TOOLS REQUIRED
FOR INSTALLATION & RELAMPING
1. 5/32" Allen wrench
2. Wire connectors for appropriate wire
3. Phillips head screw driver
4. 1/2" Socket wrench
This fixture is intended for installation in accordance with the National Electrical Code and local code
specifications. Failure to adhere to these codes and instructions may result in serious injury and/or damage
to the ballast and void the warranty. These instructions do not purport to cover all details or variations in
equipment, nor to provide for every possible contingency related to installation, operation, maintenance,
or mounting situation. Should specific problems occur that are not addressed by these instructions, contact
your Sales Representative or distributor for assistance. Retain these instructions for future reference.
32001206, revision F
Signify Canada Ltd.
281 Hillmount Road,
Markham, ON, Canada L6C 2S3
Telephone 800-668-9008
INSTALLATION INSTRUCTIONS:
V70,V701, V71, & V72 FIXTURES

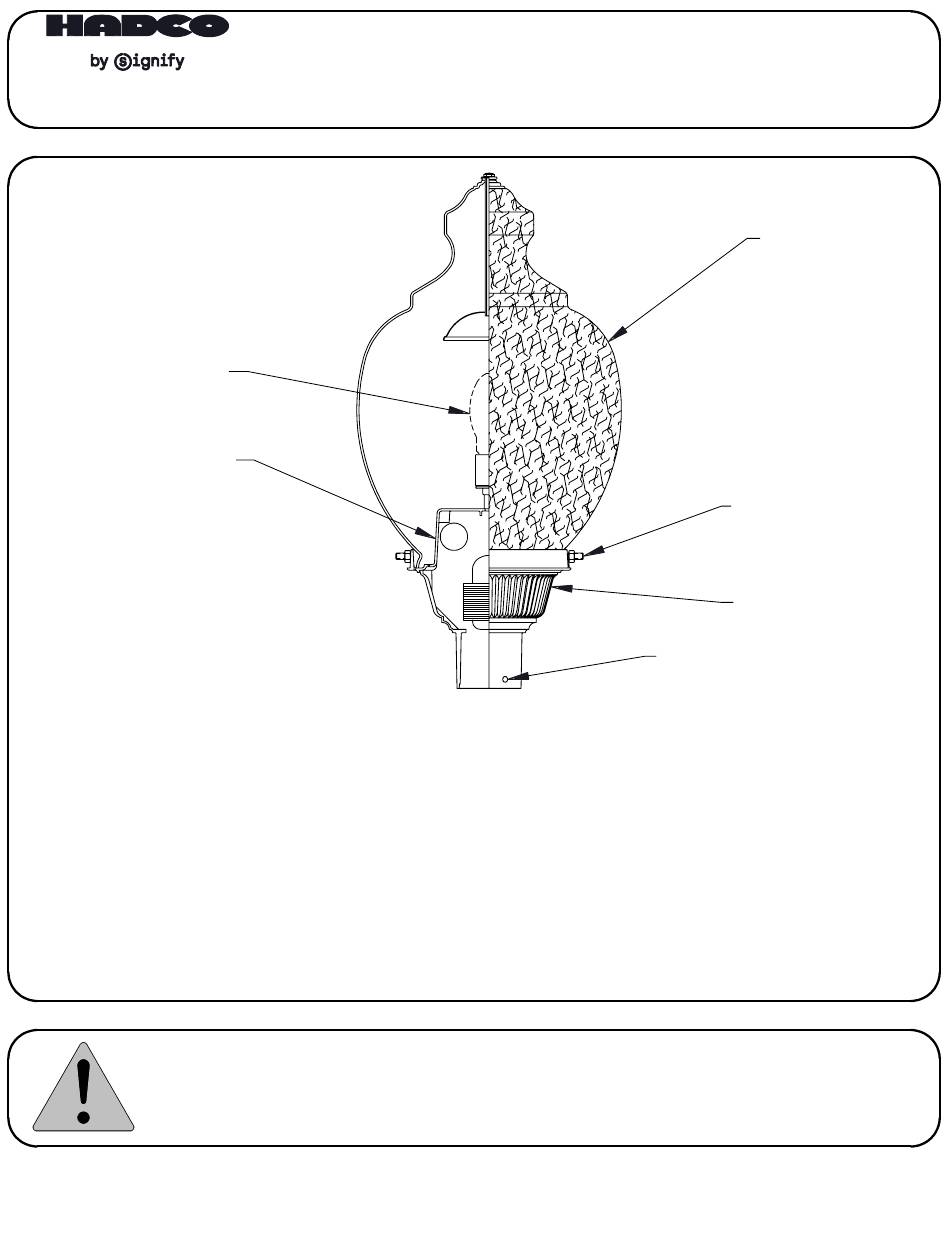

SET SCREW
FOR POST
GLOBE
SET SCREW
& LOCK NUT
FOR GLOBE
BALLAST HOUSING
page 1 of 2
