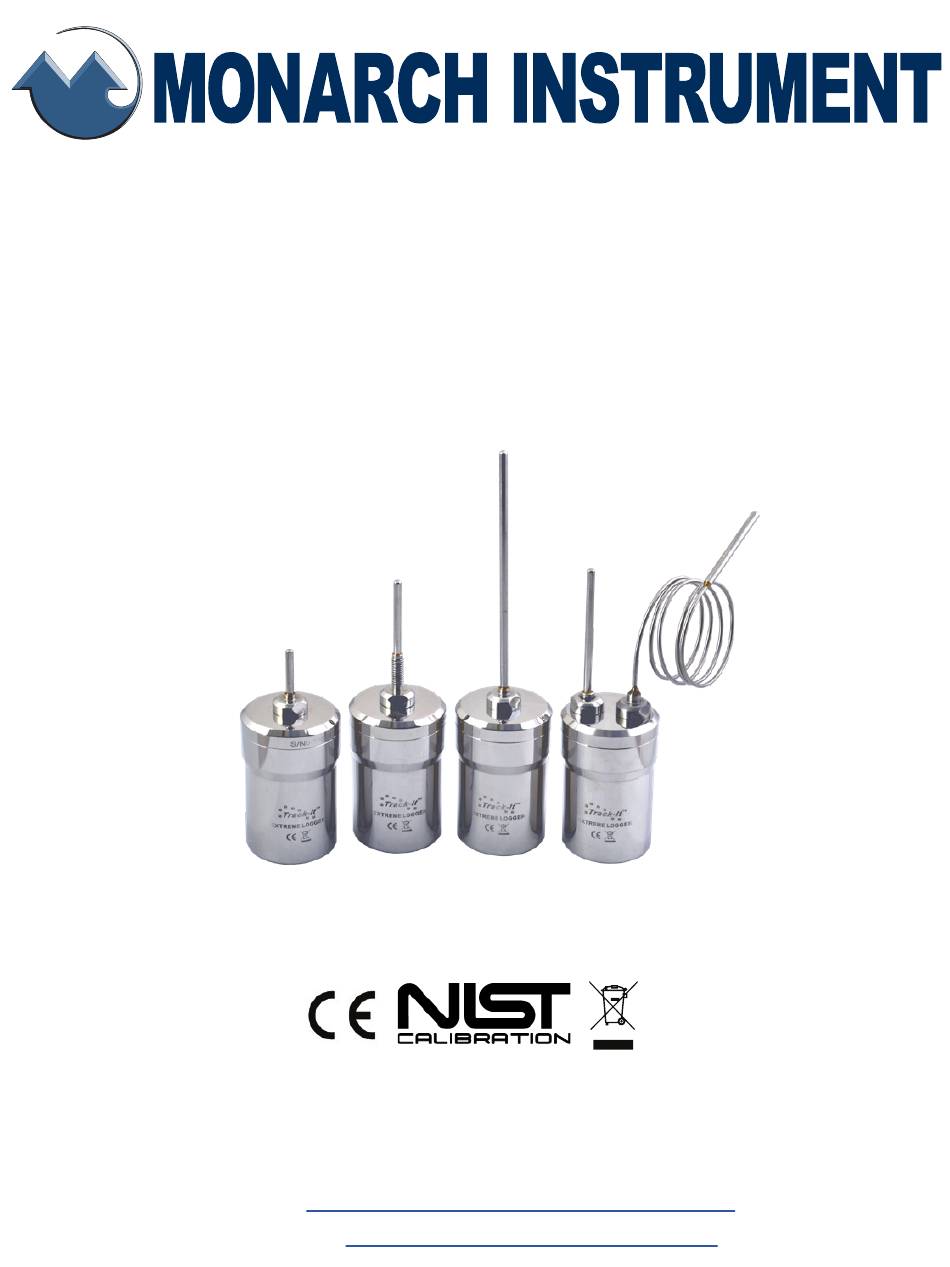

- Page 1 Instruction Manual Track-It Extreme Temperature ™ Data Loggers 15 Columbia Drive Amherst, NH 03031 USA Phone: (603) 883-3390 • Fax: (603) 886-3300 E-mail: support@monarchinstrument.com Website: www.monarchinstrument.com...
-
Page 2: Safeguards And Precautions
SAFEGUARDS AND PRECAUTIONS The Track-It™ Extreme Temperature Loggers are designed to be used in extremely hot or cold environments. Use proper protective equipment. Wait until the unit has reached typical safe-to-touch standards before touching with bare hands. 1. Read and follow all instructions in this manual carefully, and retain this manual for future reference. -
Page 3: Table Of Contents
TABLE OF CONTENTS: 1.0 OVERVIEW ..................1 2.0 GETTING STARTED ................2 2.1 Install USB Driver and Track-It™ DataLogger Software....2 2.2 Connect Reader and Start Track-It™ DataLogger Software..2 2.3 Configure Logger ..............3 3.0 EXTREME LOGGER READER ............3 4.0 REPLACING THE BATTERY ...............4 4.1 Battery Disposal ...............6... -
Page 4: Overview
Logger Reader without opening the logger, so the housing’s long-term integrity is ensured. Once you open Track-It™ DataLogger Software on your PC and the Reader is connected, the software will automatically identify the logger, and you can change the default settings as desired. Set the unit up to start or stop recording immediately, at a predetermined time and date, or only at specific temperature values. -
Page 5: Getting Started
2.0 GETTING STARTED 2.1 Install USB Driver and Track-It™ DataLogger Software CAUTION: Do NOT plug the Reader into your PC USB port until AFTER the USB driver and Track-It™ DataLogger Software have been installed. Download Track-It™ DataLogger Software from the link below: http://www.monarchserver.com/Files/Software/Track-It_Software. -
Page 6: Configure Logger
Insert the Track-It™ logger into the Reader. Start the Track-It™ DataLogger Software by double-clicking the Track-It icon on your PC desktop or from the Start menu. If the USB driver installed properly, you will see Device Connected displayed in the lower right-hand corner of the Track-It™... -
Page 7: Replacing The Battery
LOGGER IS EXTREMELY HOT OR COLD. Allow the logger to reach typical safe-to-touch standards before inserting the logger into the Reader. Run Track-It™ DataLogger Software. The software will automatically identify the logger. Whenever the software is communicating with the logger, the READY LED will light amber. - Page 8 Insert the battery following the battery polarity as shown in Figure 4. Use only a 3B5700 ½ AA Lithium Sulfuryl Chloride 3.9V 800mAh High Temperature (150 °C) battery. (Monarch PN: 5396-9934) Refer to section 4.1 Battery Disposal for proper disposal of the used ...
-
Page 9: Battery Disposal
4.1 Battery Disposal Track-It™ Extreme Temperature Loggers use (1) 3B5700 ½ AA Lithium Sulfuryl Chloride 3.9V 800mAh High Temperature (150 °C) battery. DO NOT DISPOSE of the lithium battery as unsorted municipal waste. The battery needs to be RECYCLED in accordance with local regulations. The battery should be sent to a recycling center or returned to the factory using appropriate shipping methods. -
Page 10: Compliance
Real-Time Clock Reader with USB connection; no need to open Logger to Communication read data or program Track-It DataLogger Software — program device, view data Software (historic or real-time), plot data, export to Excel™ Environmental: -58° to 302 °F (-50° to +150 °C) Temp. -
Page 11: Dimensions
Replacement O-ring Seals 5396-9931 Set of 3 replacement o-rings 3 ft. USB Extension Cable 5396-9901 Extension cable for use with all Track-It loggers Mini USB Cable 5396-9911 Replacement USB 2.0 to 2.0 mini 6 ft cable Track-It Software on CD... - Page 12 Measure ● Monitor ● Maintain Monarch Instrument is committed to excellence and quality in manufacturing, sales, and service. Track-It ™ Data Loggers Panel Tachometers Portable Tachometers Frequency Portable Strobes Fixed Mounted Converters Strobes Speed Sensors DataChart ™ Paperless Recorders 15 Columbia Drive, Amherst NH 03031 USA Tel.: (603) 883-3390 // (800) 999-3390...
