MONARCH INSTRUMENT Track-It Instruction Manual
Extreme temperature data logger
Hide thumbs
Also See for Track-It:
- Instruction manual (27 pages) ,
- User manual (2 pages) ,
- Quick start manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for MONARCH INSTRUMENT Track-It
Summary of Contents for MONARCH INSTRUMENT Track-It

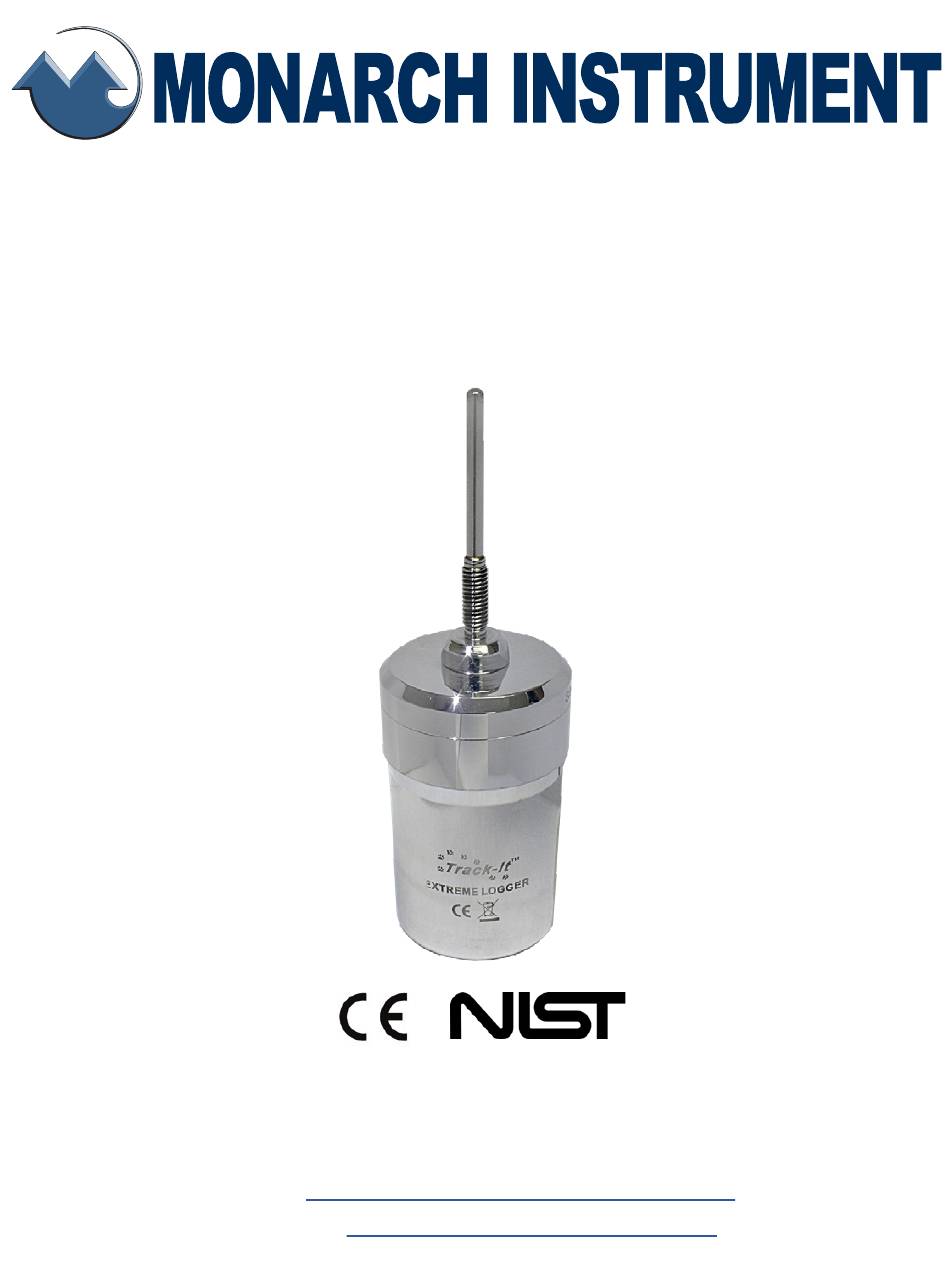

- Page 1 Instruction Manual Track-It Extreme Temperature ™ Data Logger 15 Columbia Drive Amherst, NH 03031 USA Phone: (603) 883-3390 • Fax: (603) 886-3300 E-mail: support@monarchinstrument.com Website: www.monarchinstrument.com...
- Page 2 Warranty Registration and Extended Warranty Coverage information is available online at www.monarchinstrument.com. Track-It is a trademark of Monarch Instrument. Excel is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ............... 1 GETTING STARTED ............1 2.1 Install USB Driver and Track-It™ Software ....1 2.2 Connect Reader and Start Track-It Software .... 2 2.3 Configure Logger ............. 3 LOGGER READER .............. 3 REPLACING THE BATTERY ..........4 SPECIFICATIONS ............... -
Page 4: Introduction
DIN ISO 17665 for moist heat (saturated steam) sterilization of medical products. 2.0 GETTING STARTED 2.1 Install USB Driver and Track-It™ Software CAUTION: Do NOT plug the Reader into the USB port until AFTER the USB driver and Track-It Software have been installed. -
Page 5: Connect Reader And Start Track-It Software
If the Found New Hardware Wizard appears, follow the prompts to complete the installation. ▷ Insert the Track-It logger into the Reader. Start the Track-It Software by double-clicking the Track-It icon on your PC desktop or from the Start menu. -
Page 6: Configure Logger
▷ Plug the Reader into the PC; the ON LED will light (Figure 1 below). ▷ Insert the logger into the base; the READY LED will light green (Figure 2 below). ▷ Run the Track-It Software. Figure 1: Reader is plugged into PC. Figure 2: Extreme inserted the Reader. -
Page 7: Replacing The Battery
4.0 REPLACING THE BATTERY To replace the battery, the top or “lid” of the logger enclosure needs to be unscrewed (Figure 3) from the bottom. There are two flats on the “lid” to facilitate the use of a wrench. Once exposed, the battery may be removed and replaced. -
Page 8: Specifications
CE compliant; Low Voltage Directive (LVD) 2014/35/EU Electromagnetic Compatibility Directive (EMC) 2014/30/ Compliance Restriction of Hazardous Substances (RoHS 3) Directive 2015/863/EU Track-It Software — program device, view data (historic or Software real-time), plot data, export to Excel™ FDA Regulation 21CFR Part 11 compliant... -
Page 9: Dimensions
5.0 SPECIFICATIONS* continued Environmental: Temp. Range -58° to 302°F (-50° to +150°C) Humidity 0 to 100% condensing Pressure 0 to 9 bar (0 to 130 psi) Submersion IP68 – 1.5m (~ 5 ft.) of static water indefinitely 3B5700 ½ AA lithium sulfuryl chloride 3.9V 800 mAh rated 150°C; field Battery replaceable (Monarch PN: 5396-9934) Life: up to 2 years typical @ 1 minute sample rate (@20°C) -
Page 10: Accessories
Replacement O-Ring Seals set of 3 PN: 5396-9931 PN: 5396-9933 Mini USB Cable 3 Ft. USB Extension Cable PN: 5396-9901 PN: 5396-9911 Track-It Software on CD Kit Case for Track-It Data Logger PN: 5396-9902 PN: 5396-9918 For details, see Accessories webpage. - Page 11 This page intentionally left blank.
- Page 12 The Professional’s Choice Monarch Instrument is committed to excellence and quality in manufacturing, sales, and service. ™ Track-It Data Loggers Panel Tachometers Portable Tachometers Portable Strobes Frequency Fixed Mounted Converters Strobes Speed Sensors DataChart ™ Paperless Recorders 15 Columbia Drive, Amherst NH 03031 USA Tel.: (603) 883-3390 // Fax: (603) 883-3390...
