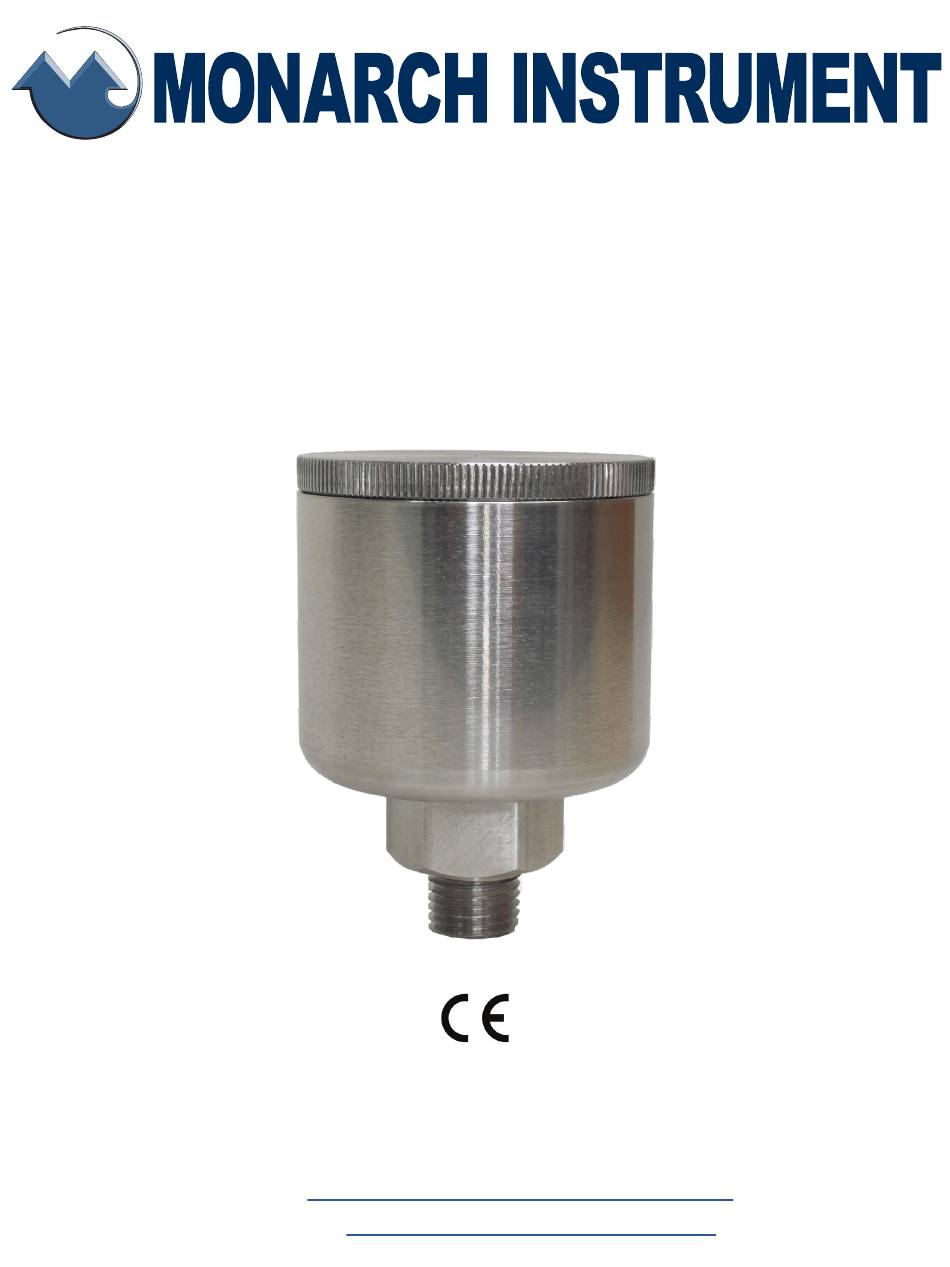

- Page 1 Instruction Manual Track-It Pressure/Temp Vacuum/Temp ™ Data Logger 15 Columbia Drive Amherst, NH 03031 USA Phone: (603) 883-3390 • Fax: (603) 886-3300 E-mail: support@monarchinstrument.com Website: www.monarchinstrument.com...
- Page 2 Warranty Registration and Extended Warranty Coverage information is available online at www.monarchinstrument.com. Track-It is a trademark of Monarch Instrument. Android and Google Play are trademarks of Google Inc. The Android robot is reproduced or modified from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License.
-
Page 3: Table Of Contents
TABLE OF CONTENTS: 1.0 DESCRIPTION ................1 2.0 TRACK-IT™ DATALOGGER SOFTWARE INSTALLATION .....2 3.0 TRACK-IT™ TRANSPORT APP ...........2 4.0 INSTALLATION .................3 5.0 INTERNAL CONTROL PANEL .............3 5.1 Pushbutton/LED Functionality ..........3 5.1.1 To Check Status ............3 5.1.2 To Change State ............4 5.2 USB Port (Serial Communication) .........4 5.3 Battery ................5 6.0 TRACK-IT™... -
Page 4: Description
1.0 DESCRIPTION Track-It™ Pressure/Temperature Vacuum/ Temperature Loggers battery-powered, standalone, watertight data loggers that can record up to 64.000 samples. They can be set to record both pressure and temperature or vacuum and temperature or either parameter alone to maximize data storage space. The onboard data storage is nonvolatile so data will not be lost in the event of a depleted battery. -
Page 5: Track-It™ Datalogger Software Installation
2.0 TRACK-IT™ DATALOGGER SOFTWARE INSTALLATION IMPORTANT: Before using your Track-It Data Logger, you must first download and install the USB Drivers and DataLogger Software. Please refer to the Quick Start Guide that was provided with your Data Logger, or you can download the Quick Start Guide. -
Page 6: Installation
4.0 INSTALLATION The logger can be ordered with various pressure sensors to cover most applications. Pressure ranges up to 5800 PSI have a ¼″ male NPT thread intended to screw into the pressure source. Ranges 8700 to 14,500 PSI use ½″ NPT. Make sure to use suitable tape or thread sealant/dope on the threads before inserting the Logger into the port. -
Page 7: To Change State
5.1.2 To Change State Change Record State (on/off) Press and hold button, release when LED turns steady green Reset Alarm Indication Press and hold button, release when LED turns steady red No Change Press and hold button, release after LED goes off The table below summarizes the push-button / LED functionality. -
Page 8: Battery
5.3 Battery Track-It™ Pressure/Temp and Vacuum/Temp Data Loggers come with a 1/2AA Lithium Thionyl Chloride 3.6 V non-rechargeable battery installed. Refer to section 7.0 REPLACING THE BATTERY for more information. 6.0 TRACK-IT™ DATALOGGER SOFTWARE - LOGGER SPECIFIC The Track-It™ DataLogger Software runs on a PC and allows the user to connect the logger through a USB connection to program the logger or review the data. -
Page 9: Input Setup
6.2 Input Setup Under the Device Setup tab, select the Input tab and the Chan 1 tab. The Pressure Channel Type will be listed as set in Preferences (see section Preferences). While the Pressure channel can be disabled, it is not recommended. Note that selecting anything other than Instantaneous for Sample Mode (the Logger only takes a reading at the Record Rate) will cause the Logger to take readings at the highest sample rate and will have an adverse effect... -
Page 10: Replacing The Battery
7.0 REPLACING THE BATTERY Replace the battery as needed with type: ER14250, 1/2AA 3 Lithium Thionyl Chloride 3.6V. Remove threaded cap and insert battery as shown in diagram right (observe polarity). 8.0 O-RING O-ring Track-It Pressure/Vacuum Temperature Loggers come directly from the factory with high quality O-rings that have been properly installed. -
Page 11: Specifications
9.0 SPECIFICATIONS Track-It™ Pressure/Temp Vacuum/Temp Specifications* Data Logger General: Record: User-configured 1 every 2 seconds to 1 every 24 hours Sample Rates Record: 32,000 or 64,000 (dependent upon setup) No. of Samples Two independent triggers Record Trigger Multiple trigger modes: Instantaneous, button control, on alarm, time and date (start and stop), day of week Fill to end of memory or cyclic, number of samples, Record Mode... - Page 12 Track-It™ Pressure/Temp Vacuum/Temp Specifications* Data Logger Measurement: 0-3, 0-35, 0-150, 0-350, 0-550, 0-2000, 0-5800, 0-8700, Pressure Ranges 0-14,500 PSI Vacuum Ranges 0 to -380 Torr, 0 to -760 Torr Accuracy ±0.25% FS Resolution 0.01% Repeatability ±0.5% Overpressure 1.5X max Rating Port Connection ¼″...
-
Page 13: Compliance
9.1 Compliance 9.1.1 Battery Compliance The Lithium battery used in this product meets the requirements of UN DOT 38.3. Tested by XenoEnergy Co., Ltd (Report Xeno Q110612) 9.1.2 EU Declaration of Conformity CE Compliant. Please visit our website’s Certificate, Regulatory Compliance and CE Declaration page to download our EU Declaration of Conformity for this product... -
Page 14: Accessories
10.0 ACCESSORIES For additional accessories and details, see webpage. Model/Description Replacement lithium 1/2AA 1.2 AH battery 5396-9906 (ER14250) 5396-9908 Replacement O-Ring Seals, 2-pack 5396-9901 USB Extension Cable, 3 ft. Replacement Mini USB Cable 5396-9911 USB 2.0 to USB 2.0, 6 ft. cable 5396-9913 USB on-the-go cable for Android devices 5396-9902... - Page 15 The Professional’s Choice Monarch Instrument is committed to excellence and quality in manufacturing, sales, and service. ™ Track-It Data Loggers Panel Tachometers Portable Tachometers Frequency Portable Strobes Fixed Mounted Converters Strobes ™ Speed Sensors DataChart Paperless Recorders 15 Columbia Drive, Amherst NH 03031 USA Tel.: (603) 883-3390 // Fax (603) 886-3300...
