MONARCH INSTRUMENT Track-It Quick Start Manual

QUICK START GUIDE
2

Install data logger battery (if required)

Install the battery that was supplied with your Track-It
Refer to the diagrams below for installation. Certain models will
have battery pre-installed.
Remove threaded end Remove threaded cap
cap with coin and insert and insert battery as
battery as shown
Rugged Temp
3.6V 1/2AA Lithium
High Temperature
Para la traducción española, ver CD
Für die deutsche Übersetzung, siehe CD
Pour la traduction française, voir le CD
Per la traduzione italiana, vedi CD
TM
data logger.
Batteries in "Thumb
Drive" type loggers are
shown pre-installed

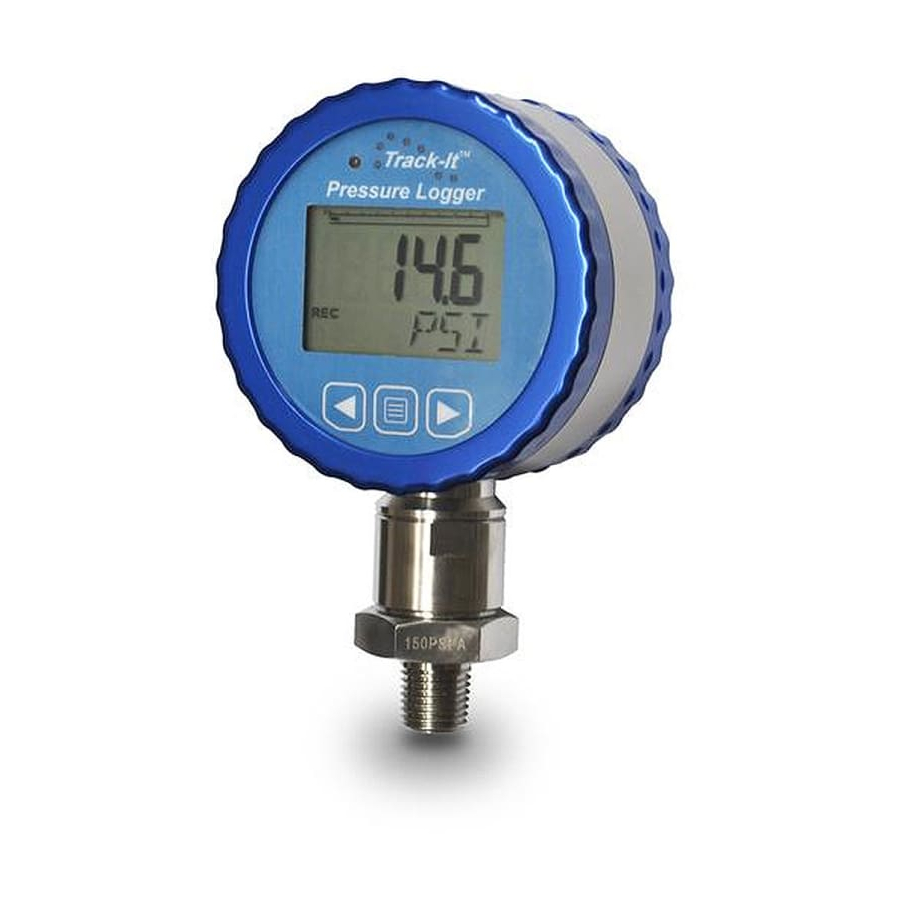

Pressure/Temp Temp, RHTemp, DC I/V,
3.6V 1/2AA AC Event
3V CR2032 coin cell
Or 3.6V EF651625
(LTC-7PN)
1
Install USB driver and Track-It
IMPORTANT! Do NOT plug the Track-It Data Logger into the USB
port until AFTER the USB Drivers and Track-It Software have
been installed.
Insert the Installation CD into the Drive on your PC. If the installation
does not begin automatically use Windows Explorer to navigate to the
CD drive, double click "CD_Start.exe", click "Install the USB Driver",
Click "Install Software" and
follow the instructions to com-
plete the installation. The
Software is now installed and
ready to use.
3
Connect data logger and Start Track-It
Plug the Track-It logger into an available USB port on the PC. Some
models plug directly into the USB port others connect to the USB port
with a cable (which is supplied). If the Found New Hardware Wizard
appears, follow the prompts to complete the installation.
Start the Track-It Software by double clicking the Track-It
icon (shown at right) on your PC or from the Start menu.
TM
Software
and follow the prompts. Click
"Continue Anyway" if you see
the warning message about
software installation.
TM
Software
