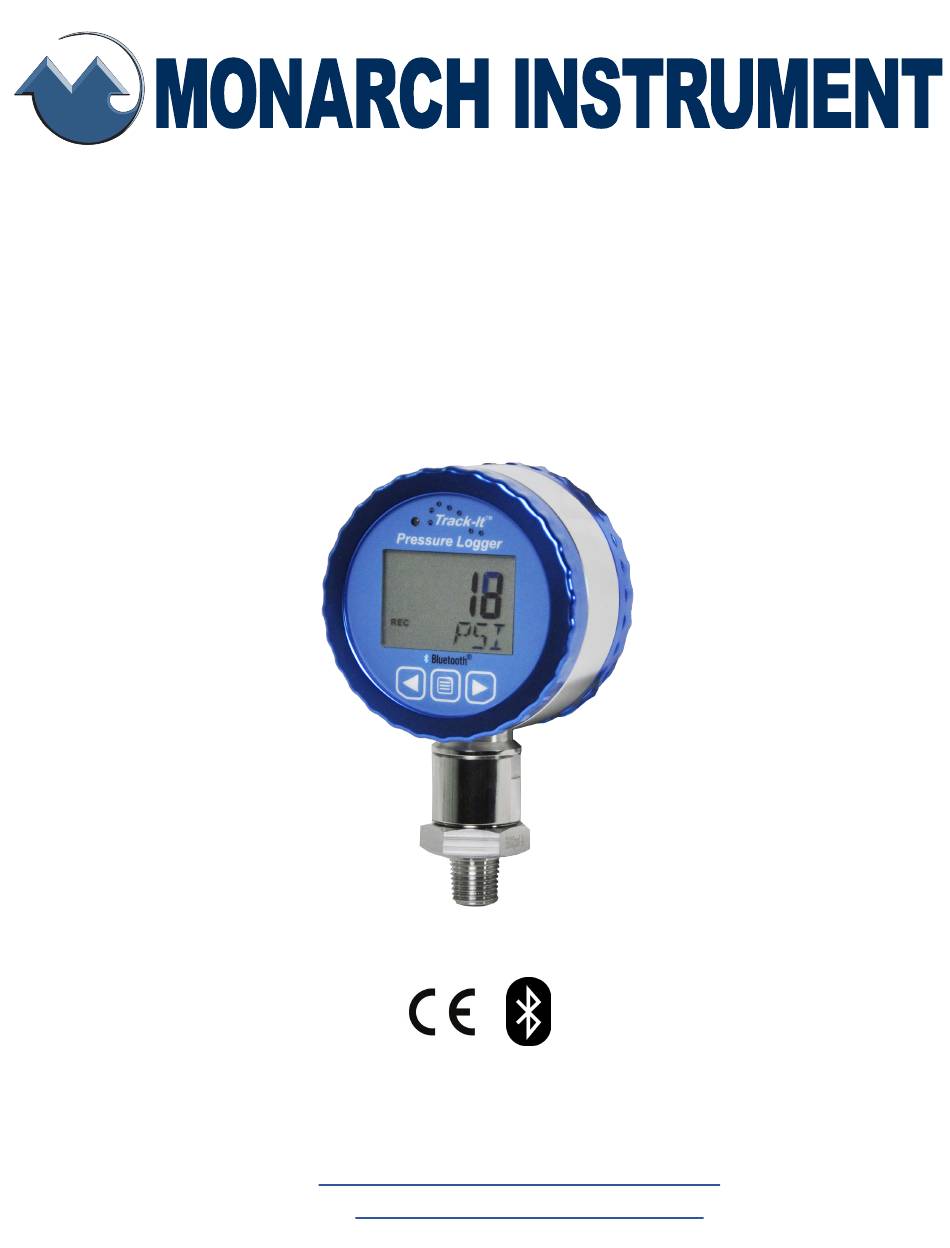

- Page 1 Instruction Manual Track-It Pressure/Temp Vacuum/Temp ™ Data Logger with Display 15 Columbia Drive Amherst, NH 03031 USA Phone: (603) 883-3390 • Fax: (603) 886-3300 E-mail: support@monarchinstrument.com Website: www.monarchinstrument.com...
- Page 2 Warranty Registration and Extended Warranty Coverage information is available online at www.monarchinstrument.com. Track-It is a trademark of Monarch Instrument. Android and Google Play are trademarks of Google Inc. The Android robot is reproduced or modified from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License.
-
Page 3: Table Of Contents
TABLE OF CONTENTS: 1.0 DESCRIPTION ..................1 2.0 TRACK-IT™ DATALOGGER SOFTWARE INSTALLATION .....2 3.0 FRONT PANEL ...................2 3.1 LCD ....................2 3.2 LED ....................4 3.3 Buttons and MENU ..............4 3.3.1 Menu Modes ................4 3.3.2 Menu Options ..............5 4.0 BACK PANEL ..................6 4.1 Vent .....................7 4.2 USB Connection ................7 5.0 SETUP ....................7 6.0 TRACK-IT™... -
Page 4: Description
1.0 DESCRIPTION Track-It™ Pressure/Temperature Vacuum/ Temperature Data Loggers with Display are battery- powered, standalone, watertight data loggers that can record up to 130.000 samples. They can be set to record both pressure and temperature or vacuum and temperature or pressure alone to maximize data storage space. -
Page 5: Track-It™ Datalogger Software Installation
2.0 TRACK-IT™ DATALOGGER SOFTWARE INSTALLATION IMPORTANT: Before using your Track-It Data Logger, you must first download and install the USB Drivers and Track-It™ DataLogger Software. Please refer to the Quick Start Guide that was provided with your Data Logger, or you can download the Quick Start Guide. - Page 6 optionally backlit; the backlight is initiated for 5 seconds by pressing any button. The backlight will also flash several times when a Bluetooth LE connection is established with the logger, if applicable. There is a bar graph at the top of the display (which can be turned off by the user) giving an analog indication of values relative to 100% which is the full-scale value of the sensor.
-
Page 7: Led
Bar graph shows percentage of full scale (0 to 100%) of the value indicated. This can indicate Pressure, Temperature or percentage of memory used when recording. Note that in the Pressure Offset mode, the bar graph will show the percentage of full scale of the absolute value not the offset value currently displayed. -
Page 8: Menu Options
The Normal menu is accessed by pressing the MENU button. The Admin menu is accessed by pressing and holding the left arrow button then pressing the MENU button. In the menu mode, the left arrow button is the escape or exit button, the ... -
Page 9: Back Panel
Engineering Units Unit – Used to change the engineering units for the pressure display. The lower line will show the current engineering units. Use the to scroll through the available units and press to accept. Not all units are available depending on the full-scale value of the sensor. -
Page 10: Vent
4.1 Vent All loggers have a vent hole in the back panel. This vent is especially important for any gauge (PSIG) sensor to allow ventilation to atmospheric pressure. DO NOT cover or block the vent or the logger may read incorrectly. DO NOT insert anything into the vent hole as it may damage the waterproof membrane and compromise the IP rating. -
Page 11: Input Setup
For Absolute pressure ranges, Use Pressure Offset can be enabled to mathematically subtract atmospheric pressure providing gauge values. For more information about Absolute versus Gauge measurements, refer to our App Note found here: click to link. For Vacuum/Temperature Loggers, the user can decide to Show Vacuum Positive (or Negative if not checked). - Page 12 The Display List column shows the functions that are available to be displayed on the logger and the LCD Display column shows the functions that will be displayed on the logger. The user can move the options between the columns by selecting the option (clicking on it) and using the arrow keys.
-
Page 13: Menu Setup
6.4 Menu Setup Under the Device Setup tab select the Menu tab. This setting allows the user to determine which menu functions appear in the Normal Menu and which appear in the Admin Menu. Menu items will appear in the logger menus in the order of top to bottom in the below lists. By highlighting a menu item (clicking on it) the user can manipulate its position using the arrow buttons. - Page 14 A Bluetooth logger must be advertising to make a connection with a compatible Bluetooth device. Advertising is useful by allowing devices to find and connect to the logger remotely without needing to access the physical logger. Advertising can also be started directly from the logger, which will allow you to connect without having the advertising enabled.
-
Page 15: Installation
7.0 INSTALLATION Pressure/Temperature or Vacuum/Temperature Data Loggers with Display can be ordered with various pressure sensors to cover most applications. Pressure ranges up to 5800 PSI have a ¼" male NPT thread intended to screw into the pressure source. Ranges over 5800 PSI use ½" NPT. Make sure to use suitable tape or thread sealant/ dope on the threads before inserting the logger into the port. -
Page 16: Connection
8.1 Connection Make sure the logger is advertising (for Bluetooth LE connection) or connected via a USB OTG cable (for USB connection) and then select the CONNECT button on the bottom left of the App. The App will ask if you want to connect using Bluetooth or USB/OTG. -
Page 17: Uploading Data
8.2 Uploading Data Select UPLOAD DATA to transfer the data from the logger to the Android device. If the logger is recording, the App will ask if you want to stop recording. Select STOP to continue. Next select the WRITE TO FILE button to save this data to a data file. -
Page 18: Bluetooth® Le Communication
9.0 BLUETOOTH® LE COMMUNICATION Track-It™ Pressure Data Loggers with firmware revision 3.0 and later support Bluetooth LE communication. Bluetooth connection can be made through an Android device or PC with Windows 10 and later. The PC must have Bluetooth enabled to work with the logger by Bluetooth LE. -
Page 19: Battery
10.0 BATTERY The unit operates off a 1/2 AA 3.6V lithium battery located behind the back panel. To access the battery, unscrew the back blue bezel ring and gently lift off the back panel and associated electronics. Gently extract the battery and replace as needed. NOTE POLARITY WHEN REPLACING –... -
Page 20: Specifications
12.0 SPECIFICATIONS Track-It™ Pressure/Temp Vacuum/Temp Specifications* Data Logger with Display General: Record: User-configured 10 times per second up to 1 every 24 hours Sample Rates Record: 130,000 (dependent upon setup) No. of Samples Two independent triggers Record Trigger: Multiple trigger modes: Instantaneous, button control, on alarm, time and date (start and stop), day of week Record Mode: Fill to end of memory or cyclic, number of samples, time duration... -
Page 21: Compliance
Track-It™ Pressure/Temp Vacuum/Temp Specifications* Data Logger with Display Measurement: Pressure 0-35, 0-150, 0-350, 0-550, 0-2000, 0-5800 PSI (Absolute or Gauge) Ranges: 0-3, 0-8700, 0-14500 PSI (Gauge only) Vacuum Ranges: 0 to -380 Torr, 0 to -760 Torr, 760 to 0 Torr, 760 to -760 Torr Accuracy: ±0.25% FS Resolution:... -
Page 22: Accessories
13.0 ACCESSORIES For additional accessories and details, see webpage. Model/Description 5396-9906 Replacement lithium 1/2AA 1.2 AH battery (ER14250) 5396-9908 Replacement O-Ring Seals, 2-pack 5396-9901 USB Extension Cable, 3 ft. Replacement Mini USB Cable 5396-9911 USB 2.0 to USB 2.0, 6 ft. cable 5396-9913 USB on-the-go cable for Android devices 5396-9902 Track-It™... - Page 23 The Professional’s Choice Monarch Instrument is committed to excellence and quality in manufacturing, sales, and service. ™ Track-It Data Loggers Panel Tachometers Portable Tachometers Frequency Portable Strobes Fixed Mounted Converters Strobes ™ Speed Sensors DataChart Paperless Recorders 15 Columbia Drive, Amherst NH 03031 USA Tel.: (603) 883-3390 // 800-999-3390...
