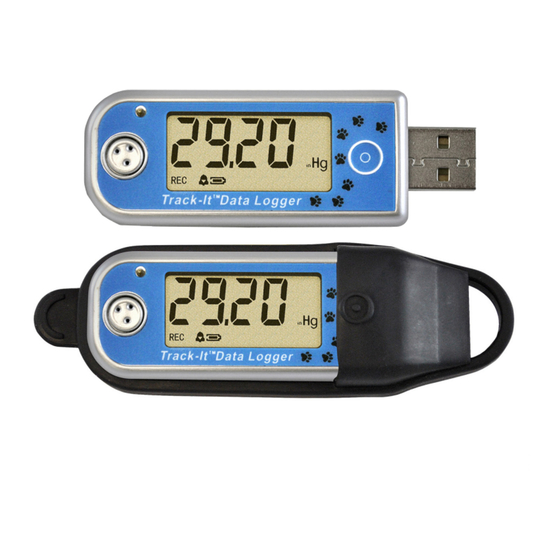

MONARCH INSTRUMENT Track-It Instruction Manual
Usb barometric pressure / altitude / temp data logger
Hide thumbs
Also See for Track-It:
- Instruction manual (27 pages) ,
- User manual (2 pages) ,
- Quick start manual (2 pages)
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MONARCH INSTRUMENT Track-It
Summary of Contents for MONARCH INSTRUMENT Track-It

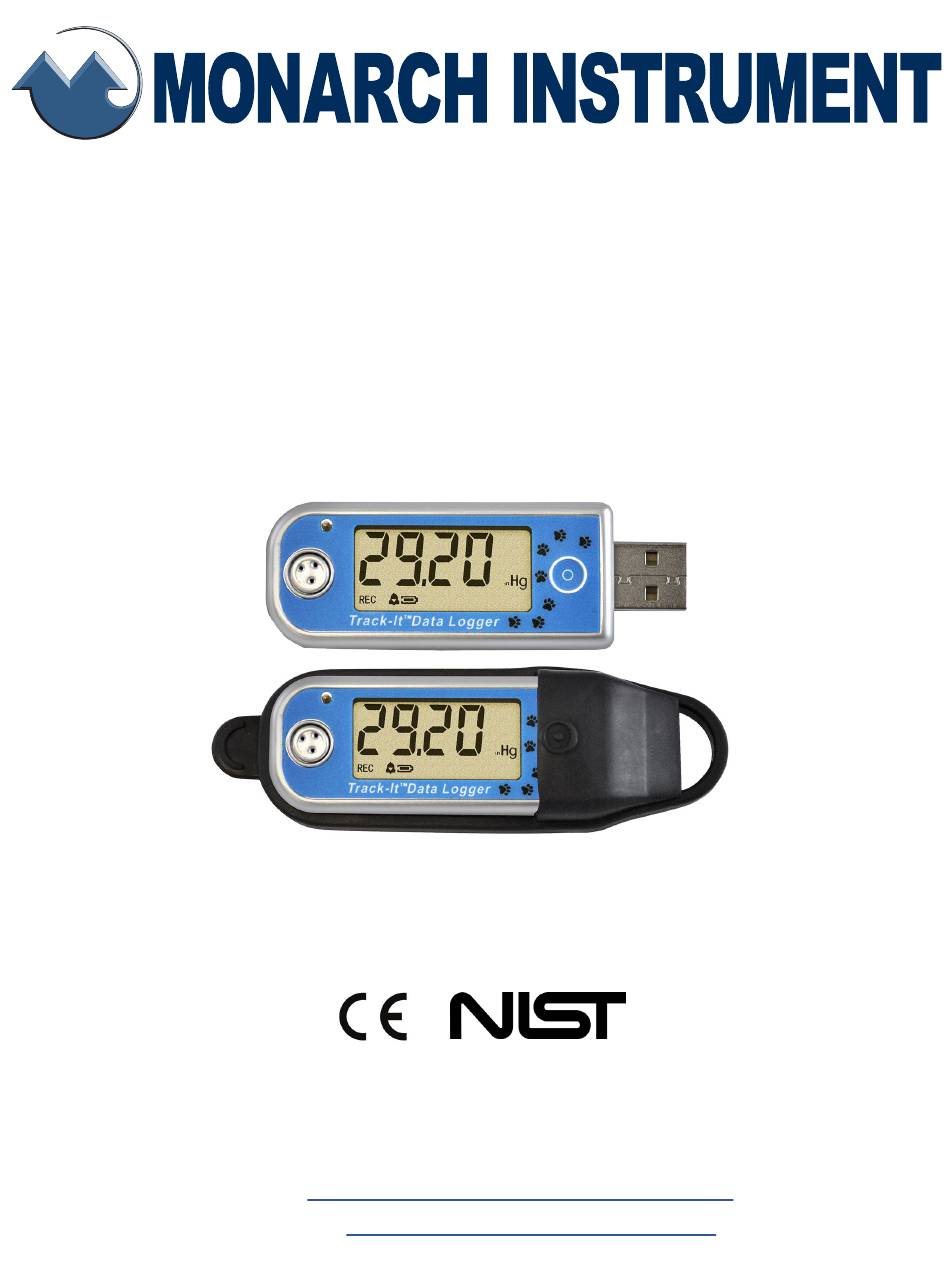

- Page 1 Instruction Manual Track-It USB Barometric ™ Pressure/Altitude/Temp Data Logger 15 Columbia Drive Amherst, NH 03031 USA Phone: (603) 883-3390 • Fax: (603) 886-3300 E-mail: support@monarchinstrument.com Website: www.monarchinstrument.com...
- Page 2 Warranty Registration and Extended Warranty Coverage information is available online at www.monarchinstrument.com. Track-It is a trademark of Monarch Instrument. Excel is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
-
Page 3: Table Of Contents
TABLE OF CONTENTS: 1.0 DESCRIPTION ................1 2.0 TRACK-IT™ DATALOGGER SOFTWARE INSTALLATION .....1 3.0 TRACK-IT™ DATALOGGER SOFTWARE – LOGGER SPECIFIC ..2 3.1 Preferences .................2 3.2 Input Setup ................3 3.3 Display Setup ...............3 4.0 LCD ....................4 4.1 Real-Time Values ..............4 4.2 Time and Date ..............4 4.3 Memory Used ..............5... -
Page 4: Description
The unit is easily configured using the downloadable Track-It™ DataLogger Software. Simply plug the unit directly into a USB port on the PC to allow for programming, upload of data, and to display data in real time. -
Page 5: Track-It™ Datalogger Software - Logger Specific
3.0 TRACK-IT™ DATALOGGER SOFTWARE – LOGGER SPECIFIC The Track-It DataLogger Software runs on a PC and allows the user to connect the logger through a USB connection to program the logger or review the data. The operation of the Track-It DataLogger Software is described in its own manual which is accessed via the Help –... -
Page 6: Input Setup
3.2 Input Setup Under the Device Setup tab, select the Input tab and the Chan 1 tab. Select Internal Channel Type to use the device’s built-in sensor and select an engineering unit which will be the default engineering units that will be displayed on the Logger LCD. -
Page 7: Lcd
4.0 LCD The LCD (Liquid Crystal Display) shows status and real-time information and is user programmable via the Track-It™ DataLogger Software. Not all segments are available in all modes. The LCD is activated when the pushbutton is pressed and will shut off after a predetermined time as programmed. -
Page 8: Memory Used
The LED is also used in conjunction with the pushbutton to indicate setup states. 6.0 PUSHBUTTON FUNCTION The pushbutton functions are programmable using Track-It™ DataLogger Software. Short press (0 - 1 second) will activate the LCD view. Successive short presses will... - Page 9 Press and hold - (1 - 2 seconds… LED flashes once ) – Releasing the button during this interval (if enabled by program) toggles record mode. If the unit is currently recording it will stop the recording. If the unit is currently NOT recording it will start recording.
-
Page 10: Analog Input
7.0 ANALOG INPUT Most Track-It Data Loggers have the ability to measure up to 2 channels of analog inputs (4-20 mA, 0-5 V dc etc) using external analog modules that plug onto the USB connector. These may be purchased from your supplier and are programmed using the Track-It™... - Page 11 There are two battery options. Replace the relevant battery, then replace the cover and the screws with washers. Coin Cell CR2032 Lithium Thionyl Chloride EF651625 3.0 V 3.6 V (LTC-7PN)
-
Page 12: Specifications
Alarms Two (2) user-programmable (High and Low) Communication Direct USB connection Track-It™ Datalogger Software — program device, view data (historic or Software real time), export to Excel-compatible format; simple and advanced modes Standard: Lithium CR2032 coin cell, 1-year life typical @ 1 minute... -
Page 13: Compliance
Resolution 0.01 kPa displayed, 0.005 kPa recorded Specifications* USB Barometric Pressure/Altitude/Temperature Data Logger Measurement (continued): -20 to +60 °C / -4 to 140 °F – Standard Battery Temperature Range -20 to +85 °C / -4 to 185 °F – Long-life Battery Accuracy ±... -
Page 14: Accessories
For details, see Accessories webpage. Long-Life Replacement Battery Replacement CR2032 Coin Cell Battery PN: 5396-9904 PN: 5396-9905 Replacement Protective Splash- USB On-the-Go Cable Proof Rubber Cover PN: 5396-9913 PN: 5396-9903 3 Ft. USB Extension Cable Track-It Software on CD PN: 5396-9901 PN: 5396-9920... - Page 15 The Professional’s Choice Monarch Instrument is committed to excellence and quality in manufacturing, sales, and service. ™ Track-It Data Loggers Panel Tachometers Portable Tachometers Portable Strobes Frequency Fixed Mounted Converters Strobes ™ Speed Sensors DataChart Paperless Recorders 15 Columbia Drive, Amherst NH 03031 USA Tel.: (603) 883-3390 // Fax: (603) 883-3390...
