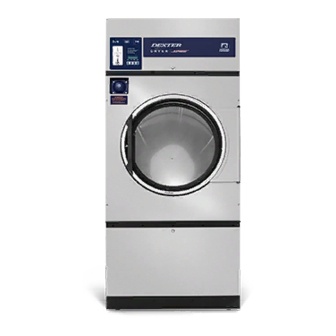

DRC55 Series Dryers (25Kg Capacity)
The dryer must not be stored or installed where it will be exposed to water and/or weather and is
suitable for use in room temperatures between 5C and 45C.
WARNING: For your safety the information in this manual must be followed to minimize
the risk of fire or explosion or to prevent property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
- WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance.
- Do not touch any electrical switch; do not use any phone in your building.
- Clear the room, building or area of all occupants.
- Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
- If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
You, the purchaser, must post in a prominent location instructions to be followed in the
event the user smells gas. Consult your local gas supplier for procedure to be followed if
the odor of gas is present.
Post the following "For Your Safety" caution in a prominent location:
Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or
any other appliance or machine.
It is important that you read this Manual and retain it for future reference.
For service or replacement parts, contact the Dexter Distributor in your area or the manufacturer.
INSTRUCTION MANUAL
for
FOR YOUR SAFETY
The Dexter Company
2211 W. Grimes
Fairfield, Iowa 52556, USA
8514-027-005
Advertisement
Related Manuals for Dexter Laundry DRC55 Series
Summary of Contents for Dexter Laundry DRC55 Series
- Page 1 It is important that you read this Manual and retain it for future reference. For service or replacement parts, contact the Dexter Distributor in your area or the manufacturer. The Dexter Company 2211 W. Grimes...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page No. Dryer Dimensions (Figure 1)....................3 Uncrating .......................... Field Assembly........................Dryer Installation....................... 5 Dryer Exhaust System (Figure 2)..................6, 7 Dryer Shutdown.........................10 Operating Instructions......................10 Preventative Maintenance....................14 Schematic/Wiring Diagrams....................17, 18 WARNINGS ABOUT USE AND OPERATION KEEP SHIELDS, GUARDS AND COVERS IN PLACE. These safety devices are provided to protect everyone from injury. -
Page 3: Dryer Dimensions (Figure 1)
FIGURE 1 - DRYER DIMENSIONS... -
Page 4: Uncrating
INSTALLATION AND OPERATING INSTRUCTIONS Note: Before installation, check that the local distribution conditions, nature of gas and pressure, and the adjustment of the appliance are compatible. UNCRATING 1. Remove cardboard container and innerpack. 2. Complete the uncrating as described in the procedure listed on the instruction sheet taped to the loading door glass. - Page 5 III. Back 18 in. (450 mm) clearance is necessary behind the belt guard to allow servicing and maintenance. IV. Front 48 in. (1200 mm) to allow use of dryer. V. Top Refer to figure labeled “Vertical Clearance Dimensions”. AB. 0 clearance at the top, 1 in. (25 mm) back from the front. However 1/4 in.
-
Page 6: Dryer Exhaust System (Figure 2)
The operation of this appliance may affect the operation of other types of gas appliances which take their air for safe combustion from the same room. All other gas appliances should be tested with the Dexter dryer in operation and all the windows and doors closed. If in doubt consult the appliance manufacturer(s). - Page 7 This appliance must be installed in accordance with the rules in force and used only in a sufficiently ventilated space. Consult instructions before installation of this appliance. GAS SYSTEM INFORMATION HEAT INPUT 38.1 kW GROSS GAS FLOW RATE 3.5 m PER HOUR BURNER PRESSURE 8.7 mbar G20 / 12.2 mbar G25...
- Page 8 CONVERSION TO LP GAS (G30): Conversion of this appliance to LP gas requires a kit supplied by the Dexter Company. Please contact your local Dexter distributor to purchase the proper conversion kit. Be sure to keep the instructions provided with the kit along with these instructions for reference.
- Page 9 If the exhaust pipe passes through a wall, a metal sleeve of slightly larger diameter should be set in the wall and the exhaust pipe passed through this sleeve. This practice is required by some local codes and is recommended in all cases to protect the wall. This type of installation should have a means provided to prevent rain and high winds from entering the exhaust when the dryer is not in use.
-
Page 10: Dryer Shutdown
dryer ducts. The main duct can be rectangular or round, provided adequate air flow is maintained. For each individual dryer, the total exhausting (main discharge duct plus duct outlet from the dryer) should not exceed the equivalent of 20 ft. (6 m) and two elbows. - Page 11 DESCRIPTION OF CONTROLS Credit for coins deposited, dryer time and temperature are controlled by an electronic control. The large digital display shows vend price of an idle dryer, time purchased after coins are deposited, temperature and program information. The three red indicator lights show the drying temperature selected. This selection may be made anytime.
- Page 12 CHANGING PROGRAM DATA Put dryer in PROGRAM mode (see “Programming Instructions”). The dryer remains in the PROGRAM mode until one of these actions occur: • The switch is actuated again. • The fifteenth step is completed, and the START switch is pushed following the fifteenth step.
