Kohler PARALLEL 23493T-4 Installation Instructions page 2

G1/2˝
74~84
150±15
212

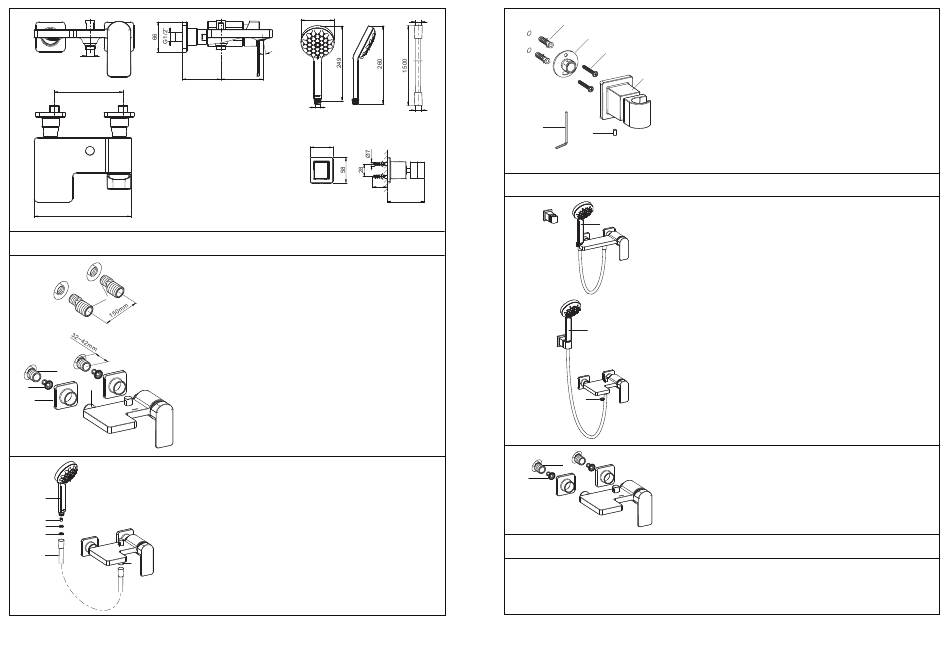

INSTALLATION
How to Install the Faucet
Cold
To perform installation, installer must provide G1/2˝ female supply
fittings, spaced 150mm apart and horizontally. The supply fittings
Hot
1
should be vertical and not beyond the finished wall. Hot supply pipe
must be located on the left. Flush the water supply pipes thoroughly
to remove debris.
Use appropriate thread sealants or thread tape on the threads of
offset connectors(1). Install two offset connectors into the hot and
cold supply pipes. Adjust the center-to-center distance between the
1
connectors to 150mm and horizontally. They should extend 32 to
42mm beyond the finished wall.
2 4
3
Put the filters(2) into the connectors(1). Apply a ring of putty on back
of the escutcheons(3). Install the escutcheons onto the supply
nuts(4). Thread the supply nuts onto the connectors and tighten by
strap wrench. Push the escutcheons until against the finished wall.
Remove any excess putty.
How to Install the Handshower
Remove the guard on the outlet connector firstly.
7
Put the check valve(5) and restrictor(6) into the handshower(7) if
5
needed.
6
8
Put the screen washer(8) into the hose(9) connector. Connect the
9
10
connector(10) and handshower with hose. Tighten all the connectors.
1348310-2A-A
Ø110 G1/2˝
10º
93
G1/2˝
G1/2˝
51
33
85
23494T-4
11
12
15
16
INSTALLATION CHECKOUT
7
7
17
1
2
CLEANING INSTRUCTIONS
All Finishes: Clean the finish with mild soap and warm water. Wipe entire surface completely dry with clean soft
cloth. Many cleaners may contain chemicals, such as ammonia, chlorine, toilet cleaner etc, which could adversely
affect the finish and are not recommended for cleaning.
Do not use abrasive cleaners or solvents on Kohler faucets and fittings.
2
1348310-2A-A
How to Install the Bracket
Determine a suitable location on the finished wall to install the
bracket, avoiding buried cables and pipes in the wall.
13
Mark mounting locations of the bracket base(12) on the wall
according to the dimension. Drill two holes vertically in the finished
14
wall according to the anchors(11) diameter. Install the anchors.
Tighten screws(13) to fix bracket base on the finished wall. NOTE:
The direction of the bracket base should be shown in below figure.
Loosen the screw(16) in the bottom of the bracket(14) with the hex
wrench(15) so that the bracket can be installed. Apply a ring of
plumbers putty or other sealants around the underside of the
bracket. Put the bracket onto the bracket base and lock them by
screw and hex wrench. Remove any excess putty.
Ensure all coupling nuts are tight.
Ensure the handles are in the off position.
Turn on the main water supply, and check for leaks. Repair as
needed.
23493T-4: Shower Only Faucet
Remove the handshower(7). Run hot and cold water through the
faucet for about one minute to remove any debris. Check for leaks.
Shut off the faucet, reinstall the hanshower.
23494T-4: Bath Shower Faucet
Remove the handshower(7). Remove the aerator(17) by coin. Run
hot and cold water through the faucet for about one minute to
remove any debris. Check for leaks. Remove any debris from the
aerator. Shut off the faucet, reinstall the aerator and handshower.
How to Clear the Thermostatic Cartridge
Very hard water can obstruct filters on the thermostatic cartridge and
reduce water flow. Please clean the cartridge as follows:
Shut off the water supply of the faucet and open the water flow
handle, then proceed to remove the cartridge. The cartridge is
sensitive part, please be careful.
3
