PARALLEL

INSTALLATION INSTRUCTIONS

23488T-4

3 Hole Deck Mount Bath Faucet With Handshower

BEFORE YOU BEGIN

All information is based on the latest product information available at the time of publication. Kohler Co. reserves

the right to make changes in product characteristics, packaging, or availability at any time without notice.

Please leave these instructions for the consumer. They contain important information.

NOTES:

1. Flush the water supply pipes thoroughly to remove debris.

2. Inspect the supply tubing for damage and leakage. Replace and maintain as necessary.

3. Observe local plumbing codes.

4. If possible, install the faucet before installing the tub.

5. The highest working pressure for handshower is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar), a pressure reducer

is needed. The highest water and environment temperature is 60ºC. Please keep handshower, showerhead and

shower arm away from heater, or it may become damaged and cause injury to the user.

STANDARD APPLICABLE

Special model meets or exceeds the following at date of manufacture: TIS

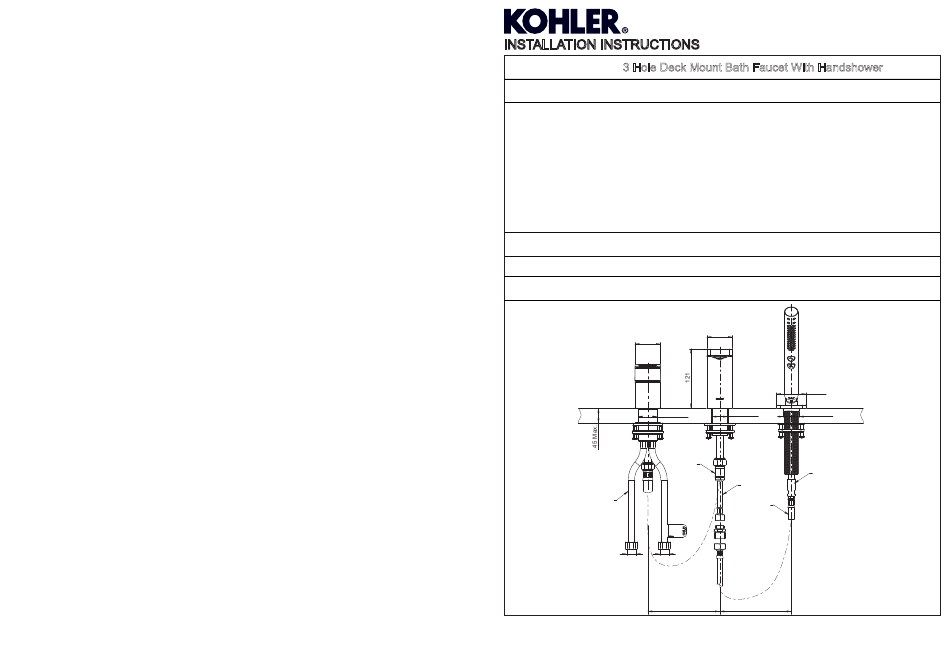

ROUGH-IN DIMENSIONS

60×60

Ø39~Ø42

Ø34~Ø40

Ø33~Ø40

415

2000

600

515

600

G1/2˝

146 Min.

1332550-2A-B

Need help?

Do you have a question about the PARALLEL 23488T-4 and is the answer not in the manual?

Page 1 3 Hole Deck Mount Bath Faucet With Handshower BEFORE YOU BEGIN All information is based on the latest product information available at the time of publication. Kohler Co. reserves the right to make changes in product characteristics, packaging, or availability at any time without notice.
Page 2 10º Ø55 Ø55 INSTALLATION How to Install the Handle Kit Put the washer(2) into the handle kit(1) bottom. Insert the handle kit with the hoses(4) into the mounting hole from upside of the bathtub. Pre-install the screws(6) into the screw holes of the threaded ring(7).
Page 3 PARALLEL SERVICE PARTS How to Install the Spout 23488T-4 3 Hole Deck Mount Bath Faucet With Handshower Put the washer(9) into the spout kit(8) bottom. Insert the spout kit with the hose(14) into the 1332547** mounting hole from upside of the bathtub. 834404 1109323 1297467**...
Page 4 Connect one end of the hose(32, length: 600mm) to the shower hose(27, length: Do not use abrasive cleaners or solvents on Kohler faucets and fittings. 2000mm). Connect the other end to the connector(31).
