Kohler PARALLEL 23493T-4 Installation Instructions

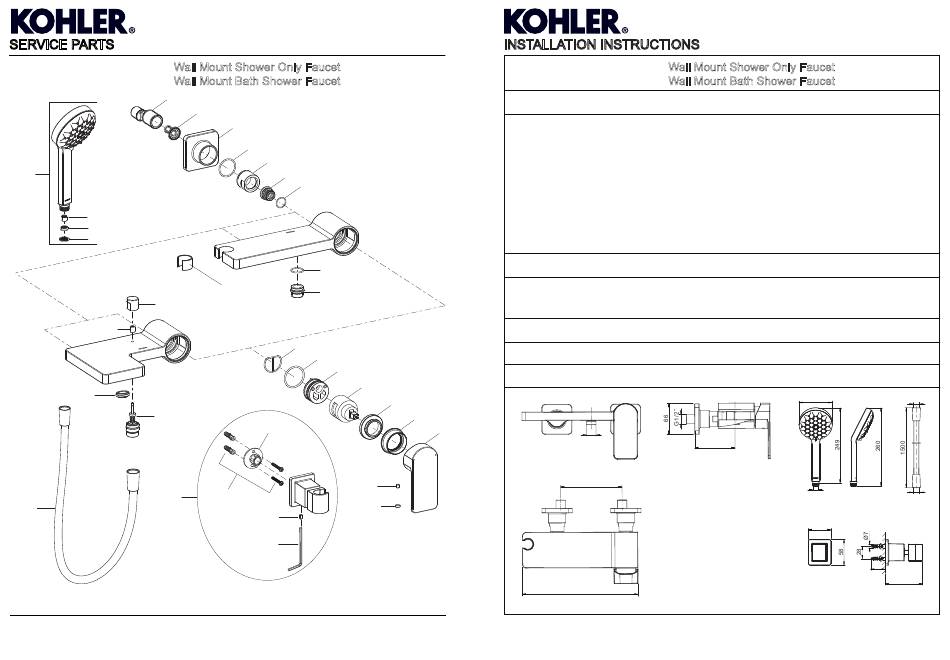

SERVICE PARTS
23493T-4 Wall Mount Shower Only Faucet
23494T-4 Wall Mount Bath Shower Faucet
1170944**
1228257
1236560**
1240266
1030624
77420
23494T:1332249**
23494T:1175324**
23494T:3020067
23494T:1187927**
1241565**
1248781**
**Color code must be specified when ordering.
NOTE: For all Asia pacific regions (excluding China) add SP (SPxxxxxxx**) in front of the part number when ordering.
1348310-2A-A
PARALLEL
1332248**
3010698
3010697**
864985
871363
23493T:870721
23493T:1340710
23493T:1228260**
1332246
77642
1332245
1229992
1208174**
833438
1061576
3008523
1208172
1081607
INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Inspect the supply tubing for damage and leakage. Replace and maintain as necessary.
3. Observe local plumbing codes.
4. The minimum inlet water pressure for the diverter is 0.05MPa(0.5bar).
5. The highest working pressure for handshower is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar), a pressure reducer
is needed. The highest water and environment temperature is 60°C. Please keep handshower, showerhead and
shower arm away from heater, or it may become damaged and cause injury to the user.
HANDLE OPERATION
Lift the handle gently. Turn clockwise for hot water, turn counter-clockwise for cold water.
For 23494T-4, water flows out from spout when faucet diverter is in the normal position. Lift the diverter knob
gently, shower works.
STANDARD APPLICABLE
Special model meets or exceeds the following at date of manufacture: TIS
ROUGH-IN DIMENSIONS
3006930
1332368**
1332366**
4
1348310-2A-A
23493T-4 Wall Mount Shower Only Faucet
23494T-4 Wall Mount Bath Shower Faucet
G1/2˝
78~88
150±15
252
PARALLEL
Ø110 G1/2˝
G1/2˝
G1/2˝
51
33
85
23493T-4
1
