SERVICE PARTS
零 件 图
23472T-4E2
23475T-4E2
23478T-4E2
1331657**
1331656**
833438
1562449
3015536
3012353
1310075
1343771
1239175
1319082
1319082
834704
**订购时请说明颜色编号
**Color code must be specified when ordering
1363181-T2-E
PARALLEL
Single Handle Lavatory Faucet
单把脸盆龙头
单把碗盆龙头
单把碗盆龙头(高出水口)
1331371**
3008523
1542796
1132027**
880406
1132031
1132022
1132034
1443913
1030925
1132033
1331661**
1319082
3006148
1146748
1331351
1228834
若方
INSTALLATION INSTRUCTIONS
安装说明书
安装之前
所有的资料是按最新出版的产品资料编写而成。科勒
公司保留任何时候不经通知即可改变产品特性、包装
或产品可供类型的权利。
说明书包括重要的安装、保养及清洁方面的内容，请
把这些资料交给用户阅读。
注意事项：
1. 一定要先彻底冲洗供水管以清除管道中的杂质。
1331350**
2. 尽可能在安装脸盆之前安装水龙头。
3. 检查供水管有无损坏和漏水。如需要，进行替换
和维修。
4. 遵守当地管路安装条例。
5. 切断供水管路。
安装尺寸
47
4
1363181-T2-E
Single Handle Lavatory Faucet
23472T-4E2
单把脸盆龙头
23475T-4E2
单把碗盆龙头
23478T-4E2
单把碗盆龙头(高出水口)
BEFORE YOU BEGIN
All information is based on the latest product information
available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics,
packaging, or availability at any time without notice.
Please leave these instructions for the consumer.
They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove
debris.
2. If possible, install this faucet before installing the
lavatory.
3. Inspect the supply tubing for damage and leakage.
Replace and maintain as necessary.
4. Observe local plumbing codes.
5. Shut off the water supplies to the fitting.
ROUGH-IN DIMENSIONS
47
60 Min.
155
136
15.2º
Ø50
Ø32~Ø38
G1/2˝
23475T-4E2
若方
PARALLEL
60 Min.
155
136
15.2º
Ø50
Ø32~Ø38
G1/2˝
23478T-4E2
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kohler PARALLEL 23472T-4E2
Summary of Contents for Kohler PARALLEL 23472T-4E2

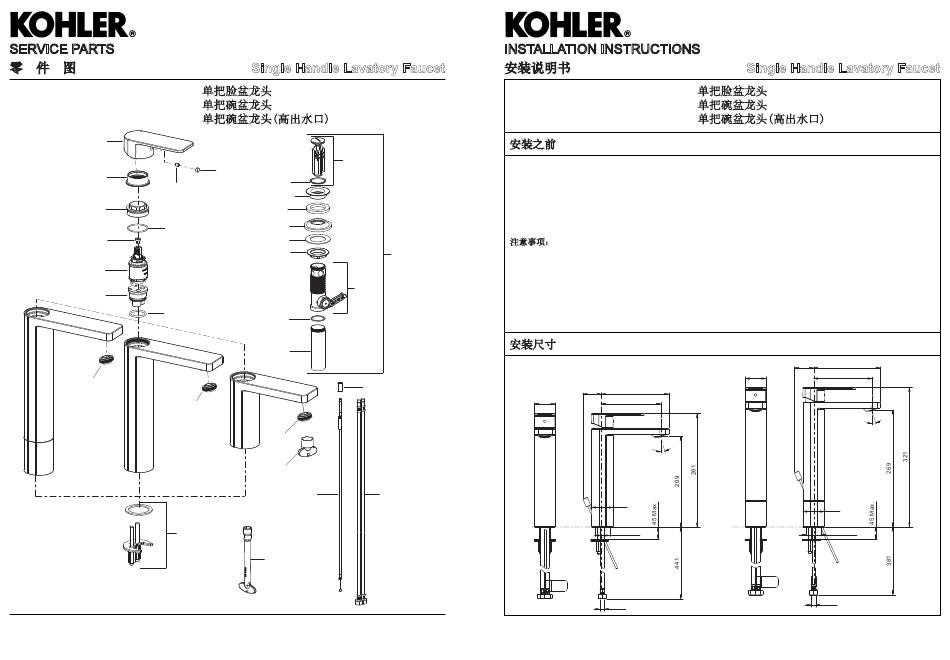

- Page 1 BEFORE YOU BEGIN 1331657** 安装之前 1331371** All information is based on the latest product information 所有的资料是按最新出版的产品资料编写而成。科勒 3008523 available at the time of publication. Kohler Co. reserves 1331656** 公司保留任何时候不经通知即可改变产品特性、包装 1542796 the right to make changes in product characteristics, 833438 或产品可供类型的权利。 packaging, or availability at any time without notice.
