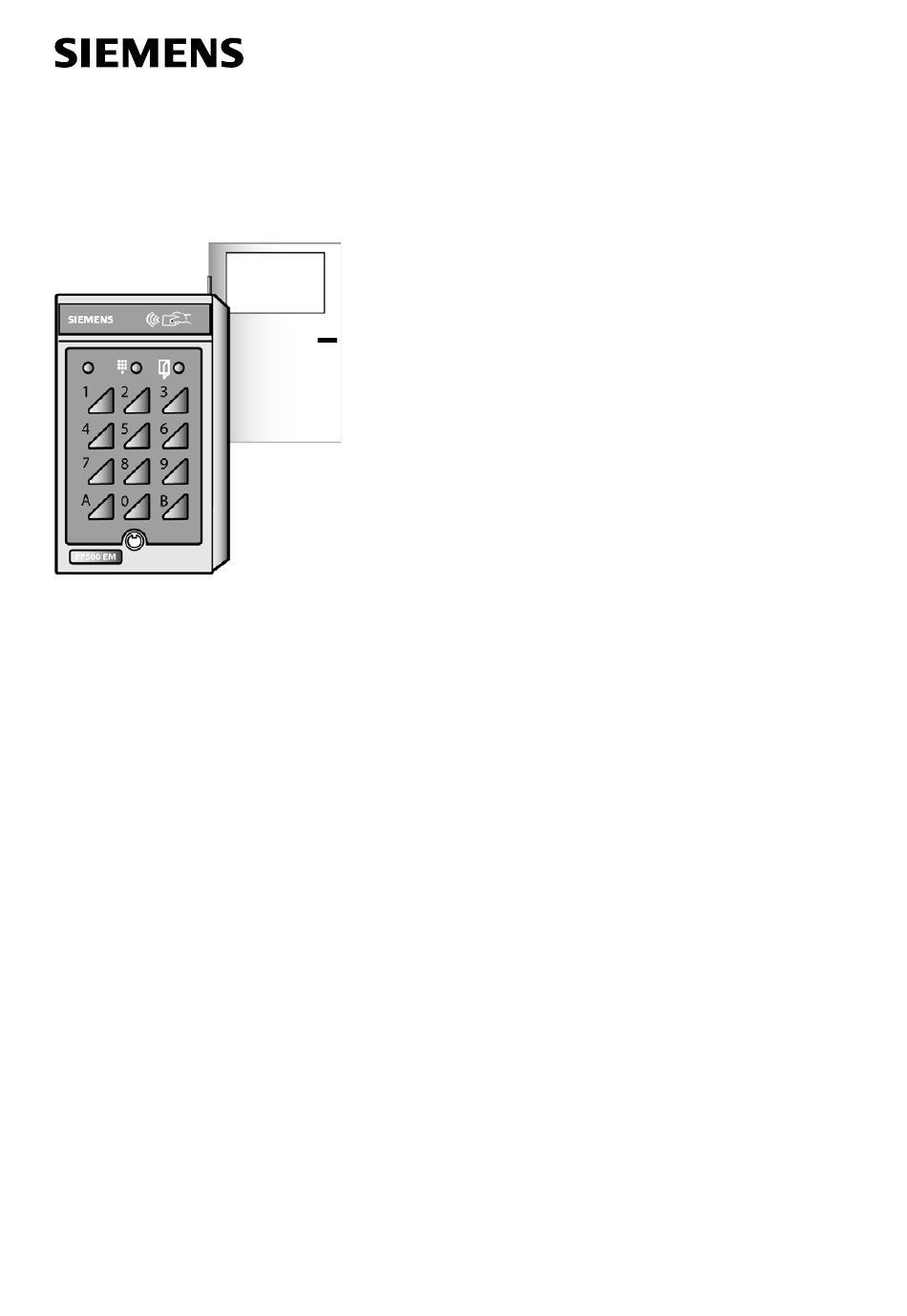

- Page 1 Card Reader PP500-EM PP500-Cotag Advanced Programming Manual Building Technologies Fire Safety & Security Products...
- Page 2 Data and design subject to change without notice. / Supply subject to availability. © 2008 Copyright by Bewator AB, a Siemens company Wir behalten uns alle Rechte an diesem Dokument und an dem in ihm dargestellten Gegenstand vor. Der Empfänger erkennt diese Rechte an und wird dieses Dokument nicht ohne unsere vorgängige schriftliche Ermächtigung ganz oder teilweise Dritten zugänglich machen oder...
-
Page 3: Table Of Contents
Mechanical ....................20 11.2 Wiring ......................21 11.2.1 Basic .......................21 11.2.2 Entro DC22 & DC12 connections ............22 11.2.3 DC800 connections.................22 11.2.4 Granta 4422 connections................23 11.2.5 SiPass Integrated ADD5100 connections..........23 Reconfiguring the function ..............24 Siemens Building Technologies Fire Safety & Security Products 07.2008... - Page 4 13.3 Wiegand ....................35 13.3.1 Connections ....................35 13.3.2 Electrical characteristics................35 13.3.3 Data format....................36 13.3.4 Interface settings..................36 13.4 Magnetic Stripe ..................38 13.4.1 Connections ....................38 13.4.2 Electrical characteristics................38 13.5 4101/4010 Controller interface..............39 Keyword index..................41 Siemens Building Technologies Fire Safety & Security Products 07.2008...
- Page 5 Siemens Building Technologies Fire Safety & Security Products 07.2008...
-
Page 7: General
This document is mainly aimed for installers that want to customize the operation of the PP500, e g to re-configure the card reading parameters. The basic configuration and installation is also described in the PP500 Installation guide supplied with the product. Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 8: Safety
Please also take into account any additional country-specific, local safety stan- dards or regulations concerning project planning, operation and disposal of the product. Maintenance work must only be carried out by trained specialists. Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 9: Standards & Guidelines
Standards & guidelines This product complies with the requirements of the European Directives. The EU declaration of conformity is available from: Siemens Building Technologies Fire & Security Products GmbH & Co. oHG 76181 Karlsruhe, Germany European Directive 1999/5/EC on Radio Equipment and Telecommunications Terminal Equipment (R&TTE):... -
Page 10: Technical Data
140x80x40 If needed, complete the installation with flush mounting kit BB3. Reading distances EM4102 (passive): up to 5 cm. Cotag (passive): up to 5 cm. Cotag (active): up to 10 cm. Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 11: General Features
When the reader is in programming mode and if no cards are presented to the reader or short code keys pressed, the reader will automatically time out to normal operation after 60 seconds. Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 12: Exit Programming Mode
The configuration of the reader is able to be taught and re-taught using configura- tion cards when in programming mode. This can be taught in any order in re- gards to the distributor coded card. Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 13: Preset Configurations
A3 Preconfigured should be interface BE (Clock & Data), with external control of Red LED, Green LED and Horn. Also, the yellow LED should not be active at all, show no indication of noise or key presses. Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 14: Interfaces
After sending the card data the reader then outputs the PIN code entered into the keypad. If a Wiegand interface the PIN is output as follows: Binary 11110000 11100001 11010010 11000011 10110100 10100101 10010110 10000111 01111000 01101001 01011010 01001011 Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 15: Clock & Data - Pin Code Output
11010 10011 11111 10110 11010 01011 11111 01110 11010 01110 11111 01011 BCLINK - PIN code output If the reader is using BCLINK, the PIN code is output according to the BCLINK pro- tocol. Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 16: Operating Configuration
LED in the same way as the PR500 reader. There is also a configuration that allows the yellow LED to be off permanently no matter if there is noise, or keys pressed. Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 17: Inputs
The internal control of the horn allows it to sound for 100ms or none at all when a card is presented. When in BCLINK configuration it follows BCLINK protocol using multi-tone sounds. Improved continuity in tones in relation to PR500. Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 18: Entry/Exit Addressable Jumper
There is a jumper option to allow you to select whether the reader is an Entry or Exit reader when being used in BCLINK configuration. No use when in other configurations. Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 19: Outputs
This is jumper selectable so that the contacts give a normally closed and nor- mally open contact or, monitored with 10 kohms. When the reader is configured for BCLINK protocol, this sends the tamper status digitally through the communication lines. Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 20: Installation
Make sure the front and back plates are connected with an insulated cable. Fit the front and check that the reader is securely fastened. Fig. 1 PP500 back plate. Dimensions in mm. Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 21: Wiring
Tamper switch connection, terminal nos 11 and 12. Default: Not used. Optional resistor 10 kohm for tamper monitoring. Used in serial with tamper switch. Default: Not used. Mechanical tamper switch. Buzzer. PP500 Connections. Table 1 Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 22: Entro Dc22 & Dc12 Connections
The jumpers in the DC800 shall be set as below: J1 = Vin (incoming power). J4 = BCLINK DC800 Signal PP500 Com C C (H) Com D D (D0) DC800 connections Table 3 Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 23: Granta 4422 Connections
Table 4 Granta 4422 connections 11.2.5 SiPass Integrated ADD5100 connections ADD5100 Signal PP500 +12V D (D0) Data 0 Data 1 Red LED Green LED GREEN Table 5 SiPass Integrated ADD5100 connections Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 24: Reconfiguring The Function
When the Reader is powered up, it waits 4 seconds for a configuration card to be presented. If it doesn’t read a configuration card in this time, it enters its configured operating mode. Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 25: The Configuration Card
To teach the Reader its Distributor and Secondary Codes you use any of the nor- mal cards which will be used with the system (any of the cards which are issued to cardholders). We shall call this the “DC/SC card”. Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 26: Programming The Configuration Card
1, the horn sounds for 1 second when the host pulls the horn input down to 0V and then switches off automatically, irrespective of the state of the horn input. Siemens Building Technologies Fire Safety & Security Products 07.2008... - Page 27 Reconfiguring the function Hex number Internal control External control 100ms bleep follows horn input 100ms bleep sounds for 1 second no bleep follows horn input no bleep sounds for 1 second Siemens Building Technologies Fire Safety & Security Products 07.2008...
-
Page 28: Hhhh (Hold-Off Time)
26-bit Wiegand interface (interface number 12). This saves you from hav- ing to program the leading parity bit into the cards. The trailing odd parity bit is still calculated as normal. Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 29: Xarg (Internal/External Control Of Red And Green Leds)
The amber LED is also illuminated while a key is pressed. Use the 4, 5 or 6 settings to disable the amber LED so it remains off at all times. Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 30: Crrrrrrr (Secondary Code Check Disable, And Repeat Data Delay - Rdd).30
Please check that the interface number you are using is available on the Reader - the following inter- face numbers are available: 00, 02, 04, 0E, 12, 24, 47, 4D, 4E, 4F, 59, 60, 64, 6A, BC, BD and BE. Siemens Building Technologies Fire Safety & Security Products... -
Page 31: Programming The Dc/Sc Card
If, after setting the Distributor and Secondary Code, you need to change either of them, power up the Reader, present the configuration card within 4 seconds and then present the new DC/SC card within 8 seconds. Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 32: Examples Of Working Out What To Program Into The Configuration Card In 63-Bit Mode On The Programmer
Secondary Code check enabled (msb zero). RDD: 5 seconds decimal (05 in hex) Wiegand data output (interface number 12 in hex) Write down the hex digits in order: 1000000002820512 and enter it into the 633-2 Programmer in 63-bit display format. Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 33: Example 2
The Programmer doesn’t need the leading zeros, so the number you enter in 63-bit display format is: 2B013C59 (hexadecimal). NOTE The reader will start to work normally only after the selected hold-off time has elapsed. Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 34: Data Interfaces
D0 is not pulled up - it can be driven high or low by the Reader, and can also float in a high impedance state as shown in the diagram below. The diagram below shows the logical implementation of the data outputs: Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 35: Data Hold Input
When used in association with the Data Hold input see above, DA enables the data lines from two Readers to be connected in parallel. The polarity of the DA output is active-low. Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 36: Data Format
Data bit 32, four zeros, lower 31 bits of data msb first, 50µs pulse, 1.2ms 4101/4010 Controller interface - use when connecting to 4422 swipe module or 4010 swipe Controller - set 4101/4010 Controller to interface 303. Card-determined variable length data output (see below) Siemens Building Technologies Fire Safety & Security Products 07.2008... - Page 37 100µs pulse, 400µs space, 2s RDD. (If you program bits 41 to 48 of the card to be zero, or any number greater than 40, interface 8E outputs 40 bits of card number.) Siemens Building Technologies Fire Safety & Security Products 07.2008...
-
Page 38: Magnetic Stripe
This example shows an output of 4 data characters only - all of the MagneticStripe interfaces which are available on the Proximity Readers output 10 or 11 data char- acters as shown below. Siemens Building Technologies Fire Safety & Security Products 07.2008... -
Page 39: 4101/4010 Controller Interface
4010 Controller, or directly to a 4010 swipe Controller, the pin connections being as follows: Reader 4422 swipe module or 4010 swipe Controller Interface Number Function Wiegand output to 4422 swipe module or 4010 swipe Controller Siemens Building Technologies Fire Safety & Security Products 07.2008... - Page 40 Data interfaces Siemens Building Technologies Fire Safety & Security Products 07.2008...
-
Page 41: Keyword Index
Distributor Code, 7, 12, 24, 31 Tamper contact, 7 terminal blocks, 21 Granta, 23 Timeout, 11 host system, 21 Wiegand, 7, 13, 14, 16, 19, 23, 24, 26, 28, 32, 33, 34, 35, 36, 37, 39 Siemens Building Technologies Fire Safety & Security Products 07.2008... - Page 42 Issued by Bewator AB SE-171 24 Solna Sweden © 2008 Copyright by www.siemens.com/buildingtechnologies Bewator AB, a Siemens company Document no. A6V10201729 Edition 07.2008...
