5.25-Inch Drive Assembly; Figure 4-7. 5.25-Inch Drive Assembly Removal - Dell OptiPlex GXi Service Manual

5.25-Inch Drive Assembly

drive-mounting
screws (4)

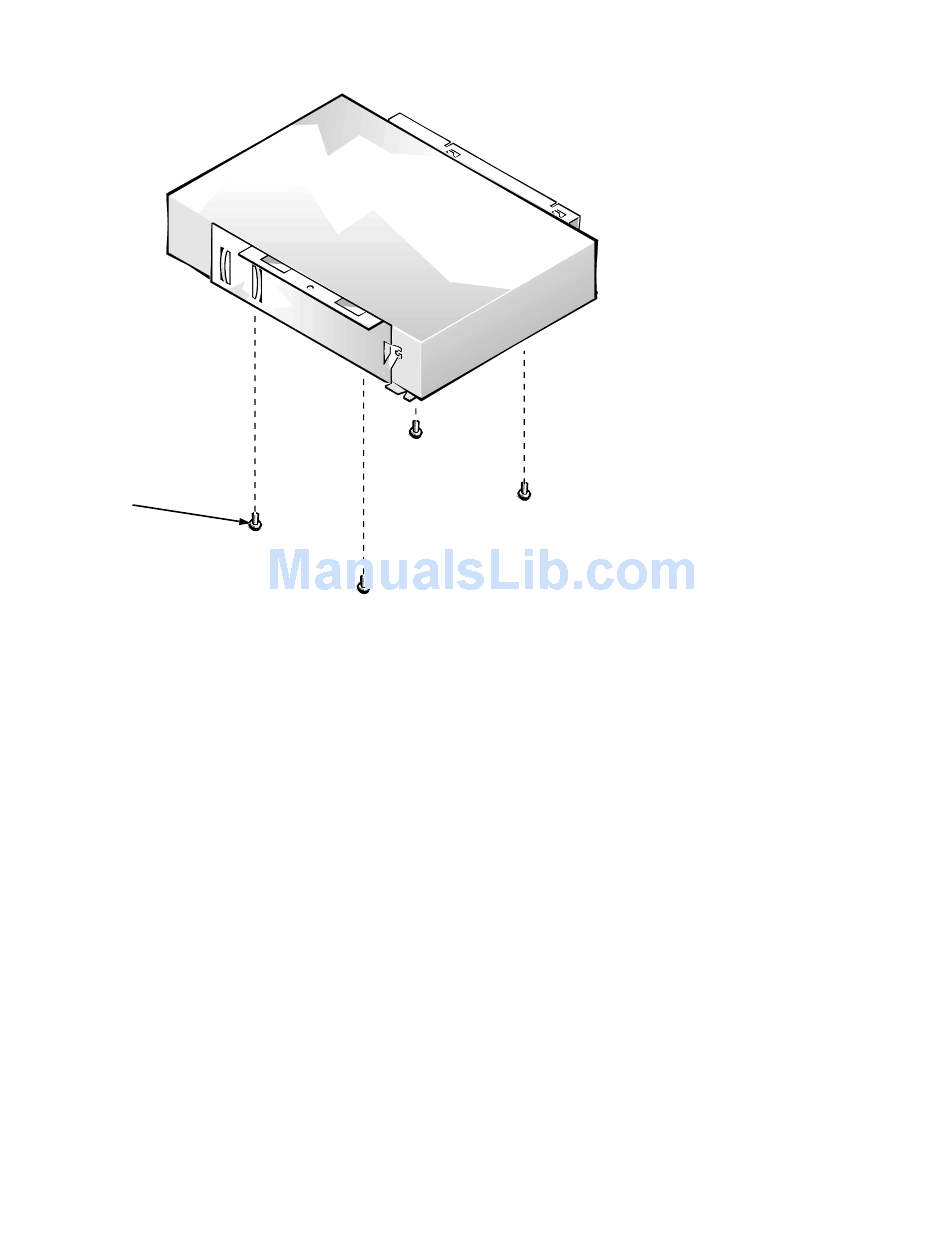

Figure 4-7. 5.25-Inch Drive Assembly Removal

To remove a 5.25-inch drive assembly, follow these steps:
1. Remove the 3.5-inch diskette drive assembly.
2. Disconnect the DC power cable and the interface cable from the back of
the 5.25-inch drive.
3. Lift the 5.25-inch drive assembly straight up and out of the chassis.
4. Lay the 5.25-inch drive assembly upside down, then remove the four
screws attaching the drive to the bracket.
When you replace the 5.25-inch drive, place the front of the drive toward the
front of the bracket; then install the four screws but do not tighten them. Align
the screws with the score marks on the bracket, and tighten the screws in the
order stamped on the bottom of the bracket.
Check the alignment of the computer cover around the 5.25-inch drive bezel.
Adjust the drive forward or backward on the bracket to align it.
front of computer
Removing and Replacing Parts on the Low-Profile Chassis 4-9
