SYSTEM 2316 Installation Manual

KEYPAD LABEL DRAWER

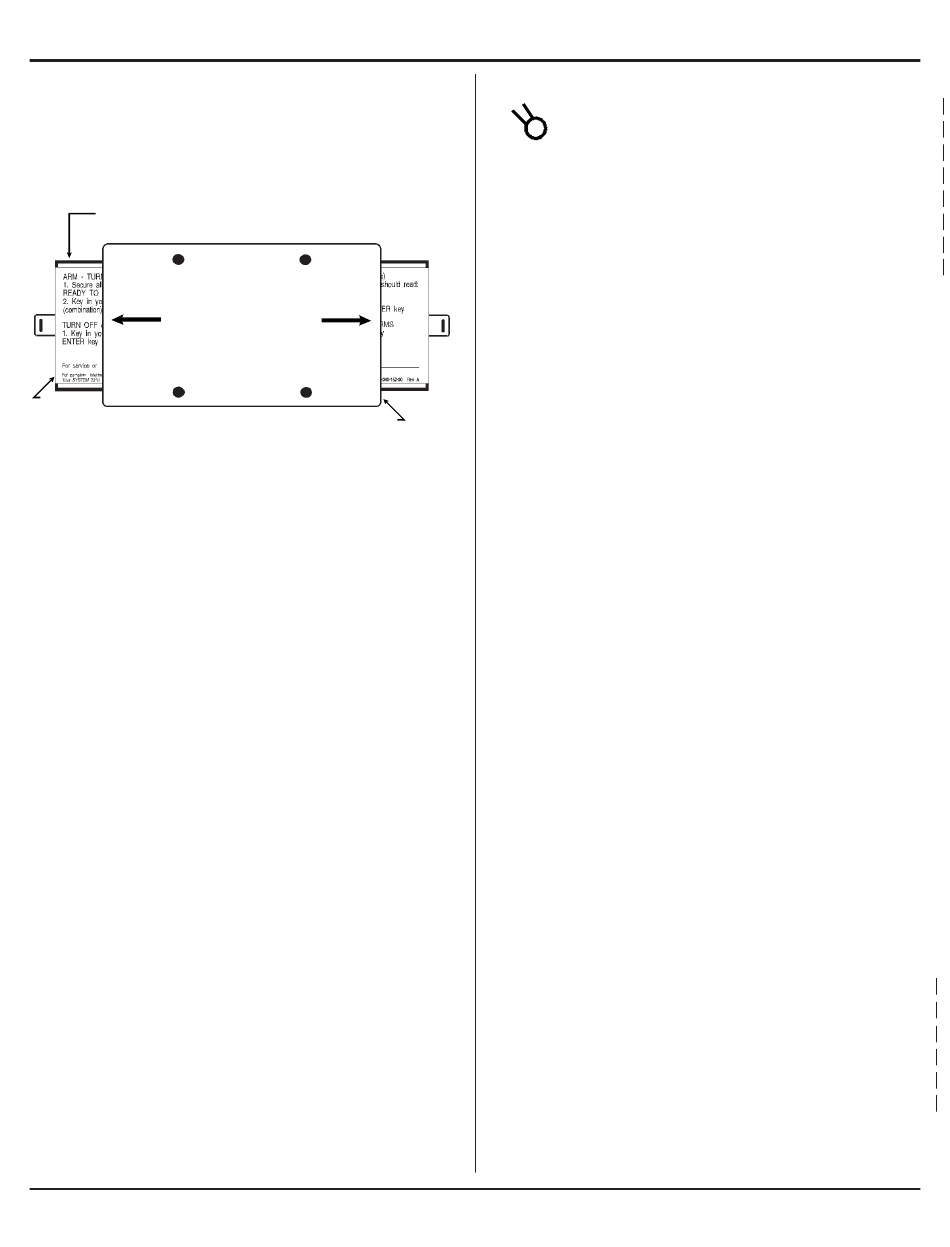

Each keypad comes with a Label Drawer and quick reference operating
label. Follow the diagram below to set up the Label Drawer for each
keypad.
Example of drawer pulled
from the left
Plastic drawer
KEYPAD PLASTIC BASE
Rotate keypad base so
drawer slot faces the correct direction
Plastic
drawer
1. Fill in the zone descriptions inside the label.
2. Mark "Y" or "N" to indicate if zones can be bypassed or not.
3. Determine if the drawer will slide from the right or left.
4. Peel the cover off the drawer glue.
5. Align the edge of the label with the edge of the drawer.
Center the label top to bottom.
6. Press the label onto the glue. Avoid trapping air bubbles
under the label.
7. Slide the drawer/label into the slot on the back of the keypad
base.
TESTING
Once the installation is complete, connect AC and DC power. Complete
programming, if required. Test all panel operations.
TO THE INSTALLER
Regular maintenance and inspection (at least monthly) by the installer
and frequent testing by the user are vital to the continuous and
satisfying operation of any alarm system. The installer should assume
the responsibility for developing and offering a regular maintenance
program to the user, as well as acquainting the user with the proper
operation and limitations of the alarm system and its component parts.
Recommendations must include a specific program of regular
testing (at least weekly) to insure that the system is operating
properly at all times.

TELEPHONE LINE PROBLEMS

In the event of telephone line problems, disconnect the SYSTEM 2316
by removing the modular connector plug from the Telco interface jack.
Do not disconnect the connection inside the SYSTEM 2316 cabinet.
Doing so will prevent the premise phones from operating. If your phone
works correctly after the control panel has been disconnected from the
phone line, the control panel has a problem and should be returned for
repair.
If the phone does not work after you have disconnected the control
panel from the phone line, notify the telephone company and request
prompt repair. The user may not under any circumstance (in or out
of warranty) attempt any service or repairs on the SYSTEM 2316.
The control panel must be returned to C&K SYSTEMS or an authorized
service agency for repairs.
Example of drawer pulled
from the right
Plastic drawer and label slide into
drawer on back of keypad base

Watchdog Indicator

The SYSTEM 2316 is protected by an advanced
DS1
circuit, called a Watch Dog circuit, that constantly
monitors the microprocessor.
WATCH
As long as the panel has power and is operating
DOG
normally, the Watch Dog LED (DS1) on the circuit
board will flash. If the Watch Dog circuit detects a
failure, it will attempt to reset the panel.
If the panel does not operate properly and the Watch Dog LED no longer
flashes, call the C&K Technical Support Hotline at 1-800-227-8065 in
the U. S. or your local C&K representative.
FCC NOTICE
WARNING: This device is intended to be installed by a
professional alarm installer.
The user shall be cautioned that changes or
modifications not expressly approved by C&K
SYSTEMS could void the user's authority to
operate the equipment.
This equipment has been tested and found to comply with the limits for
a Class B digital devices, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
.
Re-orient the radio/television antenna.
.
Connect the AC transformer to a different outlet so that the
control panel and radio/television are on different branch circuits.
.
Relocate the control panel with respect to the radio/television.
.
Consult the dealer or an experienced radio/television technician
for help.
In accordance with Part 68 of the FCC Rules, this device must not be
used on party lines or coin-operated phone lines.
If you experience trouble with the telephone lines, disconnect the
control panel from the telephone line to determine the source of the
trouble. If it is determined that the control panel is malfunctioning,
discontinue its use until the malfunction has been corrected.
CANADIAN EMISSION REQUIREMENTS
This digital apparatus does not exceed the Class B limits for radio noise
emmissions from digital apparatus set out in the Radio Interference
Regulations of the Industry Canada.
Le présent appariel numérique n'émet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques de la Class
B prescrites dans le Règlement sur le brouillage radioélectriques édicté
par le ministère des Industrie Canada.
20
