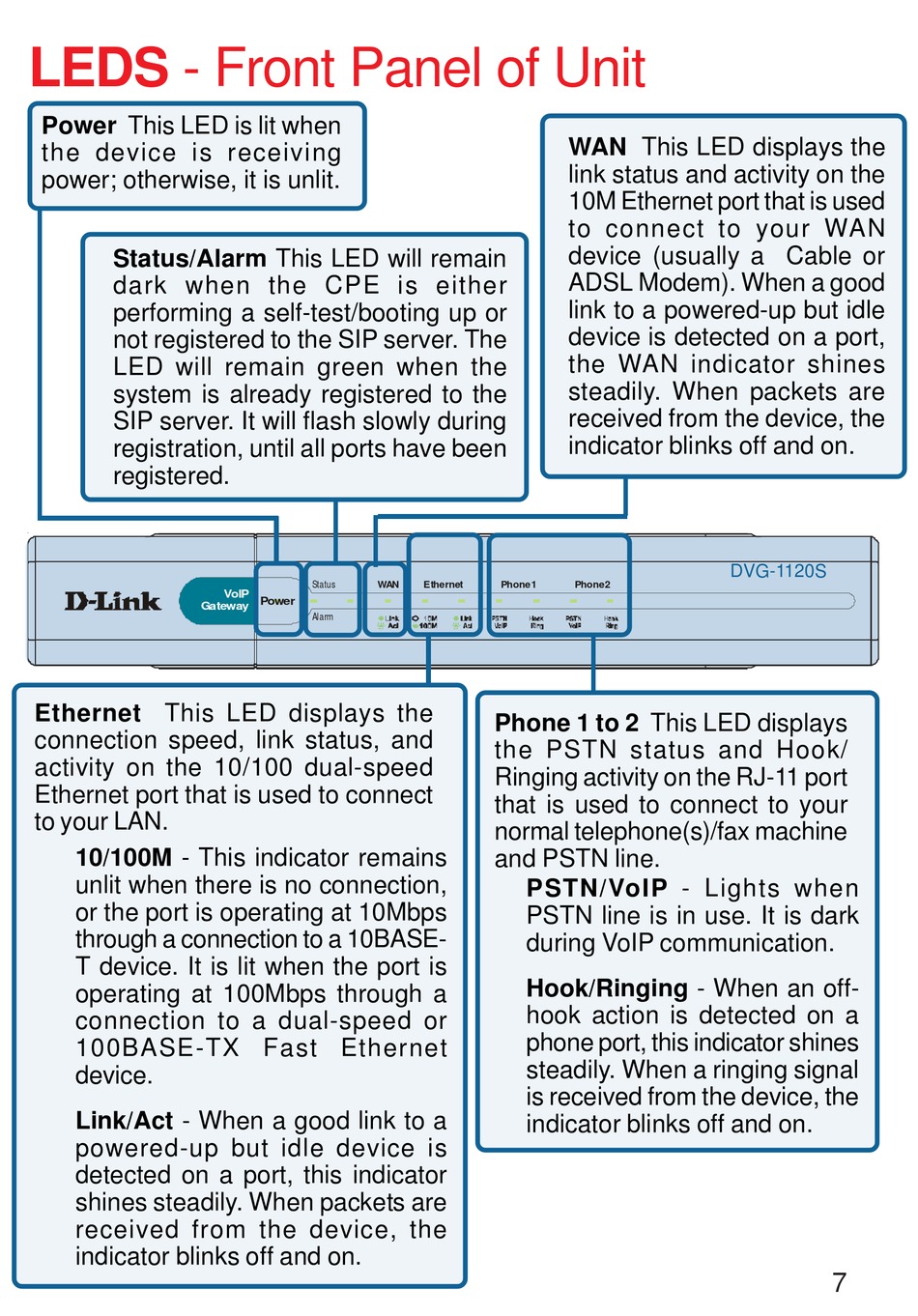

LEDS - Front Panel of Unit
Power This LED is lit when
the device is receiving
power; otherwise, it is unlit.
Status/Alarm This LED will remain
dark when the CPE is either
performing a self-test/booting up or
not registered to the SIP server. The
LED will remain green when the
system is already registered to the
SIP server. It will flash slowly during
registration, until all ports have been
registered.
Gateway
Ethernet This LED displays the
connection speed, link status, and
activity on the 10/100 dual-speed
Ethernet port that is used to connect
to your LAN.
10/100M - This indicator remains
unlit when there is no connection,
or the port is operating at 10Mbps
through a connection to a 10BASE-
T device. It is lit when the port is
operating at 100Mbps through a
connection to a dual-speed or
100BASE-TX Fast Ethernet
device.
Link/Act - When a good link to a
powered-up but idle device is
detected on a port, this indicator
shines steadily. When packets are
received from the device, the
indicator blinks off and on.
Status
WAN
VoIP
Power
Alarm
WAN This LED displays the
link status and activity on the
10M Ethernet port that is used
to connect to your WAN
device (usually a Cable or
ADSL Modem). When a good
link to a powered-up but idle
device is detected on a port,
the WAN indicator shines
steadily. When packets are
received from the device, the
indicator blinks off and on.
Ethernet Phone1 Phone2
Phone 1 to 2 This LED displays
the PSTN status and Hook/
Ringing activity on the RJ-11 port
that is used to connect to your
normal telephone(s)/fax machine
and PSTN line.
PSTN/VoIP - Lights when
PSTN line is in use. It is dark
during VoIP communication.
Hook/Ringing - When an off-
hook action is detected on a
phone port, this indicator shines
steadily. When a ringing signal
is received from the device, the
indicator blinks off and on.
DVG-1120S
DV G-112 0M
7
