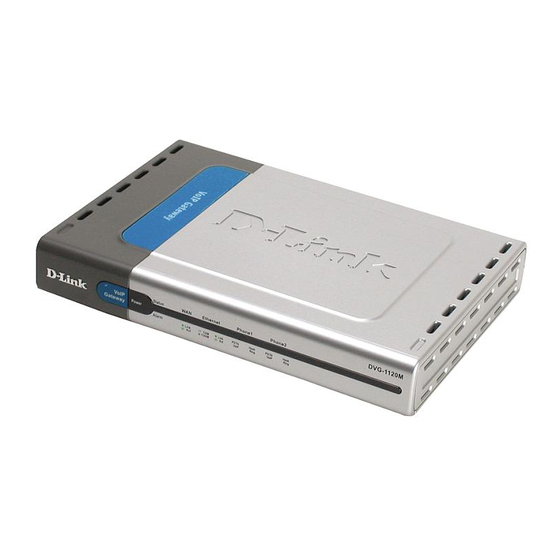

- Page 1 D-Link DVG-1120M VoIP Residential Gateway Manual Building Networks for People (10/08/04)
-
Page 2: Table Of Contents
Contents Package Contents ...3 Introduction...4 Connections ...5 Features and Benefits ...6 LEDs ...7 Web-based Management ...8 Technical Specifications ...29 Technical Support ...32 Warranty ...33 Registration ...36... -
Page 3: Package Contents
Quick Installation Guide Note: Using a power supply with a different voltage rating than the one included with the DVG-1120M will cause damage and void the warranty for this product. If any of the above items are missing, please contact your reseller. -
Page 4: Introduction
Internet connection. You can configure and monitor the DVG- 1120M via the Web browser. Telnet and SNMP management is also supported. By routing calls over the Internet or any IP network, the DVG-1120M can reduce or eliminate long distance or inter-office phone charges. Corporations can also... -
Page 5: Connections
Connections Warning! Using a different power adapter than the one included with your purchase will damage the DVG-1120M and void the warranty. Reset Switch Used to return the device to its original configuration. This is the same as performing a factory reset. -
Page 6: Features And Benefits
Features & Benefits One analog FXS interface port accepting an RJ-11 connector to facilitate a VoIP connection One 10Mbps WAN port for connecting to a DSL/Cable Modem or other WAN devices One 10/100Mbps LAN port for connecting to a local network IP address assignment using DHCP (Dynamic Host Configuration Protocol) or static configuration IP Routing support (RIP1, RIP2 and Static Routing) -
Page 7: Leds
LEDS Power This LED is lit when the device is receiving power; otherwise, it is unlit. Status/Alarm This LED will remain green when the CPE is either performing a self-test or booting up. The LED will flash green slowly when the system is ready for a connection with the Call Agent. -
Page 8: Web-Based Management
Web-based Management In order to use a web browser to configure the VoIP gateway, you must make sure it has a valid Ethernet connection to a PC or LAN via its LAN port. Access the configuration utility to check the LAN port by entering the IP Address into your web browser address field. - Page 9 Web-based Management (continued) Setting Up the Connection To configure the WAN port, please do the following: Click on Configure WAN Port. Then go to Start>Control Panel>Network Connections>Right-click local area connection >select Properties> double click Internet Protocol (TCP/IP). The screen at right will appear.
- Page 10 Web-based Management (continued) To configure the LAN port for the device, please do the following: Click on Configure LAN Port. In this configuration menu, users can configure the LAN IP Address. (Recommended for advanced users.) By default the LAN IP Address is: 192.168.15.1 After you have configured your WAN and LAN ports you can click on Save and Restart System in the Configuration menu, or you can continue to configure the VoIP.
- Page 11 Web-based Management (continued) Configure LAN Port > Proxy DNS State - This toggles Enable and Disable for Proxy function. Proxy Address - Enter the Proxy DNS IP address if instructed by your service provider. Click Save to save the settings. Configure LAN Port >...
- Page 12 Web-based Management (continued) Configure LAN Port > DHCP Configuration > Dynamic IP Assignment Use the Dynamic IP Assignment configure the device to act as a DHCP server for the LAN. The items on this window are described below: Default Gateway - This specifies the Gateway IP Address that will be assigned to and used by the DHCP clients.
- Page 13 Web-based Management (continued) Configure LAN Port > DHCP Configuration > Static IP Assignment Static Assignment functions in much the same way as the Dynamic IP Assignment. The only difference is that a particular IP address can be assigned to a particular host.
- Page 14 Web-based Management (continued) Configure LAN Port > NAT Configuration Select enabled or disabled for the NAT function. Click Save to save the settings. Configure LAN Port > NAT Configuration > Virtual Server Configuration This window allows you to view the current virtual server configuration settings.
- Page 15 Web-based Management (continued) Configure LAN Port > NAT Configuration > Virtual Server Configuration (continued) The items on this window are described below: Index - Choose the index number that you would like to edit (Form 1 to 6). Protocol - Choose the protocol either TCP or UDP.
- Page 16 Web-based Management (continued) Configure LAN Port > NAT Configuration > Dynamic NAT This window allows you to view the current Dynamic NAT settings. Click the edit icon on this window to access the second Dynamic NAT window: The items on this window are described below: Index - Choose the...
- Page 17 Web-based Management (continued) Configure LAN Port > NAT Configuration > Static NAT This window allows you to view the current Static NAT settings. Click the edit icon on this window to access the second Static NAT window: The items on this window are described below: Index - Choose the index number that you would like to edit (Form 1 to 6).
- Page 18 Web-based Management (continued) Configure LAN Port > Routing > RIP Select to use RIPv1, RIPv2 or On (both versions) for the LAN and WAN interface. To disable both versions of RIP select Off. Click Save to save the settings. RIP - Routing Information Protocol that specifies how routers exchange...
- Page 19 Web-based Management (continued) Configure LAN Port > RIP > Static Route Configuration (continued) The items on this window are described below: IP Address - Type in the IP Address of the subnet or device where packets are routed. Subnet Mask - Type in an appropriate subnet mask that allows the static route to function.
- Page 20 Web-based Management (continued) Firewall Rules Firewall Rules is an advance feature used to deny or allow traffic from passing through the device. The filtering sets are sets of rules defined in the menus shown below. Click the edit icon on the window above to access the Firewall Rules window for the...
- Page 21 Web-based Management (continued) Firewall Rules (continued) Comment- Type in an appropriate identifying comment for the rule. Pass or Block- Select Pass or Block to perform this action on packets as defined below. Direction- Select In or Out to pass or block packets coming in or going out of the network.
- Page 22 Web-based Management (continued) Firewall Rules (continued) TCP Flag - Select enabled or disabled to enable or disable the filter rule as defined in the menu. TCP Packet Options - Optional TCP packet options include: Acknowledgement, Push, Reset, SYN, and FIN. Consult a certified technician before selecting any of these advanced options.
- Page 23 Web-based Management (continued) MAC Filter (continued) The items on this window are described below: Index - This is the index number that you are editing (1-16). MAC Address - Enter the MAC address of the client that will be filtered. State - This toggles Disable and Enable for the MAC address filtering function for this index.
- Page 24 Web-based Management (continued) Statistics > WAN Internet Connection Statistics This window displays a variety of WAN Connection statistics. Statistics > Phone Port Statistics This window displays a variety of Phone Port statistics.
- Page 25 The saved file or any other saved setting file created by the DVG-1120M can be uploaded into the unit. To restore a system settings file, click on Browse to search the local hard drive for the file to be used.
- Page 26 Web-based Management (continued) Factory Reset Before performing a Factory Reset, be absolutely certain that this is what you want to do. Once the reset is done, all of the device’s settings stored in NV- RAM will be erased and restored to values present when the device was purchased.
- Page 27 Click on Save Configuration at the bottom of the window to save the system settings to NV-RAM. Advanced This section contains advanced configuration settings for the DVG-1120M VoIP Station Gateway. Please consult a certified technician before making any changes to the Advanced menu.
- Page 28 Web-based Management (continued) About This read-only window displays information about the DVG-1120M VoIP Station Gateway such as: Device Type, MAC Address, Boot PROM Firmware, Firmware Version, and DSP Version. The DSP Version will list “Not yet loaded” until you initialize your unit.
-
Page 29: Technical Specifications
Technical Specifications Call Control Protocols Compliance: MGCP Voice Compression: G.711 (A-law and u-law), G.723.1, G.729a Analog Voice Ports: Type: Loop-Start FXS interfaces DTMF tone detection/generation V.21/V.25 Modem/Fax tone detection Echo Cancellation: G.165/G.168 Ethernet Ports: WAN: 10BASE-T Ethernet port (MDI-II) LAN: NWay 10/100BASE-TX Fast Ethernet ports (MDI-X) IEEE 802.3 10BASE-T Ethernet compliance IEEE 802.3u 100BASE-TX Fast Ethernet compliant Quality of Service:... - Page 30 Technical Specifications (continued) Network Management: SNMP management agent base MIB II Telnet provisioning Manage functions through an intuitive web-based graphical user interface TFTP: The built-in Trivial File Transfer Protocol provides firmware upgrade Security: Password Authentication Protocol/Challenge Handshake Authentication Protocol (PAP/CHAP) Administrative password through Web, Telnet and SNMP Packet filter by IP Address, port number and protocol LEDs:...
- Page 31 Technical Specifications (continued) Power Supply: AC-to-DC power adapter (provided) DC Input: 12VDC/1A Operating Temperature: °C 0-50 Storage Temperature: -10-55 Humidity: 5% - 95% non-condensing Safety: UL/CUL Emission (EMI): FCC Class B VCCI Class B BSMI Class B CE Class B C-Tick Class B °C...
-
Page 32: Technical Support
T T T T T echni You can find software updates and user documentation on the D-Link website. D-Link provides free technical support for customers within the United States and within Canada for the duration of the warranty period on this product. -
Page 33: Warranty
D-Link’s sole obligation shall be to repair or replace the defective Hardware during the Warranty Period at no charge to the original owner or to refund at D-Link’s sole discretion. Such repair or replacement will be rendered by D-Link at an Authorized D-Link Service Office. The replacement Hardware need not be new or have an identical make, model or part. - Page 34 D-Link may reject or return any product that is not packaged and shipped in strict compliance with the foregoing requirements, or for which an RMA number is not visible from the outside of the package. The product owner agrees to pay D-Link’s reasonable handling and return shipping charges for any product...
- Page 35 D-Link Corporation/D-Link Systems, Inc., as stipulated by the United States Copyright Act of 1976. Contents are subject to change without prior ©...
-
Page 36: Registration
Registration Register online your D-Link product at http://support.dlink.com/register/ 10/08/04...
