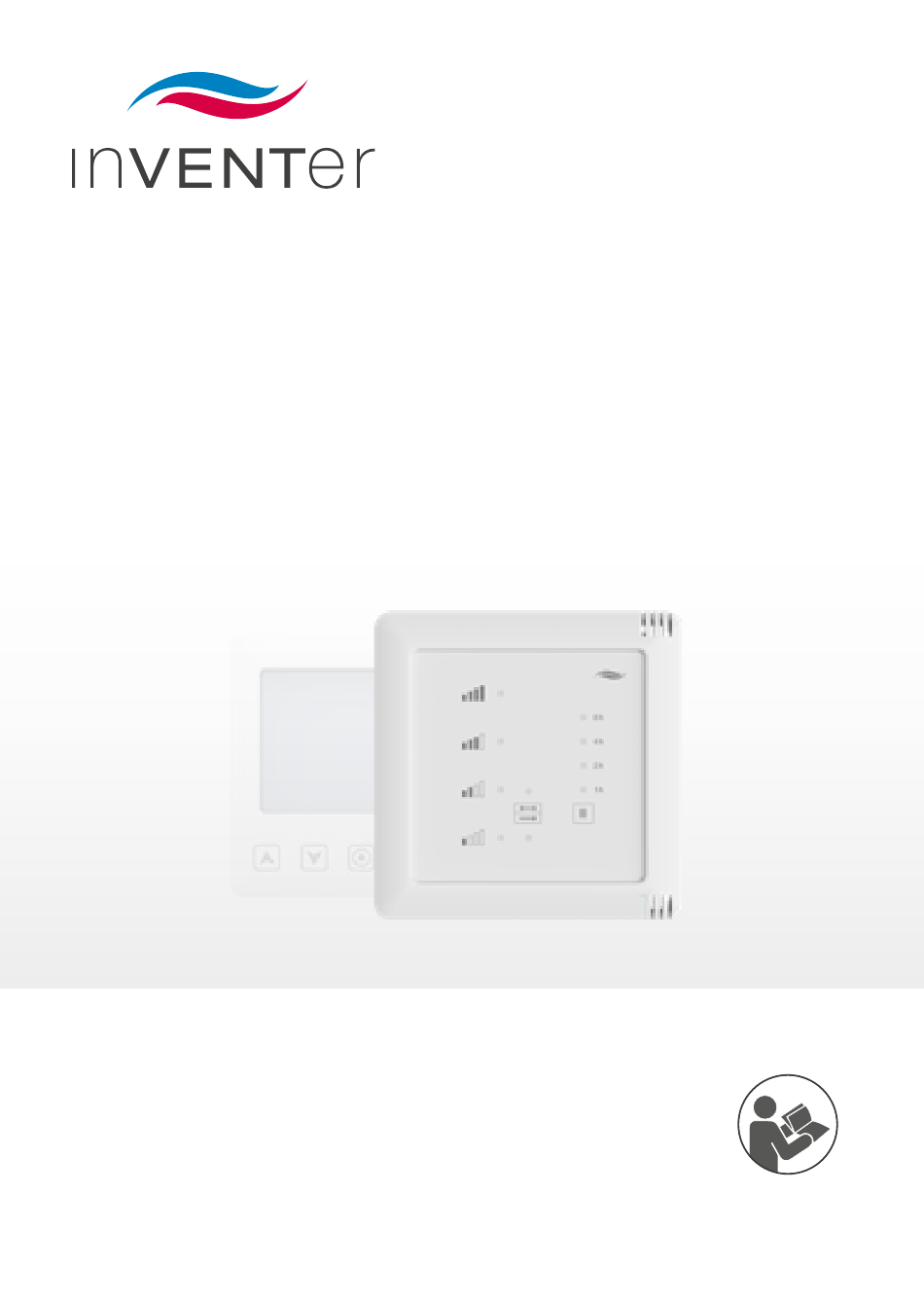

- Page 1 Quick Guide: Retrofitting Easy Connect e16 to Basic Connect e4/e8 1003-0123 → 1003-0155 1003-0159 1003-0156 1003-0160 1003-0157 1003-0161 www.inventer.eu 1003-0158 1003-0162...
-
Page 3: Table Of Contents
Table of Contents 1 Overview of Basic Connect e4/e8 controller ..........4 2 Preparing for retrofitting................5 3 Replacing the control unit ..............9 4 Coupling devices .................11 5 Guarantee and service .................14... -
Page 4: Overview Of Basic Connect E4/E8 Controller
1 Overview of Basic Connect e4/e8 controller Ventilation levels: Boost 100% Air Volume Flow Mode: Display LED Switch between heat recovery (orange LED) and ventilation Continuous illumination (blue LED) Flashing Flashing LED = time to change green/ Searching for the filter blue wireless channel Coupling mode... -
Page 5: Preparing For Retrofitting
2 Preparing for retrofitting Step 1: Check the battery level of all Easy Connect e16 humidity/temperature sensors (if present) inVENTer Mobile app: Controller Start menu → Device overview → Device 0 26°C Ventilation zone 1 ►The detailed view of the selected device Gerät/Sensor... - Page 6 5.20.0 There is a new version of For detailed information about updating Device/Sensor firmware available to download. Version 5.23.0 the system, see the inVENTer Connect Lüfter 1 Device software Click confirm to start firmware version user manual (5022-0006). update.
- Page 7 Step 3: Remove inner panel covers from ventilation devices a) Connect the inner panels b) Connect Twin+/Office/MaxAir inner panels...
- Page 8 Step 4: Reset all devices Press the coupling button on each device until the LED lights up green Connect inner panel: Button in housing (press with a small screwdriver) FTS19-Connect indoor: Button on underside of housing CS2-Connect | SK19-Connect: Button on the front bottom right of the housing. ...
-
Page 9: Replacing The Control Unit
3 Replacing the control unit Step 1: Remove the Easy Connect control unit Release the latch with a small screwdriver (1) and remove the control unit from the base plate (2) Step 2: Mount the Basic Connect control unit Hold the control unit at an angle, hook the upper hooks into the eyes in the base plate (1) and press the control unit onto the base plate (2) CLICK ►The control unit engages audibly. - Page 10 ►The controller switches to automatic channel search. If the firmware/hardware test returns an error, the LED flashes red con- tinuously. If that happens, contact your dealer or inVENTer customer service. Step 4: Automatic channel search After the firmware/hardware test is com-...
-
Page 11: Coupling Devices
4 Coupling devices A variety of system components can be coupled to the Basic Connect controller: • Basic Connect e4: up to 4 ventilation devices + 2 sensors • Basic Connect e8: up to 8 ventilation devices + 2 sensors Step 1: Activate coupling mode on the controller Press the mode button... - Page 12 Step 2: Couple devices Press the coupling button on the device be- ing coupled until the LED lights up turquoise Connect inner panel: Button in housing (press with a small screwdriver) FTS19-Connect indoor: Button on underside of housing CS2-Connect | SK19-Connect: Button on the front bottom right of the housing.
- Page 13 After coupling: Press the Pause button for 5 seconds until the Pause LEDs flash once ►The system switches off completely. ►The closure arms for the closure flaps move into the installation position. Mount the inner panel covers a) Connect the inner panels b) Connect Twin+/Office/MaxAir inner panels...
-
Page 14: Guarantee And Service
For information about operation, see the Quick Guide: User Manual for Basic Connect e4/e8 (5022-0016). 5 Guarantee and service inVENTer GmbH grants a 5-year guarantee on all electronic components. This covers premature product wear. In the event of a warranty or guarantee claim, contact the dealer or factory representative responsible for you. - Page 16 Gebrauchsanleitung der inVENTer-Lüftungsgeräte gültig. Lesen Sie sich die Originalanleitung gut durch und beachten Sie die Sicherheitshinwei- se. | This documentation is only valid in conjunction with the inVENTer ven- tilation system‘s original instructions. Carefully read the original documenta- tion before beginning your work and observe all safety and warning instructions. | Dit document is alleen geldig in combinatie met de originele gebruik- saanwijzing van de inVENTer ventilatie-units.
