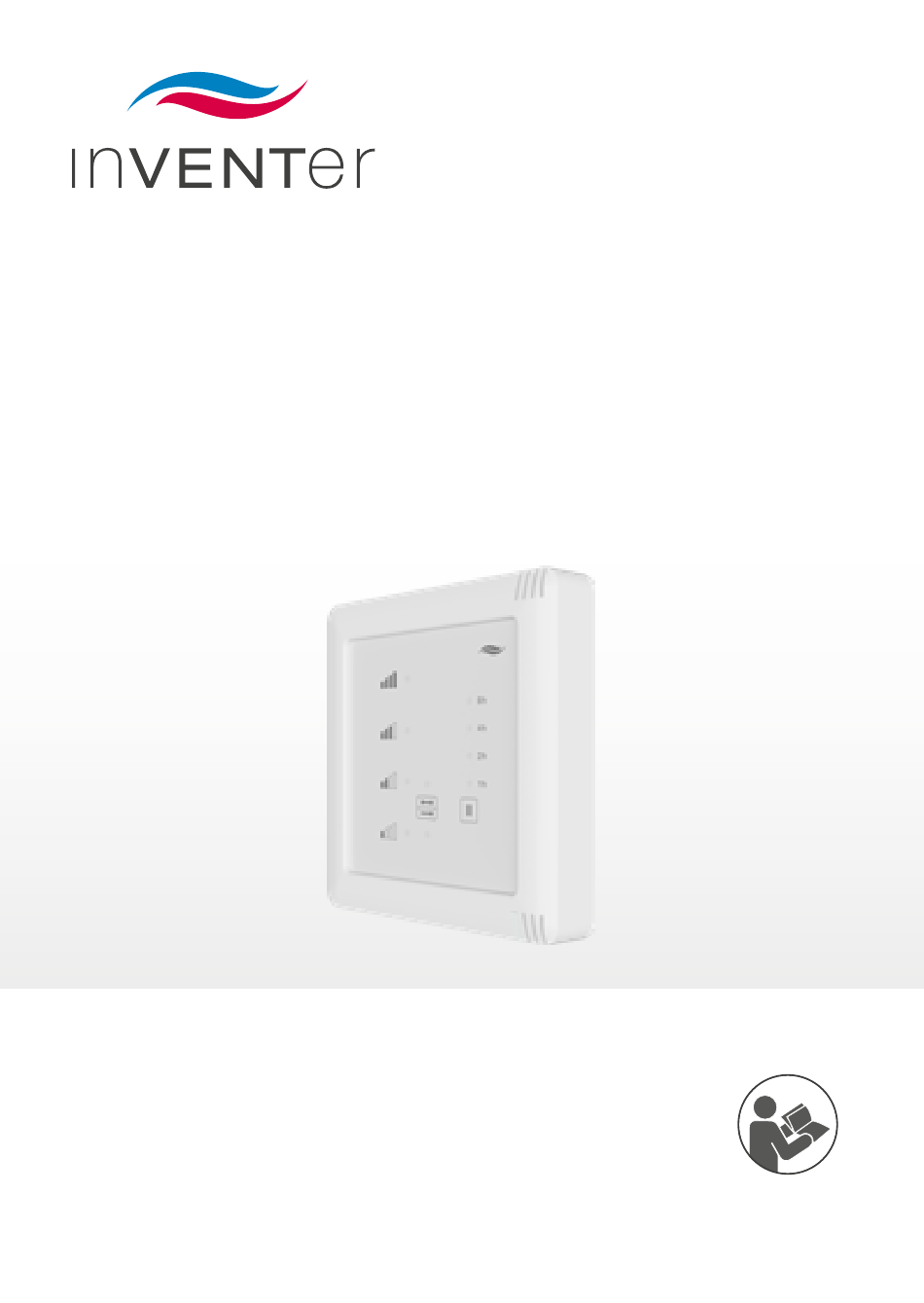

- Page 1 Quick Guide: Initial Setup Basic Connect e4/e8 1003-0155 1003-0159 1003-0156 1003-0160 1003-0157 1003-0161 www.inventer.eu 1003-0158 1003-0162...
-
Page 3: Table Of Contents
Table of Contents 1 System overview ..................4 2 Installation ....................6 3 Operating and display elements .............7 4 Performing initial setup ................8 5 Coupling devices ...................9 6 Guarantee and service .................14... -
Page 4: System Overview
1 System overview The inVENTer Connect controller platform is an innovative control system for decentralised inVENTer iV ventilation devices with heat recovery. It allows all devices in a system to be integrated into an 868 MHz wire- less network and controlled and programmed wirelessly. Depending on... - Page 5 (optional) is a wireless interface for integrating safety devices when the ventilation system is operated at the same time as fireplaces. “inVENTer Mobile”: The free app from inVENTer for Android™ and iOS The system can also be controlled and pro- grammed with the app (available only when an Easy Connect e16 controller is used).
-
Page 6: Installation
2 Installation Install the delivered components according to the instructions included: • Basic Connect e4/e8 5040-0069 • Easy Connect e16 5040-0032 • Connect inner panel 5040-0030 • Connect Twin+ inner panel 5022-0007 • Connect Office/MaxAir inner panel 5022-0007 • CS2-Connect CO... -
Page 7: Operating And Display Elements
3 Operating and display elements Ventilation levels: Boost 100% Air Volume Flow Mode: Display LED Switch between heat recovery (orange LED) and ventilation Continuous illumination (blue LED) Flashing Flashing LED = time to change green/ Searching for the filter blue wireless channel Coupling mode white... -
Page 8: Performing Initial Setup
►The controller switches to automatic channel search. If the firmware/hardware test returns an error, the LED flashes red con- tinuously. If that happens, contact your dealer or inVENTer customer service. Step 2: Automatic channel search After the firmware/hardware test is com-... -
Page 9: Coupling Devices
5 Coupling devices A variety of system components can be coupled to the Basic Connect controller: • Basic Connect e4: up to 4 ventilation devices + 2 sensors • Basic Connect e8: up to 8 ventilation devices + 2 sensors Before coupling:... - Page 10 Step 1: Activate coupling mode on the controller Press the mode button for 3 sec. until the display LED lights up and flashes white ►Coupling mode is activated. Coupling mode is active while the display LED flashes white (for about 5 minutes).
- Page 11 Step 3: Complete coupling Press the mode button until the display LED lights up white ►Coupling mode is terminated. After coupling: Press the Pause button for 5 sec. until the Pause LEDs flash once ►The system switches off completely. ►The closure arms for the closure flaps move into the installation position.
- Page 12 Connect the Twin+/Office/MaxAir inner panels Press the Pause button again for 5 sec. until the Pause LEDs go out ►The system switches on. ►The mode last selected is activated. For information about operation, see the Quick Guide: User Manual for Basic Connect e4/e8 (5022-0016).
-
Page 13: Guarantee And Service
6 Guarantee and service inVENTer GmbH grants a 5-year guarantee on all electronic components. This covers premature product wear. In the event of a warranty or guarantee claim, contact the dealer or factory representative responsible for you. For technical advice, contact our technical service staff. - Page 16 Gebrauchsanleitung der inVENTer-Lüftungsgeräte gültig. Lesen Sie sich die Originalanleitung gut durch und beachten Sie die Sicherheitshinwei- se. | This documentation is only valid in conjunction with the inVENTer ven- tilation system‘s original instructions. Carefully read the original documenta- tion before beginning your work and observe all safety and warning instructions. | Dit document is alleen geldig in combinatie met de originele gebruik- saanwijzing van de inVENTer ventilatie-units.
