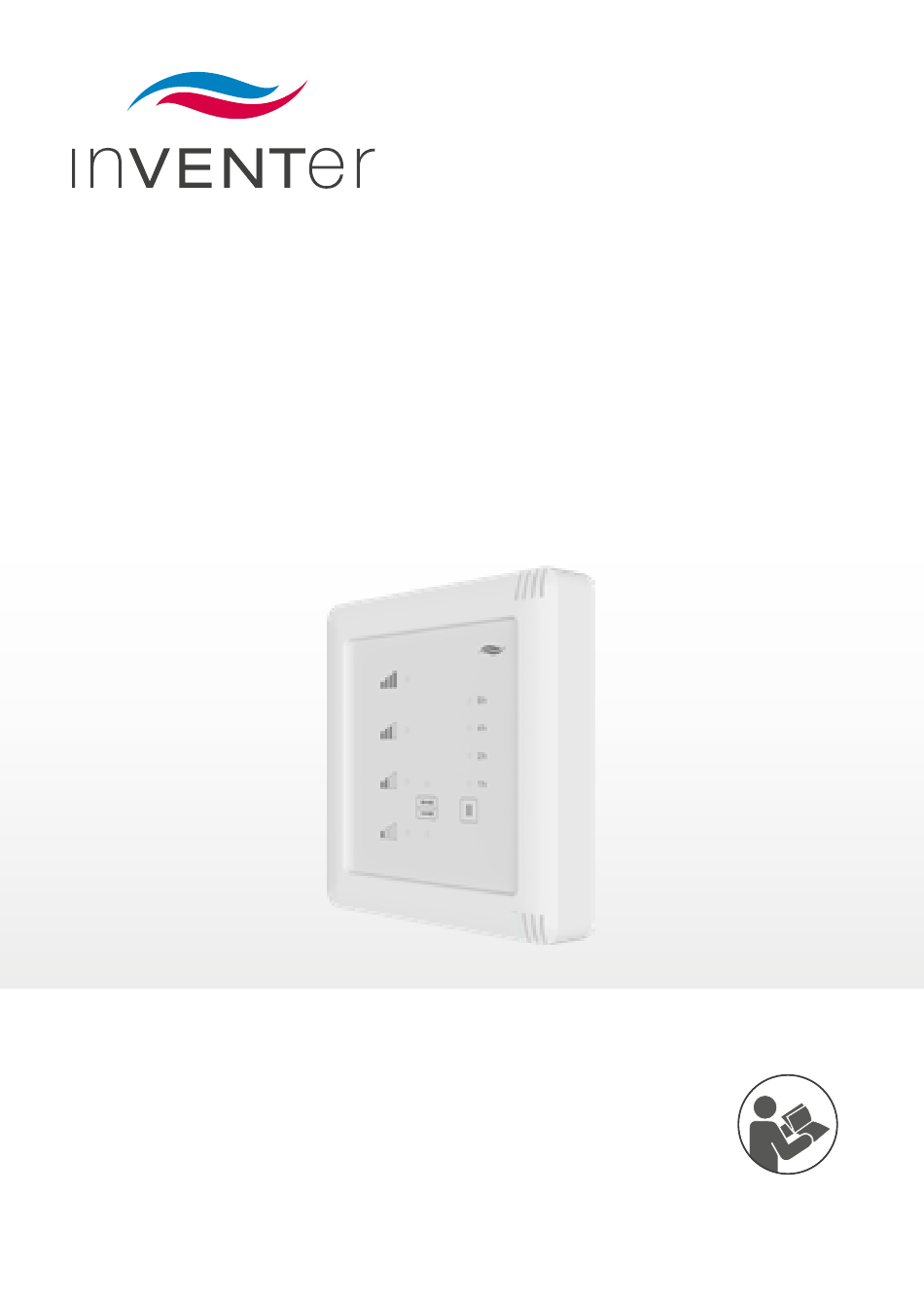

- Page 1 Quick Guide: User Manual Basic Connect e4 / e8 1003-0155 1003-0159 1003-0156 1003-0160 1003-0157 1003-0161 www.inventer.eu 1003-0158 1003-0162...
-
Page 3: Table Of Contents
Table of Contents 1 System overview ..................4 2 Operating and display elements .............6 3 Setting ventilation levels .................7 4 Setting ventilation mode .................7 5 Pausing ventilation .................7 6 Activating the button lock ..............8 7 Switching off the system ................8 8 Settings ....................9 8.1 Activating coupling mode ...............9 8.2 Confirming filter change ...............10 8.3 Resetting to factory settings ............11... -
Page 4: System Overview
1 System overview The inVENTer Connect controller platform is an innovative control system for decentralised inVENTer iV ventilation devices with heat recovery. It allows all devices in a system to be integrated into an 868 MHz wire- less network and controlled and programmed wirelessly. Depending on... - Page 5 (optional) is a wireless interface for integrating safety devices when the ventilation system is operated at the same time as fireplaces. “inVENTer Mobile”: The free app from inVENTer for Android™ and iOS The system can also be controlled and pro- grammed with the app (available only when an Easy Connect e16 controller is used).
-
Page 6: Operating And Display Elements
2 Operating and display elements Ventilation levels: Boost 100% Air Volume Flow Mode: Display LED Switch between heat recovery (orange LED) and ventilation Continuous illumination (blue LED) Flashing Flashing LED = time to change green/ Searching for the filter blue wireless channel Coupling mode white... -
Page 7: Setting Ventilation Levels
3 Setting ventilation levels • Press the ventilation buttons: = 25% = 35% = 50% = 75% x 5 seconds = 100% (max. 1 hour) 4 Setting ventilation mode • Press the mode button: = heat recovery = ventilation 5 Pausing ventilation •... -
Page 8: Activating The Button Lock
6 Activating the button lock • To activate Press the Mode button + Pause button: for 5 sec. until all LEDs flash once ► All buttons are locked. ► When a button is pressed, all LEDs illumi- nate briefly. • To deactivate Press the Mode button + Pause button again: for 5 sec. -
Page 9: Settings
► The Pause LEDs show the number of cou- pled devices (total of illuminated LEDs). • To terminate Press the mode button again: ► Coupling mode is terminated. For more information about device coupling, see the user manual for the inVENTer Connect controller system (5022-0006). -
Page 10: Confirming Filter Change
8.2 Confirming filter change • To confirm a filter change, press and hold the mode button: for 3 sec. until the display LED flash- es white for 3 sec. until the display LED lights up pink Release ► The filter change reminder is reset. ►... -
Page 11: Resetting To Factory Settings
8.3 Resetting to factory settings Upon reset to factory settings, all modified settings will be deleted. Coupled devices will also be disconnected. • To reset to factory settings, press and hold the mode button: for 3 sec. until the display LED flash- es white for 3 sec. -
Page 12: Reading Out Hours Of Operation
9 Reading out hours of operation • To read out hours Press the mode button + Pause button: for 10 sec. until the LEDs flash ► The flashing pattern of the LEDs shows the hours of operation (ventilation level LEDs: decimal place, sum of the Pause LEDs: number) Example: →... - Page 16 Gebrauchsanleitung der inVENTer-Lüftungsgeräte gültig. Lesen Sie sich die Originalanleitung gut durch und beachten Sie die Sicherheitshinwei- se. | This documentation is only valid in conjunction with the inVENTer ven- tilation system‘s original instructions. Carefully read the original documenta- tion before beginning your work and observe all safety and warning instructions. | Dit document is alleen geldig in combinatie met de originele gebruik- saanwijzing van de inVENTer ventilatie-units.
