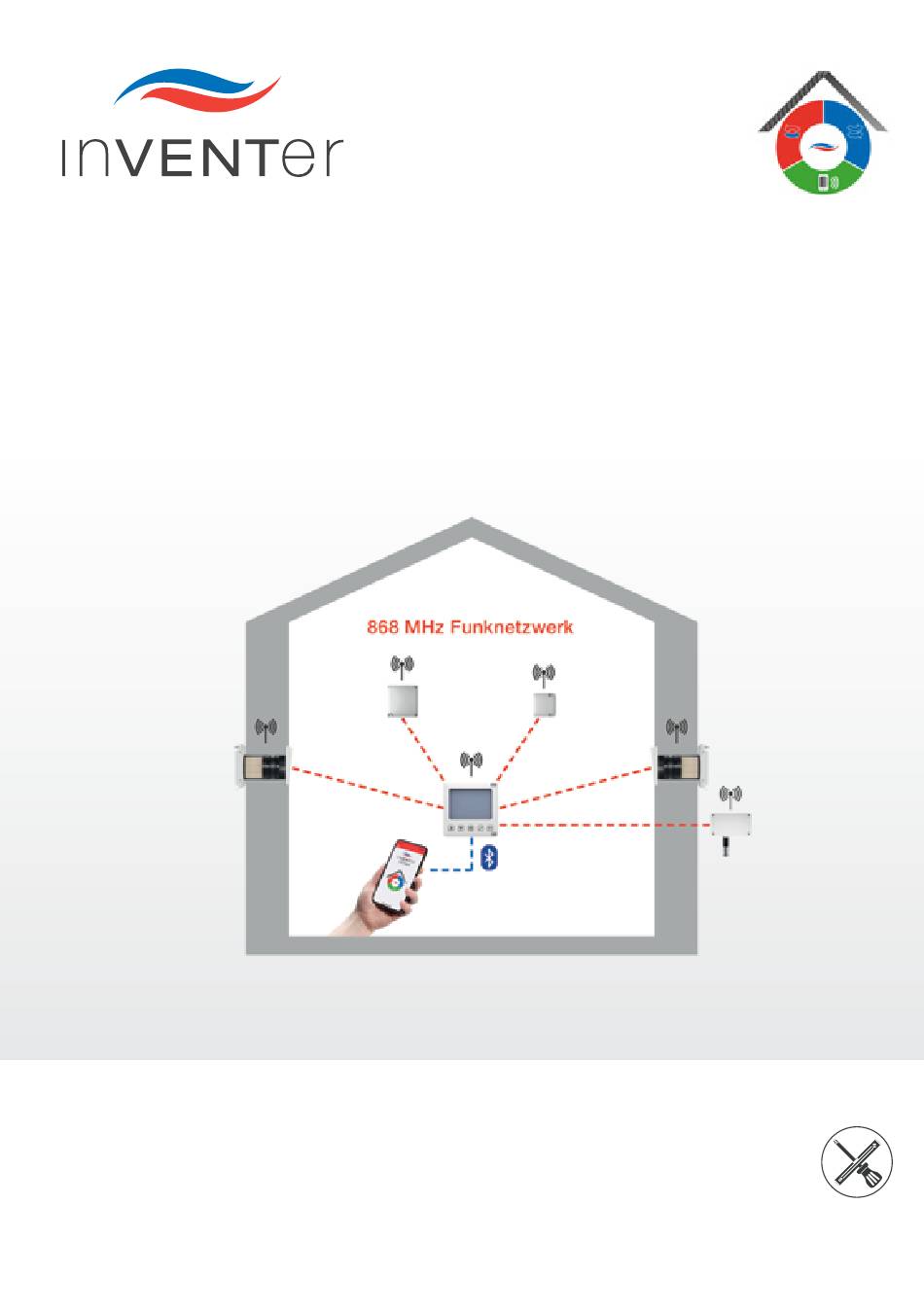

- Page 1 Installation instructions inVENTer Connect Controller platform www.inventer.de...
- Page 2 GmbH. ® The copyright to this document remains with the manufacturer. Rights to all content and images: © inVENTer GmbH 2021. All trademarks used in this document are the property of their respective manufacturers and are hereby acknowledged.
-
Page 3: Table Of Contents
Easy Connect e16 controller ..................58 Connect inner cover .......................58 Sensor technology ......................59 Scope of supply ........................61 Easy Connect e16 controller ..................61 Connect inner cover .......................61 Sensor technology ......................61 Troubleshooting ........................62 Warranty and guarantee......................63 10 Service ............................63 inVENTer Connect controller platform | Installation instructions... -
Page 4: User And Safety Instructions
Other symbols and notices used in this documentation In addition to the safety instructions, the following symbols are used: A TIP symbol indicates practical and useful tips for handling the devices on the inVENTer Connect controller platform. Before each installation step, any additional tools and materials required for the activity are listed. -
Page 5: Safety Instructions
Non-observance of safety instructions could result in injury and/or property damage. Intended use The inVENTer Connect controller platform may only be used to control the decentralised iV ven- tilation devices with heat recovery (iV-Smart+, iV14-Zero, iV-Light or iV-Compact product series, each equipped with the Connect inner cover) from inVENTer GmbH. -
Page 6: Qualified Personnel
Any kind of use other than the intended use will exclude all liability claims. Unintended use The inVENTer Connect controller platform is intended exclusively for the control of the ventilation devices specified in the section on intended use. Any other use is strictly prohibited. -
Page 7: System Overview
The inVENTer Connect controller platform is an innovative control system for decentralised iV ventilation devices with heat recovery featuring the use of the Connect inner cover from inVENTer GmbH. Up to 16 devices or sensors can be integrated into the inVENTer Connect controller platform. - Page 8 The desired devices can then be paired with the controller and thus integrated into the ventilation system ( see separate operating instructions). inVENTer Connect controller platform | Installation instructions...
-
Page 9: Connect Inner Cover
RS485 data cable) and replaces the standard inner covers of the iV-Smart+, iV14-Zero, iV-Light and iV-Compact ventilation devices to facilitate integration into the inVENTer Connect network. In addition to the radio interface, the inner covers have local control electronics, a power supply unit and an automatic closing flap. - Page 10 If the inner covers are paired with the controller and thus integrated into the ventilation system, they communicate and/or supply the measured values automatically. No further operation on the devices is required; settings are made via the controller. inVENTer Connect controller platform | Installation instructions...
-
Page 11: Sensor Technology
SYSTEM OVERVIEW Sensor technology Different sensors are available in the inVENTer Connect controller platform. These are required to monitor the relevant parameters in the various ventilation zones and to ensure automated ventilation control according to the set profiles. Demand-controlled ventilation is enabled in the ventilation zone assigned to the sensor on the basis of the respective reference variable. - Page 12 If the measured CO content of the indoor air exceeds the limit defined via the app (factory setting 1,500 ppm), all ventilation devices assigned to the ventilation zone are switched to ventilation operating mode, level 3. inVENTer Connect controller platform | Installation instructions...
- Page 13 If the measured values exceed the limit values stored in the ventilation profile (factory setting 70 %), all ventilation devices assigned to the ventilation zone are switched to ventilation operating mode, level 3. inVENTer Connect controller platform | Installation instructions...
- Page 14 The Outdoor humidity/temperature sensor measures the relative air humidity in the range 20 – 90 % and the temperature in the range -20 – 60 °C. inVENTer Connect controller platform | Installation instructions...
- Page 15 If the connection between the switching contact and the controller is interrupted, the system reacts in the same way as when the safety-relevant limit of the air pressure is exceeded. inVENTer Connect controller platform | Installation instructions...
-
Page 16: Inventer Mobile" App
SYSTEM OVERVIEW "inVENTer Mobile" app The "inVENTer Mobile" app (in the following text "app") is the free app from inVENTer for Android and iOS operating systems for controlling and programming the system. For a more in-depth setup and full functionality access, a mobile device with the "inVENTer Mobile" app installed is required. -
Page 17: Electrical Connection
The SK19-Connect switching contact has a 230 V connection, but also only communicates with the controller by radio. The interface for connecting an RS485 data cable is used here to connect the safety devices, e.g. a 4 Pa pressure sensor. inVENTer Connect controller platform | Installation instructions... -
Page 18: A: Connection Of The System Components Via 868 Mhz Radio Network
See Section 4: Installation location. 5 V DC Schaltkontakt SK19-Connect 1 2 3 max. 0,8 mm² 5 V DC 4-Pa-Drucksensor CO2-Sensor CS2-Connect Figure 9: Electrical connection of controller, inner cover and sensors via radio communication inVENTer Connect controller platform | Installation instructions... -
Page 19: B: Connection Of The System Components Via Rs485 Data Cable
Jumper setting 120 Ω End point Jumper setting 120 Ω Cable type Shielded cable with twisted wire pairs, e.g. CAT 5 network cable Max. recommended distance 500 m with fully equipped system Transmission rate 38,400 bps inVENTer Connect controller platform | Installation instructions... - Page 20 B. J-Y(ST)Y-2x2x0,8 5 V DC CO2-Sensor CS2-Connect 5 V DC Schaltkontakt SK19-Connect 1 2 3 max. 0,8 mm² 4-Pa-Drucksensor Figure 10: Electrical connection of the controller, inner cover and sensors via data cable communication inVENTer Connect controller platform | Installation instructions...
-
Page 21: Preparing For Installation
• Only install the Outdoor humidity/temperature sensor - on completed exterior walls. - out of direct sunlight. • The devices in the inVENTer Connect controller platform are mounted differently on interior or exterior walls: - Inner cover: using wall sleeves... -
Page 22: Junction Boxes | Connect Inner Cover Housing
2 Base plate fixing points (2 x) 3 Wall opening Ø 1 Flush-mounted plasterboard box 61x68 Figure 12: Flush-mounted plasterboard box 61x68 2 Plasterboard box fixing points (2 x) 3 Base plate fixing points (2 x) inVENTer Connect controller platform | Installation instructions... - Page 23 Wall opening for plasterboard wall box 68x61 ‒ ‒ Housing for Connect flush-mounted / ‒ wall-mounted inner cover Devices Base plate of controller, CO sensor and ‒ switching contact Table 5: Installation accessories and installation dimensions inVENTer Connect controller platform | Installation instructions...
-
Page 24: Creating A Wall Opening
Be aware of the maximum cable lengths ( 3: Electrical connection). Flush-mounted: Milled hole Ø 82 mm, depth 66 mm Plasterboard wall: Milled hole Ø 68 mm, depth 61 mm The wall opening for the box is created. inVENTer Connect controller platform | Installation instructions... - Page 25 Then mount the wall sleeve in the wall opening. The installation of the wall sleeve is not included in this document. It can be found in the installation instructions for your specific ventilation device. inVENTer Connect controller platform | Installation instructions...
-
Page 26: Laying The Cables
(see principle sketch below). RS 485 (max. 0,8 mm²) You have laid the RS485 data cable. Easy Inner cover Inner cover Inner cover Optional: Connect (ventilation (ventilation (ventilation sensor device) 1 device) 2 device) ...n inVENTer Connect controller platform | Installation instructions... -
Page 27: Junction Box | Mounting The Inner Panel Housing
► Insert the prepared box into the wall opening. ► Fill the space between the interior wall and the box with a suitable filler. The junction box is inserted. inVENTer Connect controller platform | Installation instructions... - Page 28 ► Align the housing using a spirit level. ► Mark the four corner drill holes. ► Drill the four holes with Ø 6 mm, min. 40 mm deep. ► Insert the dowels into the holes. inVENTer Connect controller platform | Installation instructions...
- Page 29 • Seal the housing dust-tight during the entire construction process. ► Reinsert the plaster protector into the housing. The Connect inner cover housing is installed. inVENTer Connect controller platform | Installation instructions...
-
Page 30: Installing The Devices
Flush-mounted installation mark- ing (top) Fixing points for box (4x) Locking hooks for snapping into the programming unit Figure 17: Dimensions of the base plate Figure 18: Front view of the base plate inVENTer Connect controller platform | Installation instructions... - Page 31 ► Carefully press the locking hook that can be reached in this way downwards. ► Swivel the base plate upwards ( ) and unhook it from the upper eyelets ( The programming unit and base plate are separate. inVENTer Connect controller platform | Installation instructions...
- Page 32 • Signal cable A (red) to "1". • Signal cable B (yellow) to "2". ► Push the RS485 data cable into the box. The RS485 data cable is installed. inVENTer Connect controller platform | Installation instructions...
- Page 33 Use the first two pins from the right to activate the RS485 data cable connection. The marking on the housing also serves as a guide: I = RS485 activated O = RS485 deactivated inVENTer Connect controller platform | Installation instructions...
- Page 34 ► Swivel the programming unit towards the base plate and then press it onto the base plate ( The programming unit should snap audibly into place. CLICK The controller is installed. inVENTer Connect controller platform | Installation instructions...
-
Page 35: Connect Inner Cover
Guide for hooking in the closing flap Figure 21: Dimensions of the surface- Figure 20: Dimensions of the electronics cover mounted frame Lug for hooking into the guide of the electronics cover Figure 22: Dimensions of the closing flap inVENTer Connect controller platform | Installation instructions... - Page 36 CLICK ► Swivel the holding plate towards the housing and then gently press it into it ( The holding plate should snap audibly into place. inVENTer Connect controller platform | Installation instructions...
- Page 37 The mains connection cable is installed. Requirements: • A thermal accumulator insert of the inVENTer venti- lation system is mounted in the wall sleeve accord- ing to the corresponding installation instructions. ► Connect the cables (blue, red, black) to the plug-in connector of the ventilation device.
- Page 38 On delivery, the jumper is only plugged into one pin (deactivated) or is included as an accessory. Use the two pins to activate the connection with the RS485 data cable. inVENTer Connect controller platform | Installation instructions...
- Page 39 ► Slide the electronics cover into the housing. ► Fasten the electronics cover to the housing with the 4 screws from the accessory pack. The electronics cover is installed. inVENTer Connect controller platform | Installation instructions...
- Page 40 Position the filter firmly between the filter holders. The filter is installed. ► Hook the lugs of the closing flap into the electronics cover at the bottom ( inVENTer Connect controller platform | Installation instructions...
- Page 41 Magnets hold the closing flap in the closed position. The engaged spring clip prevents possible falling off when opening/closing the closing flap. The closing flap is installed. inVENTer Connect controller platform | Installation instructions...
-
Page 42: Fts19-Connect Indoor Humidity/Temperature Sensor
Figure 25: Base plate fixing elements 180° TIP: The controls are located on the underside of the Indoor humidity/ temperature sensor. Opening for snap-in connection Button Figure 26: FTS19-Connect Indoor humidity/temperature sensor control element inVENTer Connect controller platform | Installation instructions... - Page 43 ► Swivel the housing away from the base plate ( and lift the upper hooks of the housing out of the eyelets on the base plate. ► Remove the housing from the base plate. The housing and base plate are separate. inVENTer Connect controller platform | Installation instructions...
- Page 44 ► Mark the drill holes. The drilling template is prepared. ► Drill the dowel holes at the markings. ► Insert the dowels. The wall is prepared for screwing on the base plate. inVENTer Connect controller platform | Installation instructions...
- Page 45 ► At the bottom, slide the housing over the locking hook and press it gently onto the base plate until it clicks into place. CLICK The Indoor humidity/temperature sensor is installed. inVENTer Connect controller platform | Installation instructions...
-
Page 46: Fts19-Connect Outdoor Humidity/Temperature Sensor
Figure 29: Dimensions of the installation holes Figure 28: Holes in the housing TIP: The controls are located in housing of the Outdoor humidity/temperature sensor. Button LED (multi-coloured) Figure 30: Controls in the housing inVENTer Connect controller platform | Installation instructions... - Page 47 Installing the Outdoor humidity/temperature sensor The housing of the Outdoor humidity/temperature sensor is mounted directly on the wall. The batteries are then inserted into the housing and the cover is screwed back on to the housing. inVENTer Connect controller platform | Installation instructions...
- Page 48 ► Mark the drill holes. The drilling template is prepared. ► Drill the dowel holes at the markings. ► Insert the dowels. The wall is prepared for screwing on the housing. inVENTer Connect controller platform | Installation instructions...
- Page 49 ► Slide the cover onto the housing. ► Screw the 4 screws back in to fix the cover to the housing. The Outdoor humidity/temperature sensor is installed. inVENTer Connect controller platform | Installation instructions...
-
Page 50: Cs2-Connect Co Sensor (Incl. Humidity/Temperature Sensor)
Installation marking up arrow Fixing points for box (4x) Locking hooks for snapping into the sensor Figure 34: Dimensions of the base plate Figure 35: Front view of the base plate inVENTer Connect controller platform | Installation instructions... - Page 51 ► Carefully press the locking hook that can be reached in this way downwards. ► Swivel the base plate upwards ( ) and unhook it from the upper eyelets ( The housing and base plate are separate. inVENTer Connect controller platform | Installation instructions...
- Page 52 • Signal cable A (red) to "1". • Signal cable B (yellow) to "2". ► Push the RS485 data cable into the box. The RS485 data cable is installed. inVENTer Connect controller platform | Installation instructions...
- Page 53 ( ► Swivel the housing towards the base plate and then gently press it onto it ( The housing clicks audibly into place. CLICK The CO sensor is installed. inVENTer Connect controller platform | Installation instructions...
-
Page 54: Sk19-Connect Switching Contact
Installation mar- king up arrow Fixing points for box (4x) Snap-in hooks for snapping into the switching con- tact Figure 39: Dimensions of the base plate Figure 40: Front view of the base plate inVENTer Connect controller platform | Installation instructions... - Page 55 ► Carefully press the locking hook that can be reached in this way downwards. ► Swivel the base plate upwards ( ) and unhook it from the upper eyelets ( The housing and base plate are separate. inVENTer Connect controller platform | Installation instructions...
- Page 56 ► Slide the mains connection cable and connecting cable for e.g. the pressure monitor into the box. The mains connection cable and the connecting cable for e.g. the pressure monitor are installed. inVENTer Connect controller platform | Installation instructions...
- Page 57 ( ► Swivel the housing towards the base plate and then press it onto it ( The housing clicks audibly into place. CLICK The switching contact is installed. inVENTer Connect controller platform | Installation instructions...
-
Page 58: Technical Data
Surface-mounted: 271 x 271 x 41 Installation depth, flush [mm] + 38 ISO Coarse 45 % Standard filter filter class (DIN EN ISO 16890) (G3 according to EN779) Conformity Table 7: Technical data - inner cover inVENTer Connect controller platform | Installation instructions... -
Page 59: Sensor Technology
20 – 90 65 x 112 x 40 (housing only) Dimensions [H x W x D in mm] 115 x 112 x 40 (with measuring sensor) Conformity Table 9: Technical data - Outdoor humidity/temperature sensor inVENTer Connect controller platform | Installation instructions... - Page 60 Power consumption in standby [W] Radio frequency [MHz] Radio network range [m] Free field: 100 Dimensions [H x W x D in mm] 90 x 90 x 17 Conformity Table 11: Technical data - switching contact inVENTer Connect controller platform | Installation instructions...
-
Page 61: Scope Of Supply
FTS19-Connect Indoor humidity/temperature sensor including 1003-0125 batteries (2x AAA) FTS19-Connect Outdoor humidity/temperature sensor including 1003-0126 batteries (2x AAA) CS2-Connect CO sensor 1003-0127 SK19-Connect switching contact 1003-0129 Table 14: Sensor technology scope of delivery inVENTer Connect controller platform | Installation instructions... -
Page 62: Troubleshooting
Battery status of the Indoor/Outdoor humidity/temperature sensors is low F 05 Switching contact triggered or switching contact is out of operation F 06 Filter change required F 07 Ventilation system must be cleaned inVENTer Connect controller platform | Installation instructions... -
Page 63: Warranty And Guarantee
Outside Germany, the national warranty provisions of the country in which the system is sold apply. Please contact the distributor for your country. Manufacturer guarantee inVENTer GmbH provides a five-year guarantee for electronic components. This covers premature product wear. Further information about the guarantee is available at www.inventer.de/garantie. - Page 64 GmbH Ortsstraße 4a 07751 Löberschütz, Germany www.inventer.de Subject to modifications. We accept no liability for printing errors. Item number: 5022-0008 Version: 1.0 – 09/2021...
