- Page 1 Aug09 2023 RD06 user manual V2.2 RD06 user manual V2.2 - 1 -...
-
Page 2: Product Overview
(850,900,1800,1900MHz), RS485, MODBUS-RTU and other communication interface. RD06 uses high-performance 32-bit industrial processor and industrial-grade wireless module, with high reliability, stability and data security. TZ-RD06 support the local sound and light alarm, SMS alarm, GPRS alarm and other alarm methods. 2 Product feature ... -
Page 3: Definition Of Interfaces

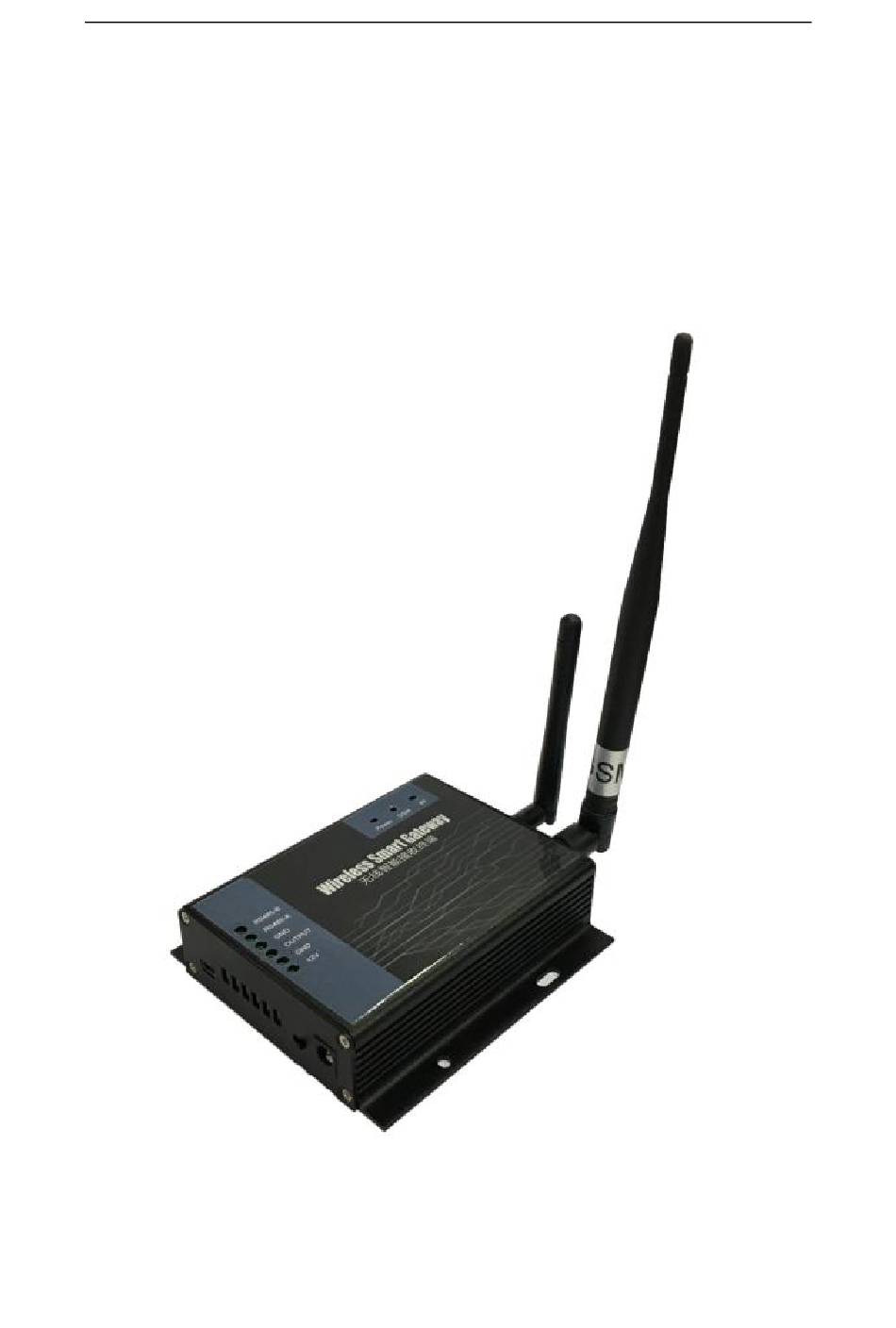

Aug09 2023 RD06 user manual V2.2 Flash Memory 32Mb/about 8600 Net weight 0.27kg Operating temperature. -40°C~+60°C Operating humidity. 5% ~ 95% (non-condensing) Dimension 112mm*105mm*27mm 4 Definition of interfaces 4.1 Appearance - 3 -... - Page 4 Aug09 2023 RD06 user manual V2.2 4.2 All interfaces Interfaces Functions A.LED light RF、GSM、Power Expand functions（Pls check explanation B.Expansion interface following） C.USB Configure device and save log D.Switch of power Turn on/off E.Charge interface Connect power plug F.SIM card slot Insert SIM card G.RF antenna interface Connect RF antenna...
-
Page 5: Rs485 Data Format
Aug09 2023 RD06 user manual V2.2 On 1second,off 2second Can’t connect with GSM network On 0.5second,off 0.5second Can’t connect with SIM card Red light - Charging Charging light status Explanations Keep on always OTA、 Read or write configure、connect power Sparkling each 2seconds not connect power 6 GPRS data protocol... - Page 6 RD06 `s password, and the initial password is 000000 Note: (1) The default has been configured for 5 minutes to send a GPRS data to the Tzone platform; If the SIM card needs to set APN to be used, please set 011 instructions.
- Page 7 Aug09 2023 RD06 user manual V2.2 Extend setting *$$$$$$,008,ABCDEFG# A=0,disable TAG ACK download function; A=1,enable TAG ACK download function(default); Note:when the TAG ACK is disable, the machine will no longer reply the ACK information to the TAG. B=0, C=0, D=0, default, D=1,Close all SMS function’...
- Page 8 Aug09 2023 RD06 user manual V2.2 word# Username: must<28 character Password: must<28 character * If haven't username or password, then left it blank. For example: *000000,011,CMNET,,# Set DNS *$$$$$$,014, X,DNS1,DNS2# X=0 Disable the DN(default) Disable the DNS X=1 Enable the DNS DNS is the domain name server , xxx.xxx.xxx.xxx Set IP Address &...
- Page 9 Aug09 2023 RD06 user manual V2.2 RS485 setting *$$$$$$,040, A,B,C,D # A:Baud rate [1200,115200], 9600(default); B:Data bit, 0-8bit(default), 1-9bit； C:Stop bit, 0-0.5bit, 1-1bit(default), 2-1.5bit, 3-2bit D:Parity bit, 0-null(default), 1-Even parity, 2-Odd parity RS485 working mode *$$$$$$,041, X# X:0-Report automatically； X:1-modbus, Should add TAG to channels(command 144) ,default；...
- Page 10 Aug09 2023 RD06 user manual V2.2 exceed RH_H、under RH_L, RD06 alert; X=2, If tag’s status means alert RD06 alert; X=3, If tag’s temperature exceed Temp_H RD06 alert, when temperature under Temp_L RD06 relieve alert; If tag’s humidity exceed RH_H RD06 alert, when humidity under RH_L RD06 relieve alert;...
- Page 11 Aug09 2023 RD06 user manual V2.2 Temp_H: high temperature threshold, [-55~125],unit:℃, default: 100; Temp_L: low temperature threshold, [-55~125],unit:℃, default: 0 RH_H: high humidity threshold, [0~100],unit:%, default: 80 RH_L: low humidity threshold, [0~100],unit:%, default: 0 Add a TAG *$$$$$$,144,X,Y,ID# X:TAG Type, X=0 (TAG06/06B), Y:Channel,[1,100];...
-
Page 12: Data Query
10 Data query TZONE cloud platform. Please register an account and add a device. After adding a device, you can query the data by device ID. TZONE cloud platform Website: http://cloud.tzonedigital.com/ Tzone Server Domain: t-gateway.tzonedigital.cn(default) Tzone Server Port: 54929 (default) URL：http://g.cloud.tzonedigital.cn:18811/Receive（HTTP）... - Page 13 Aug09 2023 RD06 user manual V2.2 - 13 -...
