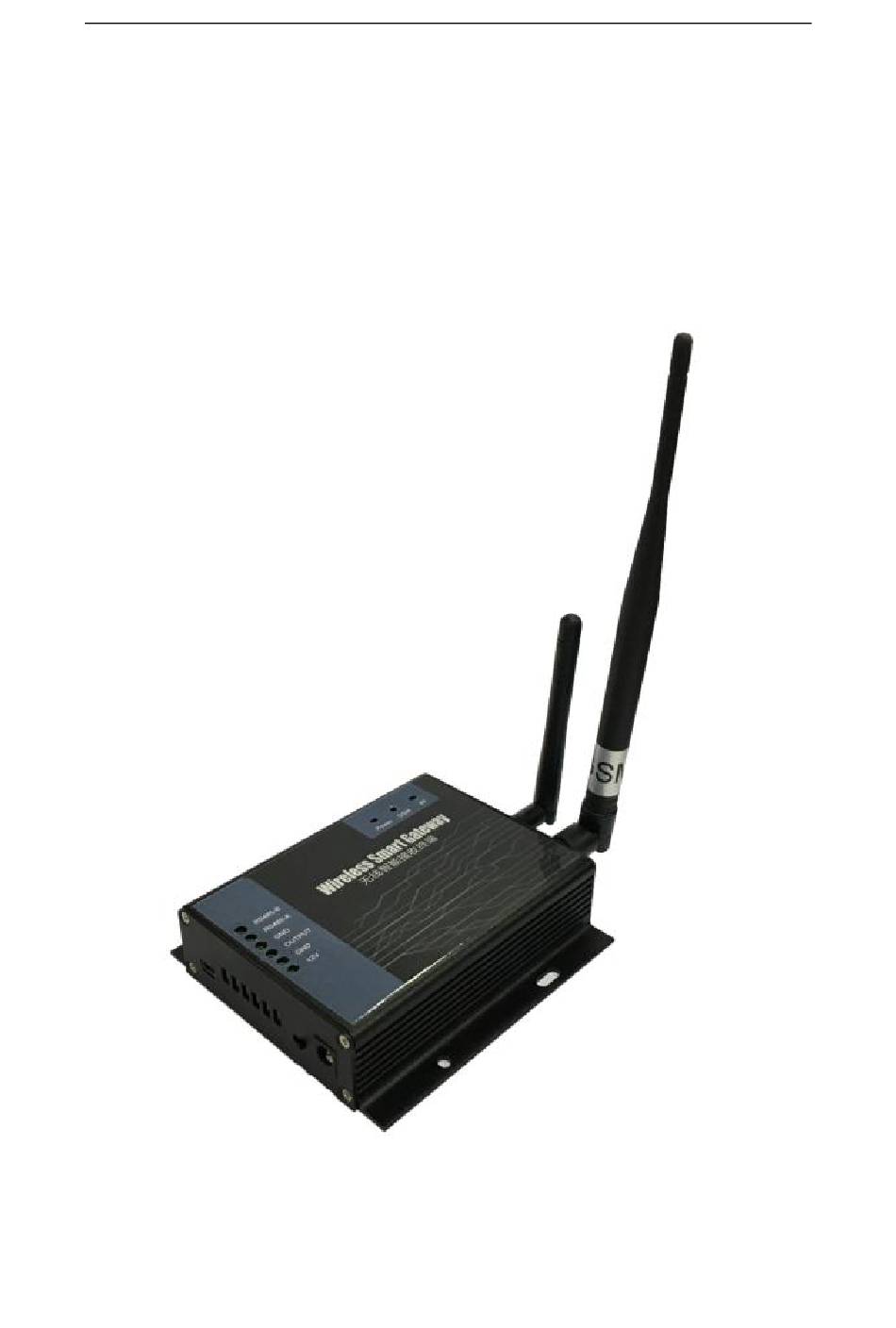

- Page 1 Jan9 2018 RD06 user manual V 1.4 RD06 user manual V1.4 - 1 -...
-

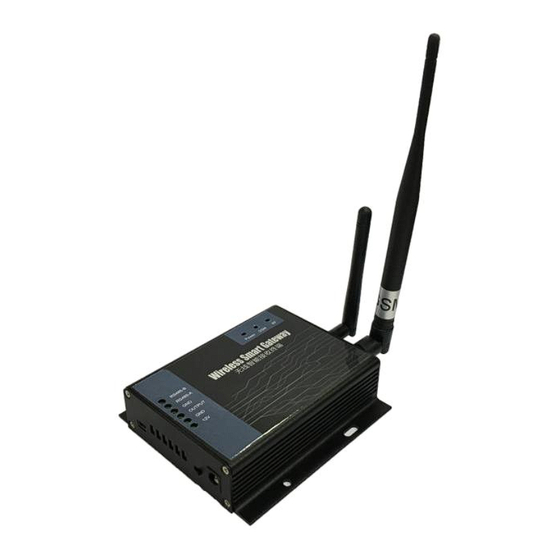

Page 2: Product Overview
(850,900,1800,1900MHz), RS485, MODBUS-RTU and other communication interface. RD06 uses high-performance 32-bit industrial processor and industrial-grade wireless module, with high reliability, stability and data security. TZ-RD06 support the local sound and light alarm, SMS alarm, GPRS alarm and other alarm methods. 2 Product feature Four band(850、900、1800、1900MHz) -
Page 3: Definition Of Interfaces
Jan9 2018 RD06 user manual V 1.4 Operating temperature. -40°C~+60°C Operating humidity. 5% ~ 95% (non-condensing) Built-in battery 3.7V/850mAh Dimension 112mm*105mm*27mm 4 Definition of interfaces 4.1 Appearance - 3 -... - Page 4 Jan9 2018 RD06 user manual V 1.4 4.2 All interfaces Interfaces Functions A.LED light RF、GSM、Power Expand functions（Pls check explanation B.Expansion interface following） C.USB Configure device and save log D.Switch of power Turn on/off E.Charge interface Connect power plug F.SIM card slot Insert SIM card G.RF antenna interface Connect RF antenna...
-
Page 5: Rs485 Data Format
The following commands is ASCII, can be set via SMS, or can be set by serial port and GPRS. Note: the default has been configured for 5 minutes to send a GPRS data to the Tzone platform; If the SIM card needs to set APN to be used, please set 011 instructions. - Page 6 Jan9 2018 RD06 user manual V 1.4 Notes: The username and password could to be null. For example: *000000,011,cmnet,,# Explication: The China Mobile’s APN is “cmnet”, and the username and password are empty. After you send the command of SMS to device, it will reply to your mobile phone: Receive:’011’OK *000000,011,cmnet,,# If you send the command of USB to device, the serial port tool will shows:...
- Page 7 Jan9 2018 RD06 user manual V 1.4 Extend setting *$$$$$$,008,ABCDEFG# A=0, B=0, C=0, D=0, default, D=1,Close all SMS function’ E=0, F=0, G=0,disable ACK function, default, G=1,enable ACK function Change band *$$$$$$,009,S# S=0, work in 900/1800 S=1, work in 850/1900 S=2, Automatic selection S=3, not set(default) *note: the default of parameter is S=3, not set the frequency...
- Page 8 Jan9 2018 RD06 user manual V 1.4 X=1 Enable GPRS Function (default) Set the time intervals of GPRS *$$$$$$,018,X# X=0 stop send time interval Data GPRS =[10,6000] Time interval (Unit: sec) (default:300) Set the GPRS mode *$$$$$$,019,X# X=0, Use the UDP mode X=1, Use the TCP mode (default) Local digital OUTPUT alarm...
- Page 9 Jan9 2018 RD06 user manual V 1.4 RS485 Anti-Reread *$$$$$$,043, X# X:[0-3600],unit:s,default:0 RS485 send once tag data within this time period, no matter RD06 receive this tag many times. Only use in RS485 Report automatically mode Max tag online time *$$$$$$,044, X# X:[0-86400],unit:s,default:300 RD06 will think tag is offline if...
- Page 10 Jan9 2018 RD06 user manual V 1.4 Temp_L、humidity exceed RH_H、under RH_L, RD06 alert; X=2, If tag’s status means alert RD06 alert; X=3, If tag’s temperature exceed Temp_H RD06 alert, when temperature under Temp_L RD06 relieve alert; If tag’s humidity exceed RH_H RD06 alert, when humidity under RH_L RD06 relieve alert;...
- Page 11 Jan9 2018 RD06 user manual V 1.4 Temp_H: high temperature threshold, [-55~125],unit:℃, default: 100; Temp_L: low temperature threshold, [-55~125],unit:℃, default: 0 RH_H: high humidity threshold, [0~100],unit:%, default: 80 RH_L: low humidity threshold, [0~100],unit:%, default: 0 Add a TAG *$$$$$$,144,X,ID# X:Channel,[1,100]; ID:TAG ID,8 character;...
- Page 12 Jan9 2018 RD06 user manual V 1.4 Initialization Tracker *$$$$$$,990,099# It will set all parameter to factory default value (Excluding the Password). Reboot now *$$$$$$,991# Reboot the RD06 2. Data query Two ways to query the temperature and humidity data. 2.1 Temperature and humidity web cloud platform.
- Page 13 Jan9 2018 RD06 user manual V 1.4 For more details, please check the "Help" button in the upper right corner of the temperature and humidity monitoring platform: - 13 -...
