TZ-BT06 User Manual
V1.1
1 Product overview

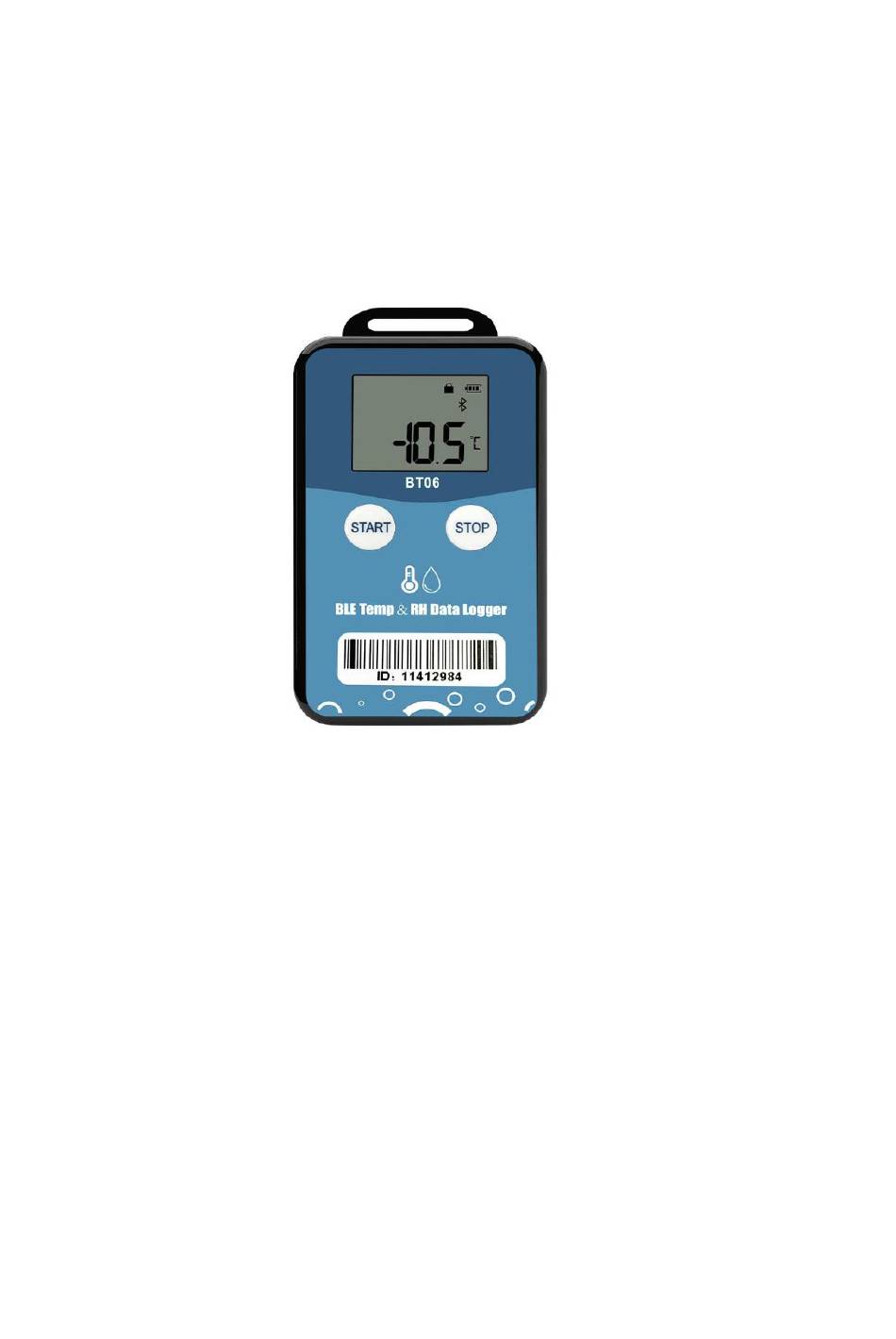

TZ-BT06 is Bluetooth Low Energy temperature&humidity data logger with the latest
Bluetooth 5.0 technology. It can collect temperature&humidity of the surrounding
environment. Such data can be recorded as history data. BT06 can store up to 32000
pieces of the temperature&humidity data.when the long range mode is enabled, the
transmission distance is up to 300 meters, and the LCD screen can view the
temperature&humidity data in real time. Mobile phone with Bluetooth 4.0 or above
can download and install App.It can store and monitor temperature&humidity of the
environment comprehensively. Its characteristics are small-sized, low-weighted,
easily portable and highly accurate for wide use in cold chain logistics, archives, labs,
museums, etc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TZ-BT06 and is the answer not in the manual?

Questions and answers

Related Manuals for Tzone TZ-BT06

Summary of Contents for Tzone TZ-BT06

  • Page 1 V1.1 1 Product overview TZ-BT06 is Bluetooth Low Energy temperature&humidity data logger with the latest Bluetooth 5.0 technology. It can collect temperature&humidity of the surrounding environment. Such data can be recorded as history data. BT06 can store up to 32000 pieces of the temperature&humidity data.when the long range mode is enabled, the...

  • Page 2: Product Application

    2 Product application 1. Refrigerated storage and transportation; 2. Archives; 3. Experimental (test) rooms; 4. Workshop; 5. Museums; 6. Pharmaceutical environment; 7. Fresh transport. 3 Product features 1. High accuracy and stability; 2. Bluetooth 5.0; 3. Long distance wireless transfer; 4.
  • Page 3 1. Being close to a metal object will interfere with the signal, causing the signal to be weaken; 2. Note the distance between TZ-BT06 and the receiver to guarantee the accuracy of receiving 3. Keep away from water and corrosive objects.

  • Page 4: Lcd Display Description

    Device status Operation Instructions Under unopened state and The broadcast switch from long range mode Switching broadcast in long range to standard mode, support Bluetooth 5.0 or broadcast Mode mode,short press below to receive broadcast data for 15 the“Start”button seconds, then back to long range mode again The broadcast is switch to 0.5 second interval Open state, short press the Turn off...

  • Page 5: Device Registration

    8 Battery status displays description Battery Capacity Full Good Medium Lower (Please replace battery) 9 APP ‘Temp Logger’ is a free mobile applications which provided by our company to the users, can connect the BT06 through the Bluetooth of the mobile devices and do the settings,data transmission, recording, synchronization, send to email.

  • Page 6: Device View

    9.2.2 Enter the device connection page and click Connect. After a successful connection, the device ID will be displayed on the "Devices" page, indicating that the device has been registered successfully . 9.2 Device View Click the icon in the upper left corner of the home screen to expand the main menu. You can select the menu function and click “device”...
  • Page 7 9.2.1 To view device information The name, ID, MAC, temperature/humidity data, model, and status of all the current devices can be viewed, or you can view the specific device information by ID, name, and MAC.
  • Page 8 Status description of the device in different symbols: Temperature Humidity icon Status Status icon display display Temperature Humidity normal normal Upper Upper temperature humidity alarm alarm Lower Lower temperature humidity alarm alarm Upper and lower Upper and lower temperature humidity alarm alarm 9.2.2 Delete the device: Long press to delete the device:...

  • Page 9: Device Connection

    9.3 Device connection Click a single device quickly to enter the connection interface. It will display the temperature/humidity, voltage, RSSI, alarm status and logger status of the device. Click "CONNECT," and jump to update after the connection is successful, indicating that the device has been successfully connected and read the current data content.
  • Page 10 Note: The device will not update the data in the connection process. By default, the device will be disconnected after 1 minute and the four buttons at the bottom will become gray and cannot be clicked again. 9.3.1 Device access key Click "Access Key"...
  • Page 11 Note: The smartphone must have a mailbox APP and login account to send email. B: Chart:...

  • Page 12: Configure Device

    C: List: 9.4 Configure device After connection, when the device does not start recording, you can click "Configure" to set the device.
  • Page 13 9.4.1 Device name: The device name can be modified (up to 15byte) by users. 9.4.2 Basic settings: A: Broadcast interval: The device broadcast interval (range: 0.5s ~30 s), B: Transmission power: The device transmission power(range:-20dbm~8dbm, default:4dbm,-20dbm is the closest distance, 8dbm is the furthest distance). C: Long range mode:on/off(Note:if long range mode is on, the phone Bluetooth 5.0 is below unable to receive broadcast data).

  • Page 14: Start/Stop Recording

    9.5 Start/Stop recording Can be started and stopped record by the start/stop button. Note: Click save, historical data will be deleted. 9.6 Data files Click the "Data Files" menu bar to enter to the data files interface. The functions of the device interface are as follows: 9.6.1 To View a single data file The time displayed in this file is the time when the device data is read for the first...

  • Page 15: System Setting

    9.6.3 Delete data file Check the data file and click "Delete" to delete the data file. 9.7 System setting Click the "System setting" menu bar to enter the system setting interface. The functions of the system setting interface are as follows: 9.7.1 Device Management: 1.
  • Page 16 9.7.3 Report settings(Only for generating reports through the APP): 1. Include Tabular Data in PDF: Select include or exclude (default: include). 2. Include Tabular Data in CSV: Select include or exclude (default: include). 9.7.4 Scan and connect device Settings: A. Connection Timeout: If there is no connection within the specified time, it is considered as connection timeout(default: 20 seconds).
