Tzone PDF USB TEMPERATURE DATA LOGGER Quick Start Manual

PDF USB
TEMPERATURE DATA LOGGER

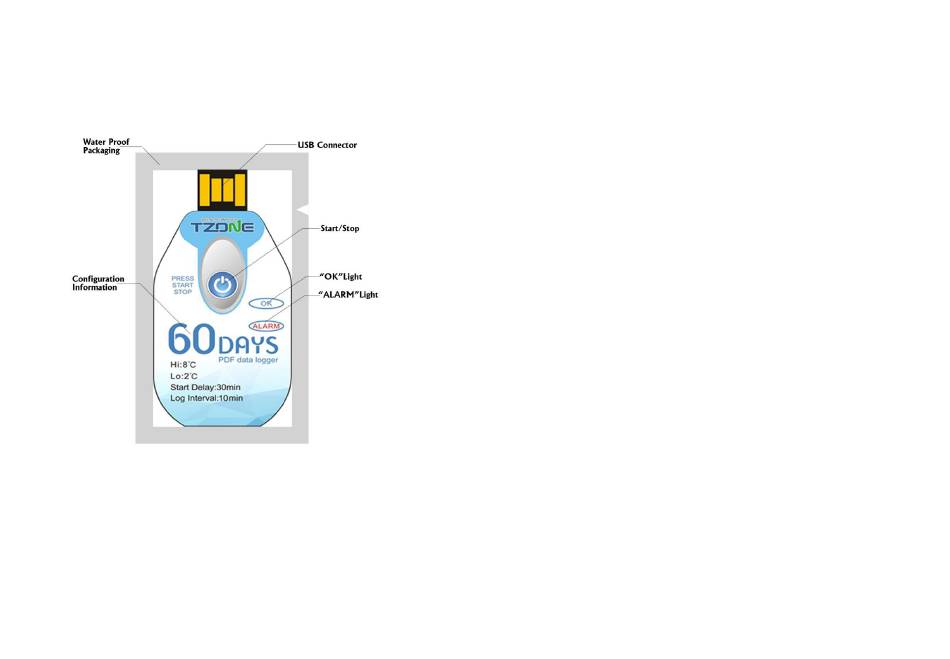

Product Profile：
PDF USB Temperature Data Logger is one kind of TZONE cold chain data logger. It is
mainly used for temperature recording during storage and transportation of foodstuff,
medicine, chemicals and other products.After record finish,it can be inserted to computer's
USB port and get PDF report directly.
1
Operating Instructions:
1. Press and hold the button more than 3 sec.then the "OK"light will brighten in 3
sec.,which indicates a successful starting,then you can put the data logger in the place
where you want to monitor and record.
2. When logging,the "OK" LED will flash in green every 10s,if there haven`t any alarm
events happened . Or the "ALARM" LED will flash in red every 10s, if there have any
alarm events happened.
3. When the memory full or press and hold the button for more than 3 sec.the
"ALARM"light will brighten in 3 sec.,which indicates a successful stopping.
4. Tear or cut off the plastic bag and insert the logger into an available USB port on a
PC."OK"light and "ALARM"light will flash in turn when a PDF is generating.When PDF
has generated,the"OK"light will bright until pull out from the USB port.
Specification:
Use Type:Single Use

Accuracy:±0.5℃(-20℃~+40℃);±1℃,for other range

Data Storage Capacity:10000

Alarm temperature:＜2℃ or ＞8℃(＜35.6℉ or ＞46.4℉)

Start Delay:30min

Operating temperature:-20℃~+60℃(-4℉~140℉)

Storage:Recommended 20 to 60%RH，10 to 50℃

Water Proof Level：IP67

Dimensions:69mm*33mm*5mm

Standard Compliance:CE,EN12830,GSP

Communication Interface:USB2.0

Report Type:PDF

Software:No need to any software to driver

