TZ-BT03 User Manual
V1.1
1 Product overview
TZ-BT03 is Bluetooth Low Energy temperature data logger with the latest Bluetooth
5.0 technology. It can collect temperature of the surrounding environment. Such data
can be recorded as history data. BT03 can store up to 53248 pieces of the temperature
data.Mobile phone with Bluetooth 4.0 or above can download and install App.It can
store and monitor temperature of the environment comprehensively. Its characteristics
are small-sized, low-weighted, easily portable and highly accurate for wide use in
cold chain logistics, archives, labs, museums, etc.
Advertisement
Table of Contents
Related Manuals for Tzone TZ-BT03
Summary of Contents for Tzone TZ-BT03
- Page 1 V1.1 1 Product overview TZ-BT03 is Bluetooth Low Energy temperature data logger with the latest Bluetooth 5.0 technology. It can collect temperature of the surrounding environment. Such data can be recorded as history data. BT03 can store up to 53248 pieces of the temperature data.Mobile phone with Bluetooth 4.0 or above can download and install App.It can...
-
Page 2: Product Application
2 Product application 1. Refrigerated storage and transportation; 2. Archives; 3. Experimental (test) rooms; 4. Workshop; 5. Museums; 6. Pharmaceutical environment; 7. Fresh transport. 3 Product features 1. High accuracy and stability; 2. Bluetooth 5.0; 3. Built-in highly sensitive temperature sensor; 4. - Page 3 1. Being close to a metal object will interfere with the signal, causing the signal to be weaken; 2. Note the distance between TZ-BT03 and the receiver to guarantee the accuracy of receiving 3. Keep away from water and corrosive objects.
-
Page 4: Device Registration

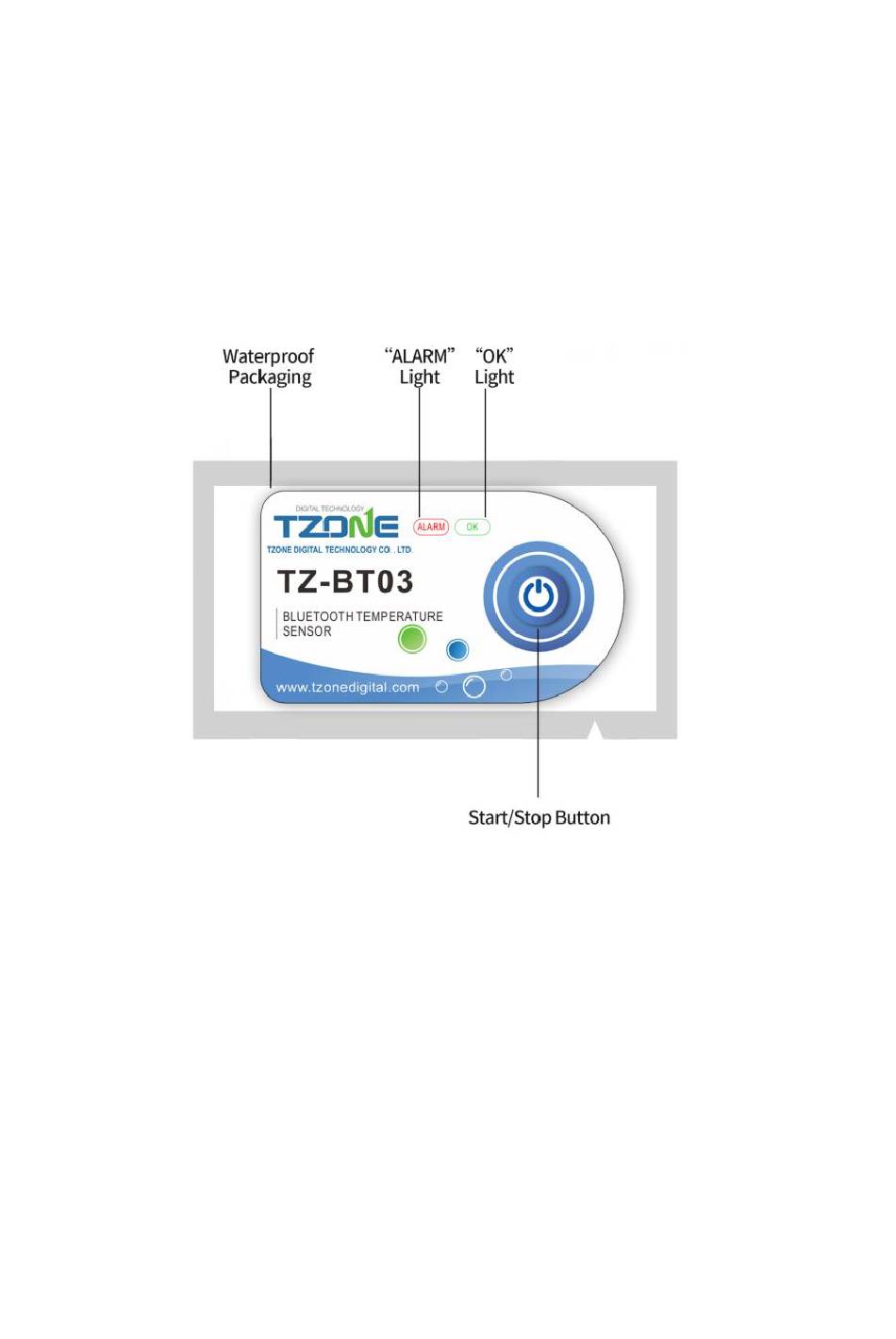

less than 3 seconds The device has been started and is in Red light bright the recording or stopping state, and once alarms Shorten the broadcast Green and red The broadcast is switch to 0.1 second time lights bright interval to speed up the connection for once at the 15 seconds, then back to the preset same time... -
Page 5: Device View
7.1.2 Enter the device connection page and click Connect. After a successful connection, the device ID will be displayed on the "Devices" page, indicating that the device has been registered successfully . 7.2 Device View Click the icon in the upper left corner of the home screen to expand the main menu. You can select the menu function and click “device”... - Page 6 7.2.1 To view device information The name, ID, MAC, temperature data, model, and status of all the current devices can be viewed, or you can view the specific device information by ID, name, and MAC.
- Page 7 Status description of the device in different symbols: Temperature Status icon display Temperature normal Upper temperature alarm Lower temperature alarm Upper and lower temperature alarm 7.2.2 Delete the device: Long press to delete the device: 7.2.3 Device alarm: When the device exceeds the preset upper or lower limit, the alarm information will be displayed, and the alarm bell will ring.
-
Page 8: Device Connection
7.3 Device connection Click a single device quickly to enter the connection interface. It will display the temperature, voltage, RSSI, alarm status and logger status of the device. Click "CONNECT," and jump to update after the connection is successful, indicating that the device has been successfully connected and read the current data content. - Page 9 Note: The device will not update the data in the connection process. By default, the device will be disconnected after 1 minute and the four buttons at the bottom will become gray and cannot be clicked again. 7.3.1 Device access key Click "Access Key"...
- Page 10 generate PDF and CSV reports, and send the reports to the designated mailbox by email,Click "Print" to automatically search the name of Bluetooth printer. Click the name to automatically pair and print the data report.Click the upper right corner to select the time period to generate the report.
-
Page 11: Configure Device
Note: 1.The smartphone must have a mailbox APP and login account to send email. 2. The Bluetooth printer designated by our company must be connected.the Bluetooth name is "MTP-II" and the password is "0000". 3. Only the Android APP has print and select time to generate the report function. B: Chart: C: List: 7.4 Configure device... - Page 12 7.4.1 Device name: The device name can be modified (up to 15byte) by users. 7.4.2 Temperature unit:Celsius(℃ )/Fahrenheit(℉) 7.4.3 Basic settings: A: Broadcast interval: The device broadcast interval (range: 0.5s ~30s, default:4dbm), B: Transmission power: The device transmission power(range:0dbm~4dbm, default:4dbm). C: Logging interval: Record time of the stored data (range:10s~18h, default:10mins).
-
Page 13: Start/Stop Recording
7.5 Start/Stop recording To start/stop recording by clicking "Start"/"Stop" on the APP. Note: Once clicking "Start", historical data will be deleted. 7.6 Data files Click the "Data Files" menu bar to enter to the data files interface. The functions of the device interface are as follows: 7.6.1 To View a single data file The time displayed in this file is the time when the device data is read for the first... -
Page 14: System Setting
7.6.3 Delete data file Check the data file and click "Delete" to delete the data file. 7.7 System setting Click the "System setting" menu bar to enter the system setting interface. The functions of the system setting interface are as follows: 7.7.1 Device Management: 1. - Page 15 7.7.3 Report settings(Only for generating reports through the APP): 1. Include Tabular Data in PDF: Select include or exclude (default: include). 2. Include Tabular Data in CSV: Select include or exclude (default: include). 7.7.4 Scan and connect device Settings: A. Connection Timeout: If there is no connection within the specified time, it is considered as connection timeout(default: 20 seconds).
