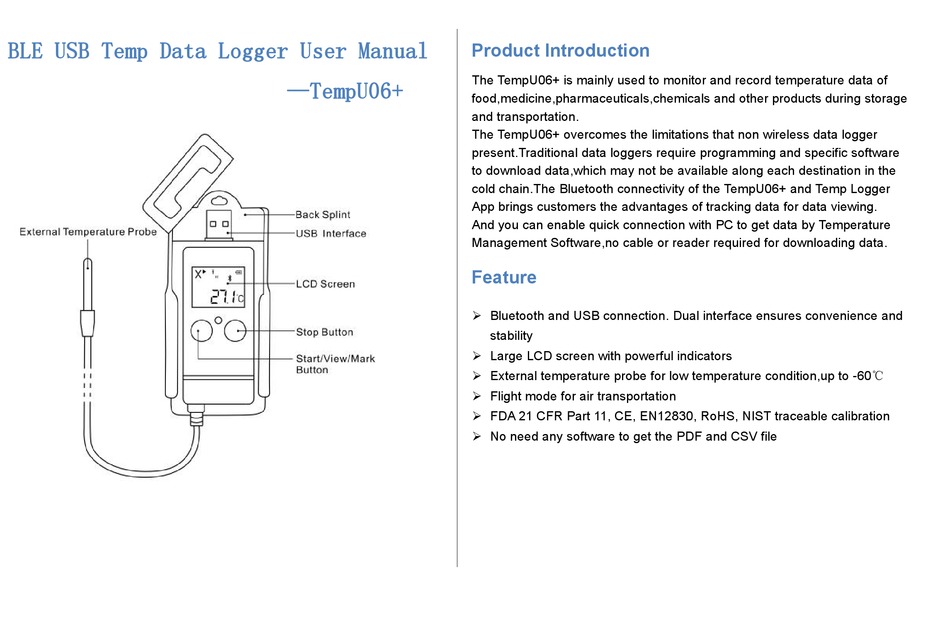

Product Introduction
BLE USB Temp Data Logger User Manual

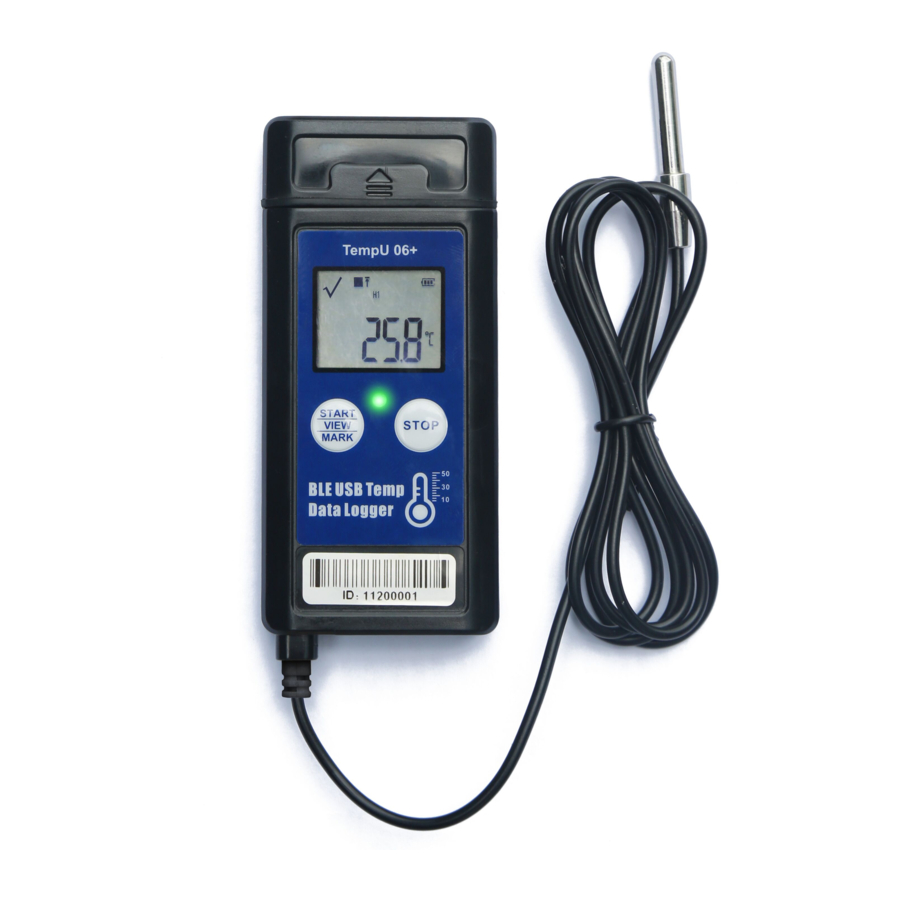

The TempU06+ is mainly used to monitor and record temperature data of
—TempU06+
food,medicine,pharmaceuticals,chemicals and other products during storage
and transportation.
The TempU06+ overcomes the limitations that non wireless data logger
present.Traditional data loggers require programming and specific software
to download data,which may not be available along each destination in the
cold chain.The Bluetooth connectivity of the TempU06+ and Temp Logger
App brings customers the advantages of tracking data for data viewing.
And you can enable quick connection with PC to get data by Temperature
Management Software,no cable or reader required for downloading data.
Feature
 Bluetooth and USB connection. Dual interface ensures convenience and
stability
 Large LCD screen with powerful indicators
 External temperature probe for low temperature condition,up to -60℃
 Flight mode for air transportation
 FDA 21 CFR Part 11, CE, EN12830, RoHS, NIST traceable calibration
 No need any software to get the PDF and CSV file

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TempU06+ and is the answer not in the manual?

Questions and answers

Related Manuals for Tzone TempU06+

Summary of Contents for Tzone TempU06+

  • Page 1 Product Introduction BLE USB Temp Data Logger User Manual The TempU06+ is mainly used to monitor and record temperature data of —TempU06+ food,medicine,pharmaceuticals,chemicals and other products during storage and transportation. The TempU06+ overcomes the limitations that non wireless data logger present.Traditional data loggers require programming and specific software to download data,which may not be available along each destination in the cold chain.The Bluetooth connectivity of the TempU06+ and Temp Logger...

  • Page 2: Specification

    Specification LCD Display Instruction Item Parameter Measurement Range -60℃~+120℃ ±0.3℃ (-20℃~+40℃) Accuracy ±0.5℃ (-40℃~-20℃/+40℃~+80℃) ±1.0℃ (-60℃~-40℃/+80℃~+120℃) Resolution Capacity 32000 Start Mode Push-To-Start or Timing Start Log Interval Programmable (10s ~ 18h) [Default:10mins] Alarm Range Programmable [Default: <2℃ or >8℃] Alarm Delay Programmable (0 ~ 960mins) [Default: 10mins] Start Delay Programmable (0 ~ 254mins) [Default: 30mins]...

  • Page 3: Lcd Screens

    LCD Screens Home Screens Error Screens Initialization Above upper & lower limit If E001 is display on the screen If E002 is display on the screen, there are three ways to check: indicating there is no sensor under 1. The sensor is not connected the timing start,please reconfigure 2.

  • Page 4: How To Use

    How to use a. Start recording d. Turn on/off Bluetooth Make sure the sensor is completely insert into Press and hold the two buttons for more the device.Press and hold the left button for than 3s at the same time,until the red light more than 3s until the led light turns green,and flashes quickly, and the “...

  • Page 5: Configure Device

    Configure Device Battery Status Indication A. By Temp Logger App Battery Capacity Please configure the device through Temp Logger App.Before Full configuration,please make sure Bluetooth is turned on. Client can download App by scan the QR code below: Good Medium Low (Please replace battery) Cautions 1.
