TZ-BT05B
--- User Manual V1.7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TZ-BT05B and is the answer not in the manual?

Questions and answers

Related Manuals for Tzone TZ-BT05B

Summary of Contents for Tzone TZ-BT05B

  • Page 1 TZ-BT05B --- User Manual V1.7...

  • Page 2: Product Overview

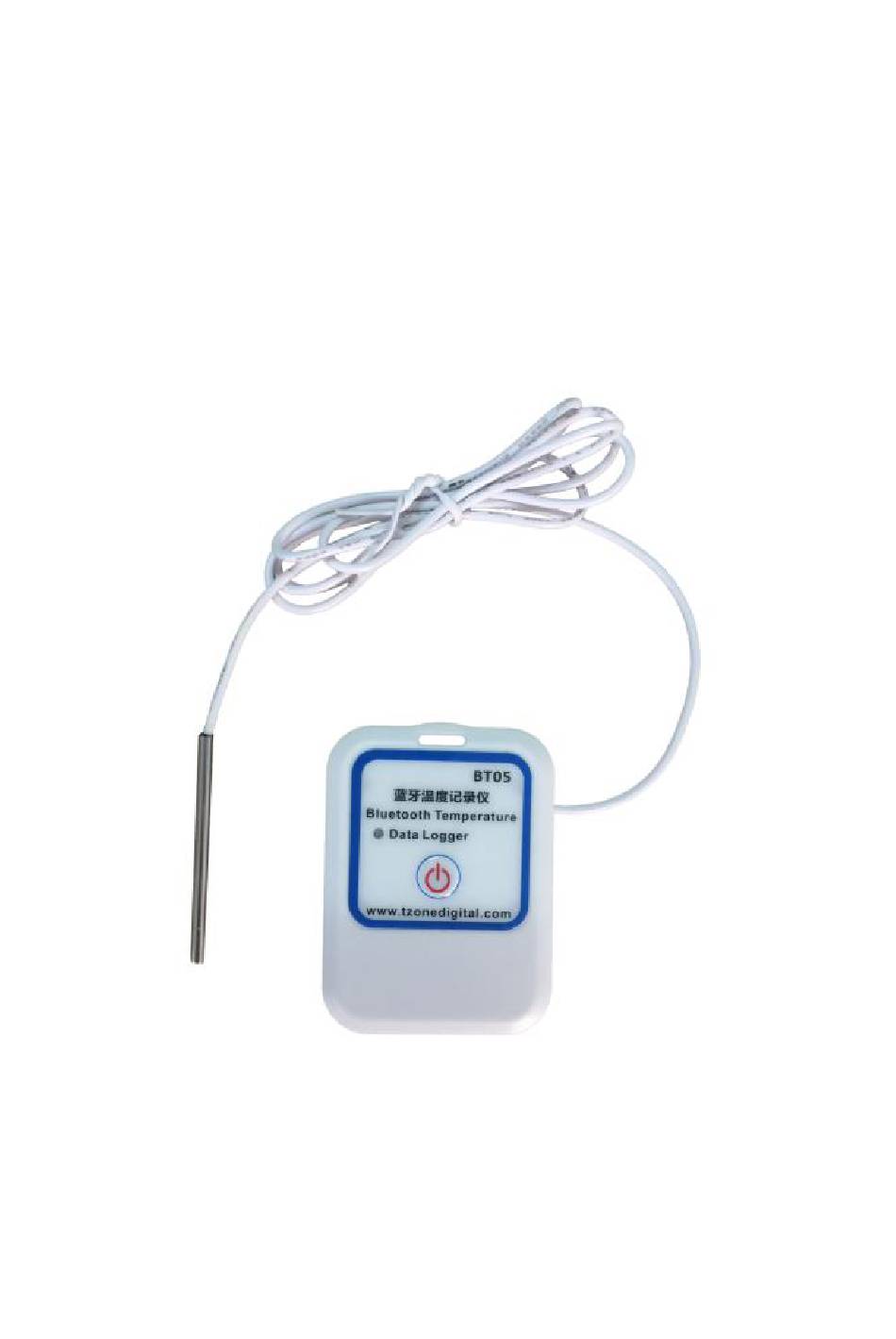

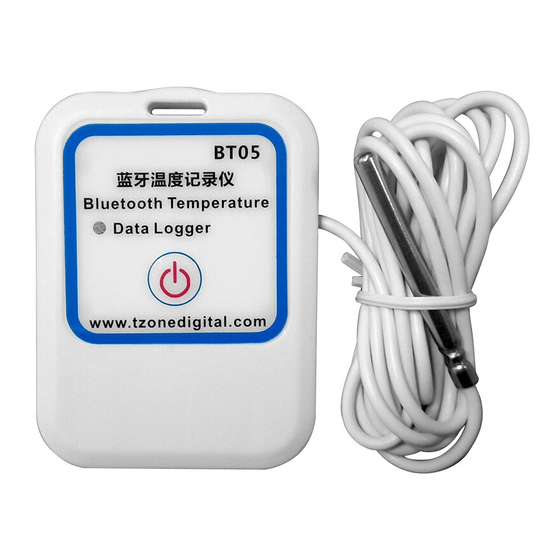

    1 Product Overview TZ-BT05B is a low power consumption Bluetooth data logger, using the latest Bluetooth 4.1 technology, Nordic NRF51822 chip development and design, It can collect temperature of the surrounding environment and recording and preservation of historical data, can store up to 12000 pieces temperature data, Bluetooth 4.0 can be downloaded over the phone APP configuration tools,to achieve full stage real-time temperature recording.

  • Page 3: Product Specification

    5 Caution 1,Being close to a metal object will interfere with the signal, causing the signal to be weaken; 2,Note that the distance between the TZ-BT05B and the receiver to ensure the reception accuracy; 3, Away from water and corrosive materials.

  • Page 4: App Software

    Close data logger, Open state, long press the Turn off Flashes 5 times, then off keep record of button for 3 seconds temperature data 7 APP software ‘Temp Logger’ is a free mobile applications which provided by our company to the users, can connect the BT05B through the Bluetooth of the mobile devices and do the settings, data transmission, recording, synchronization, send to email.
  • Page 5 7.2.2 Enter the device connection page and click Connect. After a successful connection, the device ID will be displayed on the "Devices" page, indicating that the device has been registered successfully .

  • Page 6: Device View

    7.2 Device View Click the icon in the upper left corner of the home screen to expand the main menu. You can select the menu function and click “device” to enter the multidevice interface. The functions of the device interface are as follow: 7.2.1 To view device information The name, ID, MAC, temperature data, model, and status of all the current devices can be viewed, or you can view the specific device information by ID, name, and...
  • Page 7 Status description of the device in different symbols: : Temperature normal : Temperature alarm (including both high and low temperatures) 7.2.2 Delete the device: Long press to delete the device:...

  • Page 8: Device Connection

    7.2.3 Device alarm: When the device exceeds the preset upper or lower limit, the alarm information will be displayed, and the alarm bell will ring. Clicking "CLOSE " to turn off the alarm information and alarm bell. 7.3 Device connection...
  • Page 9 Click a single device quickly to enter the connection interface. It will display the temperature, voltage, RSSI, alarm status and logger status of the device. Click "CONNECT," and jump to update after the connection is successful, indicating that the device has been successfully connected and read the current data content. After the connection is successful, it will prompt you whether to view the report, or the access key and flight mode of the device will be displayed.
  • Page 10 Note: The smartphone must have a mailbox APP and login account to send email. B: Chart:...

  • Page 11: Configure Device

    C: List: 7.4 Configure device After connection, when the device does not start recording, you can click "Configure" to set the device.

  • Page 12: Data Files

    7.4.1 Device name: The device name can be modified (up to 7byte) by users. 7.4.2 Basic settings: A: Transmission power: The device transmission power(range:-30dbm~4dbm, default:-4dbm) B: Logging interval: Record time of the stored data (range:10s~1h, default:1mins). C: Logging cycle : It changes with the logging interval. 7.4.3 Advanced settings A: Access key: Must be enable,default: 000000.

  • Page 13: System Setting

    7.5.1 To View a single data file The time displayed in this file is the time when the device data is read for the first time. The information will be updated after each read until the machine stops recording. 7.5.2 Chart report comparison supporting up to 5 files Check the data file and click "Comparison"...
  • Page 14 7.6.1 Device Management: 1. Configuration file:You can view the configuration file saved in "Configure". 2. Remember the device access key: Don’t turn on the switch: enter the access key every time you connect the device Turn on the switch: when connection the device, you only need to input the access key once (default: remember the key) 3.
