TZ-BT05
--- User Manual v1.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TZ-BT05 and is the answer not in the manual?

Questions and answers

Related Manuals for Tzone TZ-BT05

Summary of Contents for Tzone TZ-BT05

  • Page 1 TZ-BT05 --- User Manual v1.4...

  • Page 2: Product Overview

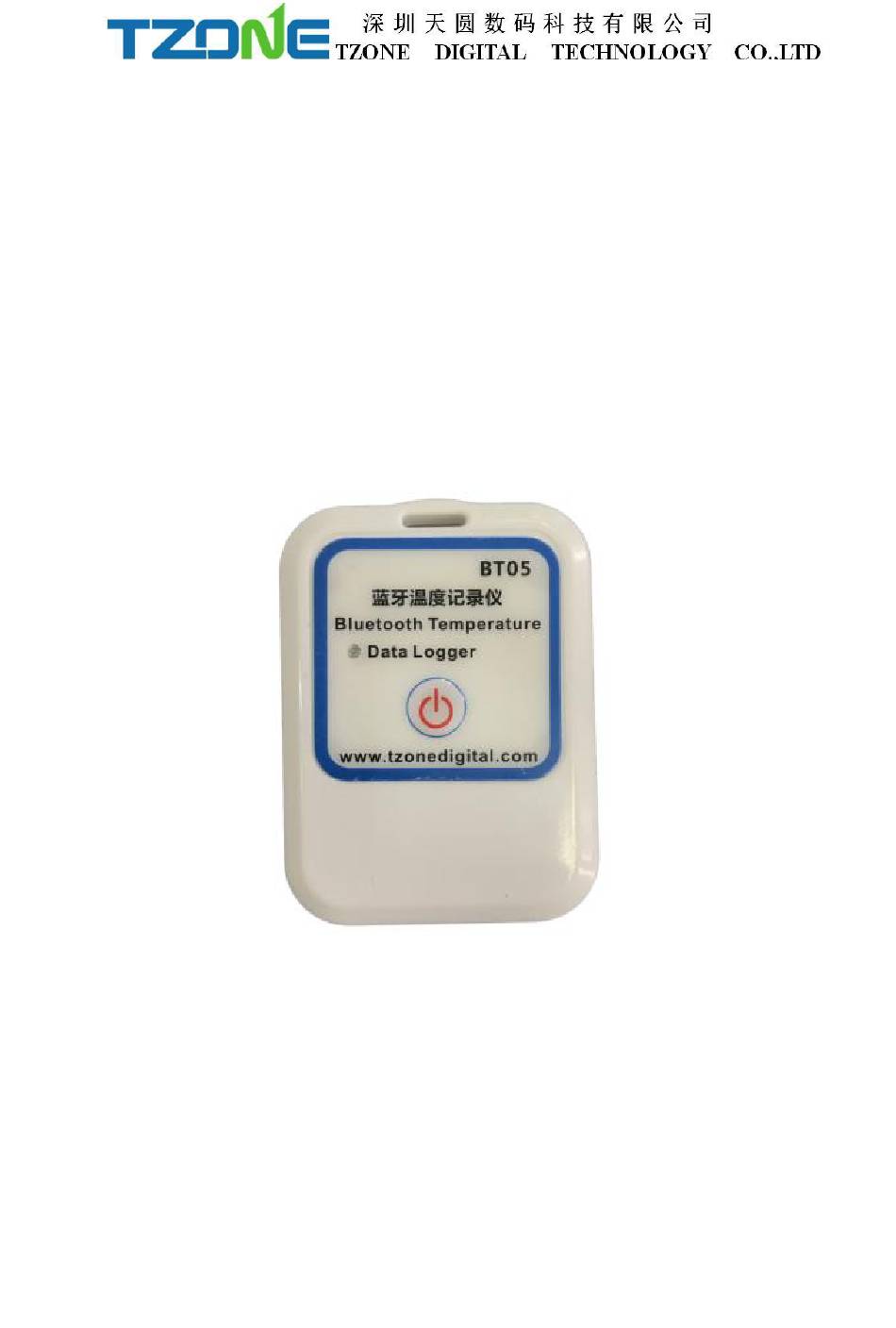

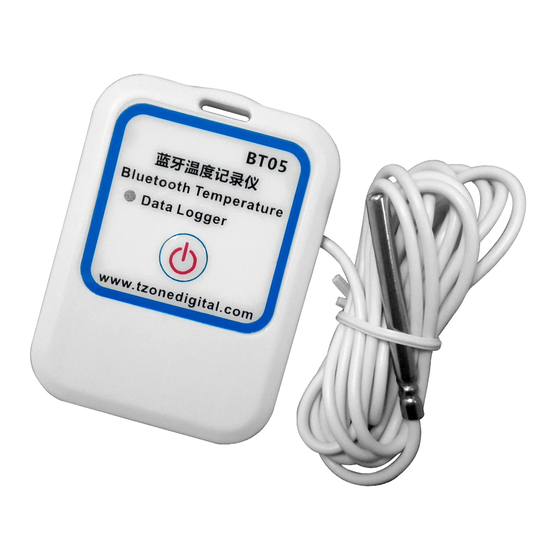

    1 Product Overview TZ-BT05 is a low power consumption Bluetooth data logger, using the latest Bluetooth 4.0 technology, Nordic NRF51822 chip development and design, It can collect temperature of the surrounding environment and recording and preservation of historical data, can store up to 12000 pieces temperature data, Bluetooth 4.0 can be downloaded over the phone APP,to achieve full stage real-time temperature recording.

  • Page 3: Product Specification

    Temperature detecting accuracy ±0.5℃(-20℃~+40℃),±1℃(Other temperature ) 5 Caution 1,Away from metal objects, not placed in a sealed metal and small space; 2,Note that the distance between the TZ-BT05 and the receiver to ensure the reception accuracy; 3, Away from water and corrosive materials.

  • Page 4: App Software

    7 APP software ‘Temperature data logger’ is a free mobile applications which provided by our company to the users, can connect the BT05 through the Bluetooth of the mobile devices and do the settings, data transmission, recording, synchronization, send to email.
  • Page 5 Press the Menu key to query historical data extraction, pairing a Bluetooth printer, update the firmware by OTA and inspection equipment, as shown below:...
  • Page 6 Historical records which stores all the history report,you can delete the report when you press the report and hold on for a while. Select the matching printer, print history report data: Inspection tool can check the phone and machine information and the connection.
  • Page 7 Click on the lower left corner of the set key, can see the software Settings, the system time zone, temperature unit, download the firmware update and checker. Can be set up mobile phone connection timeout time machine:...
  • Page 8 Can set the local time zone, the PDF/CSV report will become the current time: Can set the temperature of the unit you need: BT05_V11 and above version have OTA function, choose the firmware update, the latest version on the server can be detected and downloaded to mobile phones, then choose the need to update he machine ID, input the password, you can update to the latest version, when update is completed you will be prompted to update successful.
  • Page 9 7.1.1 Configure logger After entering the SN code or scanning device , or directly click ‘Configure Devices’ and select the device, on the home page, or enter the configuration interface, as shown below: The interface can be configured BT05 password(6 byte), if the transmit power(-30~4dbm), Normal/Alarm storage space(10~3600s), and the upper and lower temperature limits(-25~60°C), empty stored data .The appropriate value of the transmit power can be selected in the drop-down list;...
  • Page 10 7.1.2 Real time data ‘Real time data’ displays the device name,real-time temperature and power, the interface for viewing real-time temperature, if the temperature exceed the limits then the figure change to be red, or else black font, this interface does not provide editing function .

  • Page 11: History Record

    7.1.4 History record Every click on the "query data", the data will be stored in the historical data ,you can into the historical record, the report includes data report, data record, temperature chart,set report,send report and print report, as shown below:...
  • Page 12 Note: line: high temperature threshold,blue line: low temperature threshold In the report Settings can be set up report name, comment and description,also can be directly set in configure logger, as shown below:...
  • Page 13 In “send report” can be set up to receive email, the first please set the email account on the mobile,click send,you can change the report start and end time and set the graph scaling,click confirm, it is will generate PDF/CSV files and into write email, you can input mail content, red box for sending, click it, the PDF/CSV report will be sent to the designated email,as shown below:...
  • Page 14 Can be in the specified mailbox to see to this email and generate PDF/CSV report,as shown below:...
  • Page 15 7.2 IOS system ‘temperature data logger’ App use. Client can download App by App Store : Search: Humiture Recorder Open the ‘Temperature data logger’ software, the first to see is the scan code interface; there are three interface buttons, they are ‘Real time’, ‘Query’, ‘Configure’; and the upper-right corner of the search button.
  • Page 16 BT05_V11 and above version have OTA function, choose the firmware update, the Choose the firmware update, the latest version on the server can be detected and downloaded to mobile phones, then choose the need to update the machine ID, input the password, you can update to the latest version, when update is completed you will be prompted to update successful.
  • Page 17 will enter the configuration interface, as shown below: ‘Setting’ The interface can be configured BT05 transmit power, Normal/Alarm storage space, and the upper and lower temperature limits, empty stored data .The appropriate value of the transmit power can be selected in the drop-down list;storage interval and alarm settings directly enter numbers according to individual needs;...
  • Page 18 7.2.3 Query data ‘Query Data’ screen, can choose extraction time,(BT05_V12 and above versions have this function), displays SN code, Storage interval, the total number of data recorded ,the maximum and minimum temperature during recording, start time, end time, temperature chart ,send report and Bluetooth printing, the interface is mainly used for reading temperature data recorded in a specific time period.

  • Page 19: History Data

    7.2.4 History data Every click query data, stored data will be stored in a history report, can enter the history report to see. And query data, the same history report includes data record, temperature and chart and send report and print reports, as shown in the figure below:...
  • Page 20 In sending report can be set receive email, the first please set the email account on the mobile,click send, can generate HTML/CSV form the report and sent to email address:...
  • Page 21 Turn on the Bluetooth printer, click print button, can automatically search the Bluetooth printer device name, click the device name, can automatically match and print this data report:...
