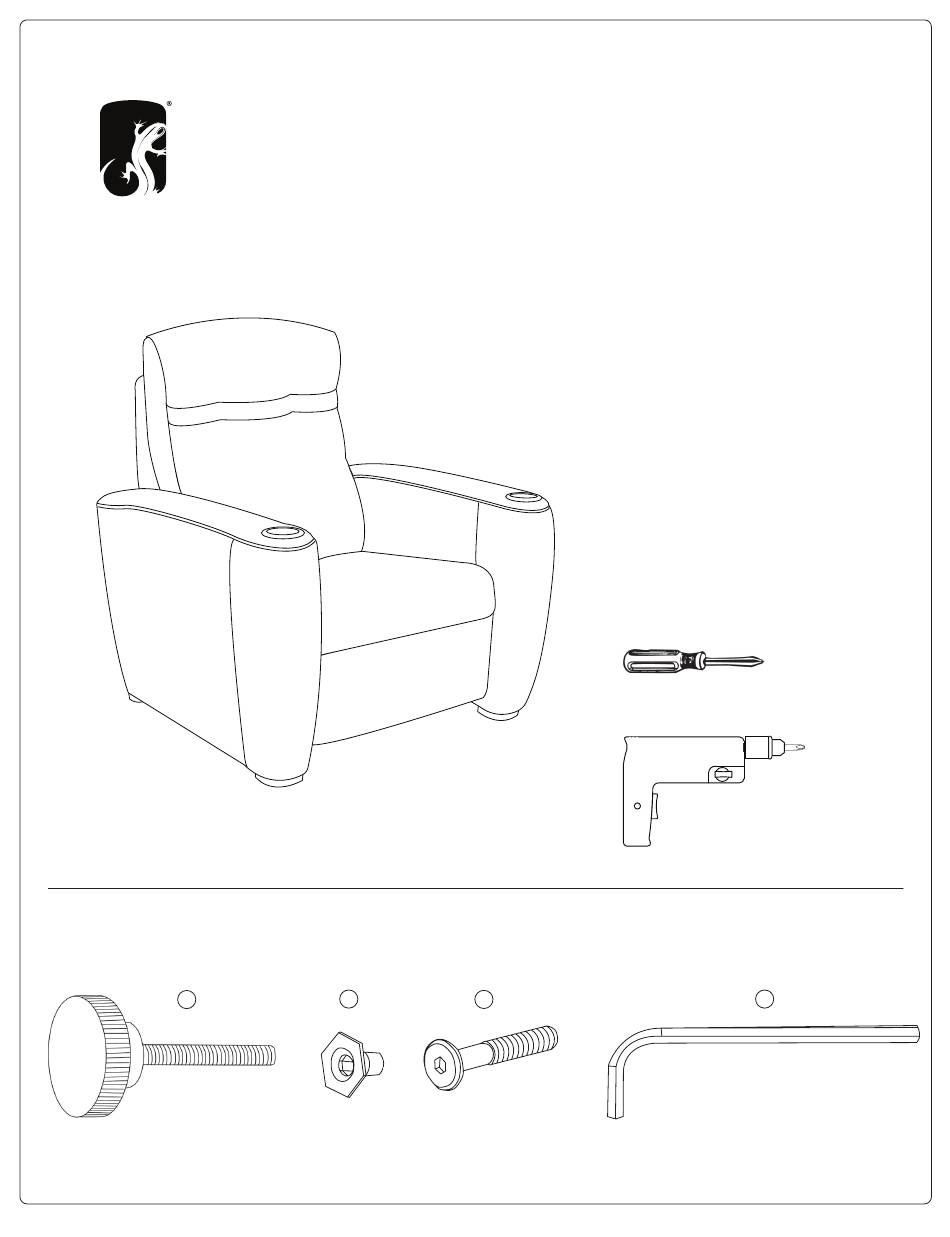

PARTS
- Supplied with Armless, Left and Right-End Chairs
1
Connector Bolt
1/4 - 20 x 2"
Part# 014978
Talia - v1.22
TALIA
Assembly Instructions
2
¼ - 20
Hex Nut
Part# 005489
3
5/16 - 18 x 50mm
Connector Bolt
Part# 005488
Thank you for your purchase.
Unpack all content and check to
ensure that all of the parts are in
proper condition. To help protect
the environment, use the appropriate
recycling and discarding methods
for the packaging items.
Read ALL assembly instructions
before beginning. If you have any
questions, please contact your
installator or Salamander Designs
at 800-535-5659.
Tool Required:
Philips Screwdriver
or power drill with Phillips drive
4
Hex Wrench
Part# 005490
page 1 of 6
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Salamander Designs TALIA
Summary of Contents for Salamander Designs TALIA
- Page 1 Read ALL assembly instructions before beginning. If you have any questions, please contact your installator or Salamander Designs at 800-535-5659. Tool Required: Philips Screwdriver or power drill with Phillips drive PARTS...
-
Page 2: Powered Seating
Remove back panel and screw transducer onto bolt on chair frame. Tactile Transducer Powered Seating Connect power supplies to motors. Coil & Tie Extra Wire Length. Be careful to route wires away from mechanism. 2-pin adaptor cord Talia - v1.22 page 2 of 6... - Page 3 Remove lower back panels and locate the back bolt holes. Secure connection by inserting bolt through chair and into arm. Talia - v1.22 page 3 of 6...
- Page 4 Spacers In this configuration 2 spacers are needed between each seat. Spacers Remove lower back panel and locate the back bolt holes. Secure connection by inserting bolt through chair frames. Fasten with nut. Talia - v1.22 page 4 of 6...
- Page 5 While holding access flap open, align the backrest screw holes to the upper and lower holes in the chair mechanism tongues. Install and tighten screws. Fasten access flap neatly into place. Talia - v1.22 page 5 of 6...
- Page 6 We recommend a small size power strip to connect multiple power chairs. It is also possible to utilize multiple Y-type splitters to connect chairs in series. Please note the specifications of the power components and be cautious not to overload the electrical circuit. phone: 800-535-5659 www.SalamanderDesigns.com Talia - v1.22 page 6 of 6...
