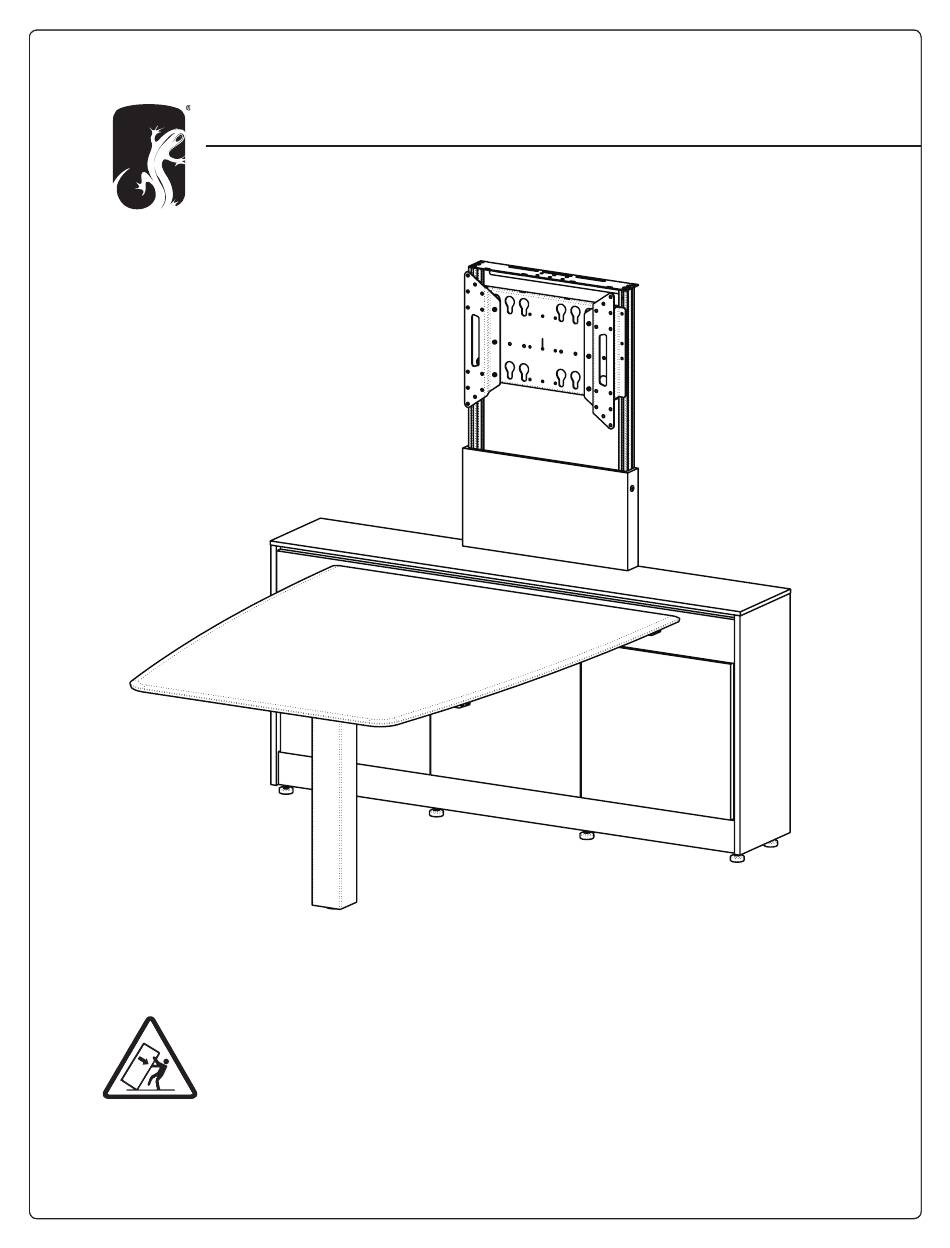

D1/338AM1 ASSEMBLY INSTRUCTIONS
UNIFI HUDDLE - SINGLE MOUNT
TIP HAZARD WARNING!
Cabinet must be affixed to wall.
For use with video monitors weighing 175lbs (80kg) or less. Use with
heavier televisions may result in instability causing tip over resulting
in death or serious injury.
Salamander Unifi Huddle, Single Mount
1 of 12
501-710 [6.19]
