Installation Guide DSA 2 MAXI Substation

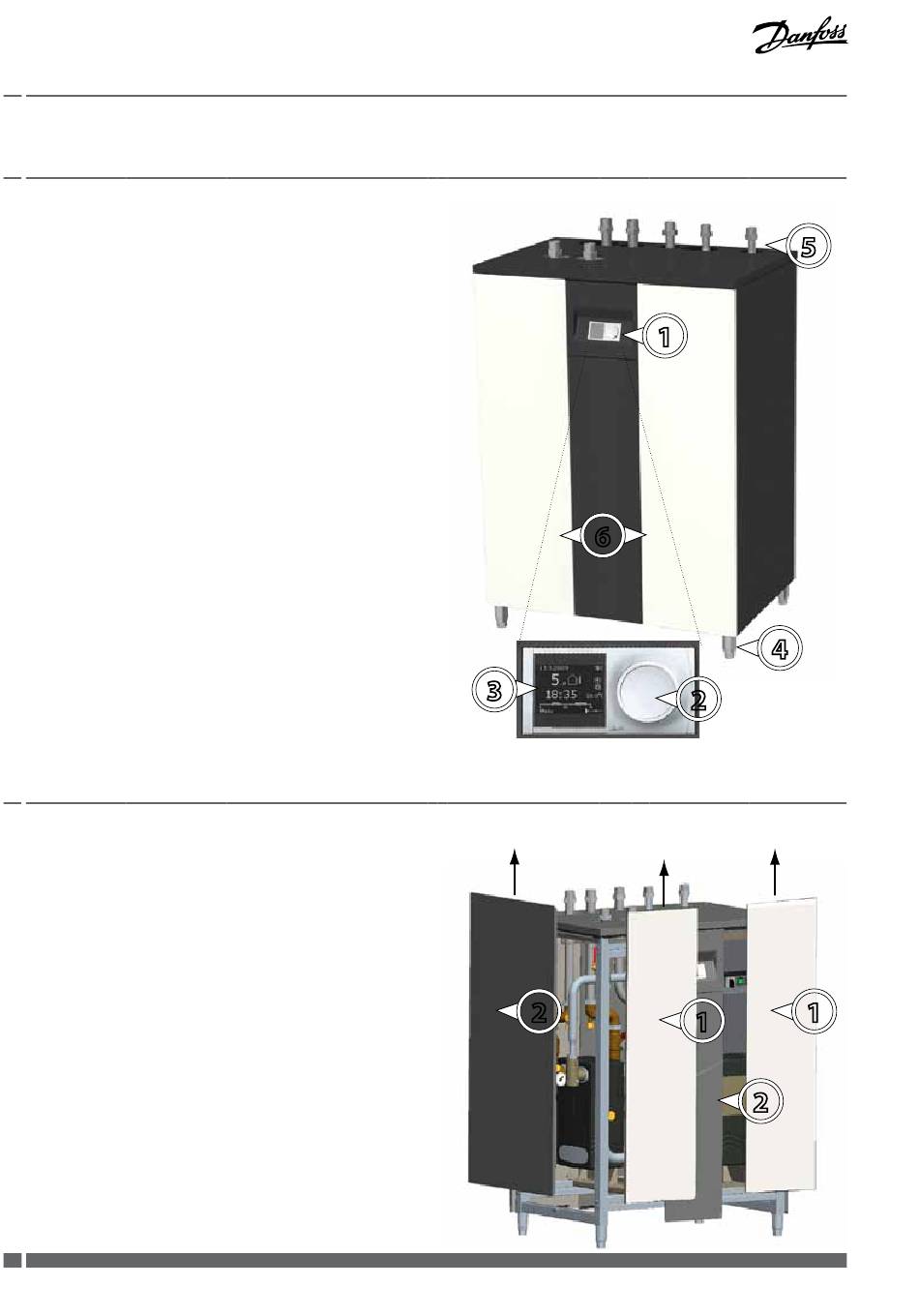

4.0 Visible components in the substation

1. All substation functions are controlled and the operational
values are observed with the electronic controller.
5
2. Dial: navigation in the menus and changes in the operating
values by following the controller display.
3. Display: all settings, temperature information and mode are
found on the graphical display. Navigation in the menus and
changes in the settings are done following the display. 1
4. With the installation feet you can adjust the substation posi-
tion directly and on the correct height. The adjustments can be
done up to 6 cm.
5. Connections to district heating, heating and domestic hot
water networks.
6. The cover panels protect the components in the substation and
add user safety. When installing or servicing the cover panels have
to be removed.
6
4
3
2

5.0 Installation and start-up - Step by step

5.1 Removing the cover panels

The cover panels have to be removed before moving
the substation to the installation place and installing it.
The panels are removed by lifting them up.
1. First remove the white panels from the front and back.
2. After that lift the grey panels.
The cover panels can be placed back on the substation when the
substation is installed and ready for use. The panels are placed
back in the opposite order when compared with taking them 2 1
1
away.
2
