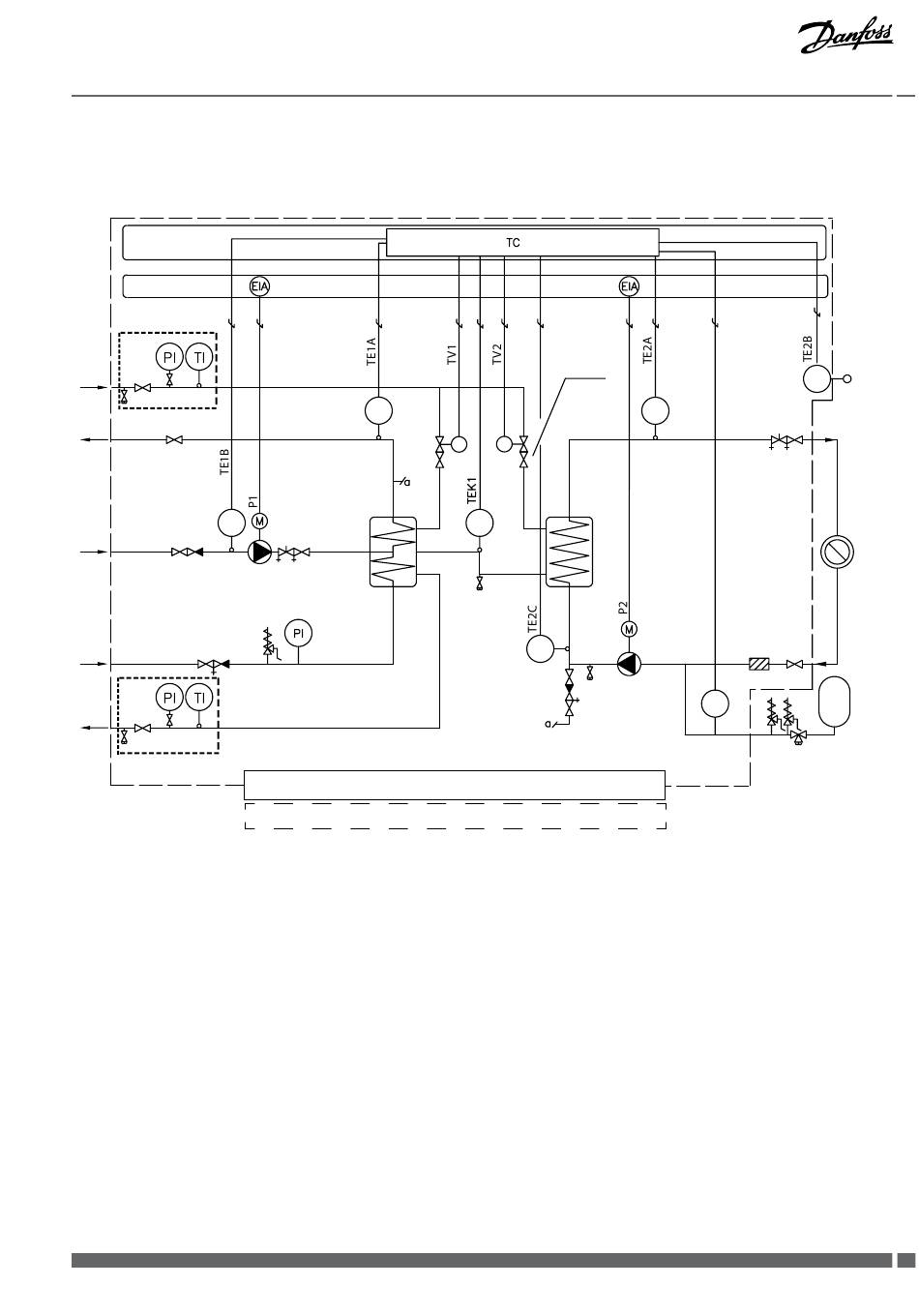

3.3 DSA 2 MAXI - example circuit diagram DSA 2 MAXI-I2B032-050-A150-MD-FI
- 2 circuits, circuit diagram example
After heating connection: domestic hot water and heating
25
25a
7
15 13
7
7 6
27
6
7
7
15
13
1 Plate heat exchanger HE
2 Plate heat exchanger DHW
5 Strainer
6 Non-return valve
7 Ball valve
8 Circulation pump HE
11 Safety valve HE
12 Safety valve DHW
13 Thermometer
15 Manometer
16 Expansion vessel
18 Drain valve
25 Electronic Controller
25a Pump control bow
26 Outdoor temperature sensor
27 Temperature sensor
28 Pressure sensor
29 Actuator
30 Control valve
46 Balancing valve
64 Circulation pump DHW
65 Service valve
66 Filling valve
