Summary of Contents for Supermicro SUPERO SC813M Series
- Page 1 UPER ® SC813M Chassis Series SC813MT-350CB SC813MTQ-R400CB SC813MTQ-600CB SC813MFTQ-520CB SC813MTQ-520C/CB SC813MT-420C/CB SC813MT-410C/CB SC813MTQ-350CB SC813MT-300C/CB SC813MTQ-280C/CB SC813MS-280C/CB USER’S MANUAL...
- Page 2 This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.
- Page 3 HPC and datacenter use. This document lists compatible parts and configurations available when this docu- ment was published. Always refer to our web site for updates on supported parts and configurations at http://www.supermicro.com.
- Page 4 SC813M Chassis Manual Manual Organization Chapter 1 Introduction The introduction the main components included with this chassis and describes the primary features of the SC813M chassis. This chapter also includes contact information. Chapter 2 Standardized Warning Statements for AC/DC Systems This chapter lists warnings, precautions, and system safety.
- Page 5 Appendix A Chassis Cables This section references cables, which are compatible with your SC813M system. Refer to our web site for additional information on cabling at www.supermicro.com. Appendix B Power Supply This chapter lists supported power supply information for the SC813M system. Refer to our web site for additional details at www.supermicro.com.
-
Page 6: Table Of Contents
Table of Contents Chapter 1 Introduction Overview ......................1-1 Shipping List ....................1-1 Contacting Supermicro ..................1-2 Returning Merchandise for Service..............1-3 Chapter 2 Standardized Warning Statements for AC/DC Systems About Standardized Warning Statements ............2-1 Warning Definition ................... 2-1 Installation Instructions .................. - Page 7 Preface Chapter 5 Chassis Setup and Maintenance Overview ......................5-1 Installation ....................... 5-1 Removing the Chassis Cover ................. 5-2 Installing Hard Drives ..................5-3 Installing the DVD-ROM Drive ................ 5-6 Installing the Motherboard ................5-7 Permanent and Optional Standoffs ..............5-8 Installing the Motherboard ................
- Page 8 SC813M Chassis Manual Notes viii...
-
Page 9: Chapter 1 Introduction

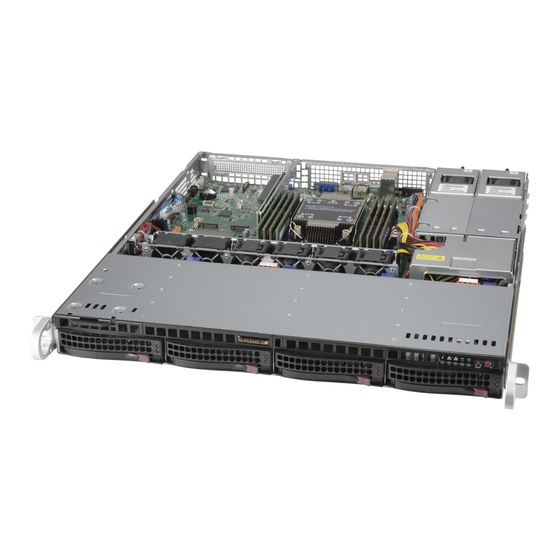

Overview Supermicro’s SC813M 1U chassis featues four hot-swappable 3.5” SAS/SATA hard drive bays. Only enterprise level hard drives are recommended for use in Supermicro chassis. The SC813M chassis includes one 330W (Gold Level), or a 560W (Gold Level) high-efficiency power supply. The SC813MTQ-R400CB model chassis has dual redundant 400W power supplies. -
Page 10: Contacting Supermicro
Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML... -
Page 11: Chapter 1: Introduction
For faster service, RMA authorizations may be requested online (http://www. supermicro.com/support/rma/). Whenever possible, repack the chassis in the original Supermicro carton, using the original packaging material. If these are no longer available, be sure to pack the chassis securely, using packaging material to surround the chassis so that it does not shift within the carton and become damaged during shipping. - Page 12 SC813M Chassis Manual Notes...
-
Page 13: Chapter 2 Standardized Warning Statements For Ac/Dc Systems
Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our web site at http://www.supermicro.com/ about/policies/safety_information.cfm. Warning Definition Warning! This warning symbol means danger. -
Page 14: Wichtige Sicherheitshinweise
SC813M Chassis Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. -
Page 15: Belangrijke Veiligheidsinstructies
Chapter 2: Standardized Warning Statements for AC/DC Systems جسذٌة اصابة ًتتسبب ف حالة ٌوكي أى ًاًك ف خطز ًٌٌع هذا الزهز !تحذٌز الذوائز بالوخاطز الٌاجوة عي ي على علن ، ك هعذات تعول على أي قبل أى الكهزبائٍة حىادث أي وقىع... -
Page 16: Installation Instructions
SC813M Chassis Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación. -
Page 17: Circuit Breaker
Chapter 2: Standardized Warning Statements for AC/DC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、... -
Page 18: Power Disconnection Warning
SC813M Chassis Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 60V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 60V, 20A. - Page 19 Chapter 2: Standardized Warning Statements for AC/DC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...
-
Page 20: Equipment Installation
SC813M Chassis Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden. -
Page 21: Restricted Area
Chapter 2: Standardized Warning Statements for AC/DC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. -
Page 22: Battery Handling
SC813M Chassis Manual אזור עם גישה מוגבלת !אזהרה יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת .)'כלי אבטחה בלבד (מפתח, מנעול וכד محظورة مناطق ٍنتركُبها ف هذه انىحذة تخصيص تم ،أداة خاصت من خالل استخذاو فقط محظورة... - Page 23 Chapter 2: Standardized Warning Statements for AC/DC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement.
-
Page 24: Redundant Power Supplies
SC813M Chassis Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden. -
Page 25: Backplane Voltage
Chapter 2: Standardized Warning Statements for AC/DC Systems امداد الطاقة بوحدات عدة اتصاالت جهاز ال يكون لهذا قد الكهرباء عن وحدة ال لعسل كافة االتصاالت يجب إزالة 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을... -
Page 26: Comply With Local And National Electrical Codes
SC813M Chassis Manual מתח בפנל האחורי !הרה אז קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך .העבודה اللىحة أوالطاقة المىجىدة على التيار الكهزبائي مه خطز هناك هذا الجهاس خدمة كه حذرا عند يعمل النظام عندما يكىن 경고! 시스템이... -
Page 27: Product Disposal
Chapter 2: Standardized Warning Statements for AC/DC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. תיאום חוקי החשמל הארצי !אזהרה הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים התקנת المتعلقة المحلية والىطىية قىاويه يجب أن يمتثل لل الكهربائية... -
Page 28: Hot Swap Fan Warning
SC813M Chassis Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. - Page 29 Chapter 2: Standardized Warning Statements for AC/DC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.
-
Page 30: Dc Power Supply
SC813M Chassis Manual DC Power Supply Warning! When stranded wiring is required, use approved wiring terminations, such as closedloop or spade-type with upturned lugs. These terminations should be the appropriate size for the wires and should clamp both the insulation and conductor. 警告... - Page 31 Chapter 2: Standardized Warning Statements for AC/DC Systems Attention Quand des fils torsadés sont nécessaires, utiliser des douilles terminales homologuées telles que celles à circuit fermé ou du type à plage ouverte avec cosses rebroussées. Ces douilles terminales doivent être de la taille qui convient aux fils et doivent être refermées sur la gaine isolante et sur le conducteur.
-
Page 32: Dc Power Disconnection
SC813M Chassis Manual DC Power Disconnection Warning! Before performing any of the following procedures, ensure that power is removed from the DC circuit. 警告 次の手順を開始する前に、 DC回路から電源が切断されているこ とを確認してく ださい。 警告 進行以下任一操作程序前，請確保直流電路已斷電。 警告 请在进行以下任一操作程序前，确保直流电路的电源已经断开。 Warnung Vor Ausführung der folgenden Vorgänge ist sicherzustellen, daß die Gleichstromschaltung keinen Strom erhält. -
Page 33: Hazardous Voltage Or Energy Present On Dc Power Terminals
Chapter 2: Standardized Warning Statements for AC/DC Systems 주의! 다음 절차들을 수행하기 전에, 전원이 DC회로로부터 제거되었는지를 확인해 주십시오. Waarshuwing Wanneer geslagen bedrading vereist is, dient u bedrading te gebruiken die voorzien is van goedgekeurde aansluitingspunten, zoals het gesloten-lus type of het grijperschop type waarbij de aansluitpunten omhoog wijzen. - Page 34 SC813M Chassis Manual ¡Advertencia! Puede haber energía o voltaje peligrosos en los terminales eléctricos de CC. Reemplace siempre la cubierta cuando no estén utilizándose los terminales. Asegúrese de que no haya acceso a conductores descubiertos cuando la cubierta esté colocada. Attention Le voltage ou l'énergie électrique des terminaux à...
-
Page 35: Chapter 3 Chassis Components
The chassis includes four 3.5" hard drive bays. On most chassis models, the DVD- ROM is an optional item. For the latest shipping lists, visit our Web site at: http:// www.supermicro.com. This chassis accepts a 1U backplane, four fans (with an optional fifth fan) and one or two power supplies. -
Page 36: Power Supply
Supermicro Authorized Distributors/ System Integrators/Resellers. A list of Supermicro Authorized Distributors/System Integrators/Reseller can be found at: http://www.supermicro.com. Click the Where to Buy link. -
Page 37: Chapter 4 System Interface
Chapter 4 System Interface Chapter 4 System Interface Overview There are several LEDs on the control panel as well as others on the drive carriers to keep you constantly informed of the overall status of the system as well as the activity and health of specific components. -
Page 38: Control Panel Buttons
SC813M Chassis Manual Control Panel Buttons There are three push-buttons located on the front of the chassis. These are (in order from left to right) a UID button, a reset button and a power on/off button. • UID: Depressing the UID (unit identifier) button illuminates an LED on both the front and rear of the chassis for easy system location in large stack confi gura- tions. - Page 39 Chapter 4 System Interface Informational LED Status Description An overheat condition has occured. Solid red (This may be caused by cable congestion). Fan failure, check for an inoperative fan. Blinking red (1Hz) Power failure, check for a non-operational Blinking red (0.25Hz) power supply.
-
Page 40: Drive Carrier Leds
SC813M Chassis Manual Drive Carrier LEDs Your chassis uses SAS or SATA, but not both at the same time. SAS/SATA Drives Each SAS/SATA drive carrier has two LEDs. • Green: Each Serial ATA drive carrier has a green LED. When illuminated, this green LED (on the front of the SATA drive carrier) indicates drive activity. -
Page 41: Chapter 5 Chassis Setup And Maintenance
Chapter 5: Chassis Setup and Maintenance Chapter 5 Chassis Setup and Maintenance Overview This chapter covers the steps required to install components and perform mainte- nance on the SC813M chassis. The only tool you will need to install components and perform maintenance is a Phillips screwdriver, and under certain circumstances, a hex wrench. -
Page 42: Removing The Chassis Cover
SC813M Chassis Manual Removing the Chassis Cover Figure 5-1: Removing the Chassis Cover Removing the Chassis Cover the Chassis Cover: 1. Power down the system and unplug the power cord from the rear of the power supply. 2. Simultaneously press both release tabs. 3. -
Page 43: Installing Hard Drives
Chapter 5: Chassis Setup and Maintenance Installing Hard Drives Figure 5-2: Removing Hard Drive Carrier The SC813M supports four hot-swappable 3.5" hard drives. Only SAS or enterprise level hard drives are recommended. The hard drives in your chassis may look slightly different than the ones shown in this manual. - Page 44 SC813M Chassis Manual Dummy Drive Drive Carrier Figure 5-3: Chassis Drive Carrier The drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airflow for the drive bays. The hard drives used in your chassis may vary slightly from those illustrated in this manual.
- Page 45 Chapter 5: Chassis Setup and Maintenance SAS/SATA Hard Drive Drive Carrier Figure 5-5: Removing the Hard Drive From the Carrier 1. Install a new drive into the carrier with the printed circuit board side facing down so that the mounting holes align with those in the carrier. 2.
-
Page 46: Installing The Dvd-Rom Drive
SC813M Chassis Manual Installing the DVD-ROM Drive Figure 5-6: Installing the DVD-ROM Drive SC813M chassis models include space for one optional DVD-ROM drive. Installing the DVD-ROM Drive 1. Power down the system and unplug the power cord from the rear of the power supply. -
Page 47: Installing The Motherboard
Chapter 5: Chassis Setup and Maintenance Installing the Motherboard Installing the I/O Shield The I/O shield holds the motherboard ports in place. Install the I/O shield before installing the motherboard. If the motherboard you purchased did not include a standard I/O shield, contact the motherboard vendor for a compatible shield. Installing the I/O Shield 1. -
Page 48: Permanent And Optional Standoffs
SC813M Chassis Manual Chassis Standoffs Figure 5-8: Chassis Standoffs Permanent and Optional Standoffs Standoffs prevent short circuits by securing space between the motherboard and the chassis surface. The SC813M chassis includes permanent standoffs in locations used by most motherboards. These standoffs accept the rounded Phillips head screws included in the SC813M accessories packaging. -
Page 49: Installing The Motherboard
Chapter 5: Chassis Setup and Maintenance Installing the Motherboard Installing the Motherboard 1. Review the documentation that came with your motherboard. Become familiar with component placement, requirements, precautions, and cable connec- tions. 2. Power down the system and unplug the power cord from the rear of the power supply. -
Page 50: Installing Expansion Cards
SC813M Chassis Manual Installing Expansion Cards Expansion Card Plugs into the PCI Slot Bracket Riser Card Here Riser Card Bracket Riser Card Bracket Screws Riser Card Figure 5-10: Expansion Card, Riser Card, Bracket and PCI Slot Cover Installing an Expansion Card 1. -
Page 51: Installing The Air Shroud
Chapter 5: Chassis Setup and Maintenance Installing the Air Shroud Figure 5-11: Air Shroud Installation Air shrouds concentrate airflow to maximize fan efficiency. The SC813M chassis air shroud does not require screws to install it. Installing the Air Shroud 1. Power down the system and unplug the power cord from the rear of the power supply. -
Page 52: 5-8 Checking The Airflow
SC813M Chassis Manual 5-8 Checking the Airflow Checking the Server's Airflow 1. Make sure there are no objects to obstruct airflow in and out of the server. 2. Do not operate the server without drives or drive carriers in the drive bays. Use only recommended server parts. -
Page 53: System Fans
Chapter 5: Chassis Setup and Maintenance System Fans The SC813M chassis includes four heavy-duty fans with open slots for two additional fans to provide cooling for the chassis. These fans circulate air through the chassis as a means of lowering the chassis internal temperature. Replacing a System Fan 1. - Page 54 SC813M Chassis Manual Figure 5-12: Installing the Fan Tray into the Chassis Figure 5-13: Fan Tray Secured to the Chassis 5-14...
-
Page 55: 5-10 Power Supply
Chapter 5: Chassis Setup and Maintenance 5-10 Power Supply The SC813M chassis has one 280, 300, 350, 410, 420, 520 or 600 Watt power supply, or comes with two 400 Watt redundant power supplies. The power supplies are auto-switching capable. This enables it to automatically sense and operate at a 100v to 240v input voltage. - Page 56 SC813M Chassis Manual The SC813MTQ-R400CB model chassis features redundant power supplies. The power supply can be changed without powering-down the server. Changing a 400 Watt Redundant Power Supply 1. Press the release button on the failed power supply. 2. Use the handle to gently slide the power supply out the back of the chassis. 3.
-
Page 57: 5-11 Removing The Backplane
Chapter 5: Chassis Setup and Maintenance 5-11 Removing the Backplane The SC813M chassis backplane is located behind the hard drives and in front of the front system fans. In order to change jumper settings on the backplane, it may be necessary to remove the backplane from the chassis. Removing the Backplane from the Chassis 1. -
Page 58: 5-12 Installing The Backplane
SC813M Chassis Manual 5-12 Installing the Backplane Installing the Backplane into the Chassis 1. Power down the system and unplug the power cord from the rear of the power supply. Open the chassis cover as described in Section 5-3. Lay the chassis on a flat, stable surface and remove the chassis cover. -
Page 59: Chapter 6 Rack Installation
Chapter 6 Rack Installation Chapter 6 Rack Installation Overview This chapter provides a quick setup checklist to get your chassis up and running. Following these steps in the order given should enable you to have the system operational within a minimum amount of time. Unpacking the System You should inspect the box the chassis was shipped in and note if it was damaged in any way. -
Page 60: Rack Precautions
SC813M Chassis Manual Rack Precautions • Ensure that the leveling jacks on the bottom of the rack are fully extended to the floor with the full weight of the rack resting on them. • In single rack installation, stabilizers should be attached to the rack. •... -
Page 61: Reduced Airflow
Chapter 6 Rack Installation environment compatible with the manufacturer’s maximum rated ambient tempera- ture (Tmra). Reduced Airflow Equipment should be mounted into a rack so that the amount of airflow required for safe operation is not compromised. Mechanical Loading Equipment should be mounted into a rack so that a hazardous condition does not arise due to uneven mechanical loading. -
Page 62: Rack Mounting Instructions
SC813M Chassis Manual Rack Mounting Instructions This section provides information on installing the SC813M chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly. You should also refer to the instal- lation instructions that came with the rack unit you are using. -
Page 63: The Inner Rail Extension (Optional)
Chapter 6 Rack Installation Figure 6-2: Identifying the Sections of the Rack Rails (right side rail shown) The Inner Rail Extension (Optional) The inner rails are pre-attached and do not interfere with normal use of the chassis if you decide not to use a server rack. Attach the inner rail extension to stabilize the chassis within the rack. -
Page 64: Outer Rack Rails
SC813M Chassis Manual Secure to the Front of the Rack Secure to the Rear of the Rack Attach Outer Racks together Figure 6-3: Assembling the Outer Rails Outer Rack Rails Outer rails attach to the server rack and hold the server in place. The outer rails for the SC813M chassis extend between 30 inches and 33 inches. - Page 65 Chapter 6 Rack Installation Figure 6-4: Installing into a Rack Note: figures are for illustrative purposes only. Always install servers into racks from the bottom up. Installing the Chassis into a Rack 1. Confirm that chassis includes the inner rails and rail extensions. Also, confirm that the outer rails are installed on the rack.
- Page 66 SC813M Chassis Manual Figure 6-5: Installing into an Open Rack Note: figures are for illustrative purposes only. Always install servers into racks from the bottom up. Installing the Chassis into a Mid-Mount Position (Telco) Rack 1. Use the two L-shaped brackets on either side of the chassis (four total). 2.
-
Page 67: Appendix A: Chassis Cables
This appendix lists supported cables for your chassis system. It only includes the most commonly used components and configurations. For more compatible cables, refer to the manufacturer of the motherboard you are using and our Web site at: www.supermicro.com. Cables Included with SC813M Chassis SC813MT-350CB... - Page 68 SC813M Chassis Manual SC813MFTQ-520CB, SC813MTQ-350CB Part # Type Length Description Ribbon CBL-0049L Front panel cable cable Round CBL-0051L 23.622" (60 cm) Floppy cable cable CBL-0186L Cable 13.779 (35 cm) SATA cable Ribbon CBL-0157L 8-pin to 8-pin cable for SGPIO cable SC813MFTQ-520CB Part # Type...
- Page 69 Appendix A: Chassis Cables SC813MT-410CB, SC813MT-300CB Part # Type Length Description Ribbon CBL-0049L Front panel cable cable Round CBL-0051L 23.622" (60 cm) Peripheral drive cable cable CBL-0061L Cable 13.779 (35 cm) SATA cable CBL-0068 Cable 16-pin front panel split cable SC813MTQ-280CB Part # Type...
-
Page 70: Compatible Cables
SC813M Chassis Manual Compatible Cables These cables are compatible with the SC813M chassis. This section lists cables included with the SC813M chassis packages. Alternate SAS/SATA Cables Some compatible motherboards have different connectors. If your motherboard has only one SAS connector that the SAS/SATA cables must share, use one of the following cables. -
Page 71: Extending Power Cables
Appendix A: Chassis Cables Extending Power Cables Although Supermicro chassis are designed with to be efficient and cost-effective, some compatible motherboards have power connectors located in different areas. To use these motherboards you may have to extend the power cables to the mother boards. - Page 72 SC813M Chassis Manual Notes...
-
Page 73: Appendix Bsc813M Power Supply Specifications
Appendix B: Power Supply Specifications Appendix B SC813M Power Supply Specifications This appendix lists power supply specifications for your chassis system. SC813MTQ-280CB 280W MFR Part # PWS-281-1H AC Voltage 100 - 240V, 60-50Hz, 5 Amp DC Output 5V + 3.3V ≤ 100W +5V standby 2 Amp 23Amp @ 100-140V +12V 27Amp @ 180-240V... - Page 74 SC813M Chassis Manual SC813MTQ-R400CB 400W MFR Part # PWS-406P-1R AC Input 400W: 100-240 V, 50-60 Hz, 6-3 Amp DC Output 3 Amp +5V standby DC Output 33 Amp +12V +5V: 25 Amp With Power +3.3V: 25 Amp Distributor -12V: 0.6 Amp SC813MT-410CB 410W MFR Part #...
- Page 75 Appendix B: Power Supply Specifications SC813MT-420CB 420W MFR Part # PWS-0053 100 - 240V AC Voltage 60-50Hz 7 Amp Max DC Output +5V standby 2 Amp +12V 15 Amp +12V 15 Amp +12V 18 Amp -12V 1 Amp +5V 30 Amp +3.3V 20 Amp SC813MFTQ-520CB, SC813MTQ-520CB 520W...
- Page 76 SC813M Chassis Manual Notes...
-
Page 77: Appendix C Bpn-Sas-815Tq Backplane Specifications
Appendix C: BPN-SAS-815TQ Backplane Specifications Appendix C BPN-SAS-815TQ Backplane Specifications To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. C-1 ESD Safety Guidelines Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully. -
Page 78: An Important Note To Users
SC813M Chassis Manual C-3 An Important Note to Users All images and layouts shown in this user's guide are based upon the latest PCB revision available at the time of publishing. The card you have received may or may not look exactly the same as the graphics shown in this manual. C-4 Front Connectors JP29:9071 RST JP40... - Page 79 Appendix C: BPN-SAS-815TQ Backplane Specifications C-5 Front Connector and Settings 1. Backplane Main Power Connectors Backplane Main Power 4-Pin Connector The 4-pin connector designated JP10 provides Pin# Definition power to the backplane. See the table on the +12V right for pin definitions. 2 and 3 Ground 2.
- Page 80 SC813M Chassis Manual 6. Sideband Headers Sideband Headers Pin # Definition Pin # Definition The sideband headers are designated JP51. Backplane Controller For SES-2 to work properly, you must connect Addressing ID (SB6) an 8-pin sideband cable. See the table to the (SB5) right for pin definitions.
-
Page 81: Explanation Of Jumpers
Appendix C: BPN-SAS-815TQ Backplane Specifications C-6 Front Jumper Locations Settings JP29 JP18 JTAG UPGRADE JP29:9071 RST JP18:BUZZER RESET JP40 JP42 JP51 UPER SAS815TQ JP29 JP18 JP33 REV 1.00 JP34 M9 M15 SIDEBAND +12V JP47 JP10 +12V +12V JP26 JP44 ACT IN ACT2 ACT3 ACT0 ACT1... -
Page 82: Rear Connectors And Led Indicators
SC813M Chassis Manual C-7 Rear Connectors and LED Indicators M 9 M 1 H 2 M 4 SAS #0 SAS #1 SAS #2 SAS #3 Figure C-4: Rear Connectors and LEDs Rear SAS/SATA Connectors Rear Connector SAS Drive Connector Number Number SAS #0 SAS/SATA HDD #0... -
Page 83: I 2 C And Sgpio Modes And Jumper Settings
Appendix C: BPN-SAS-815TQ Backplane Specifications C and SGPIO Modes and Jumper Settings This backplane can utilize I C or SGPIO. I C is the default mode and can be used without making changes to your jumpers. The following information details which jumpers must be configured to use SGPIO mode or restore your backplane to I mode. - Page 84 SC813M Chassis Manual Disclaimer (cont.) The products sold by Supermicro are not intended for and will not be used in life sup- port systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to per- form be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
