Summary of Contents for Furniture of America EC7231

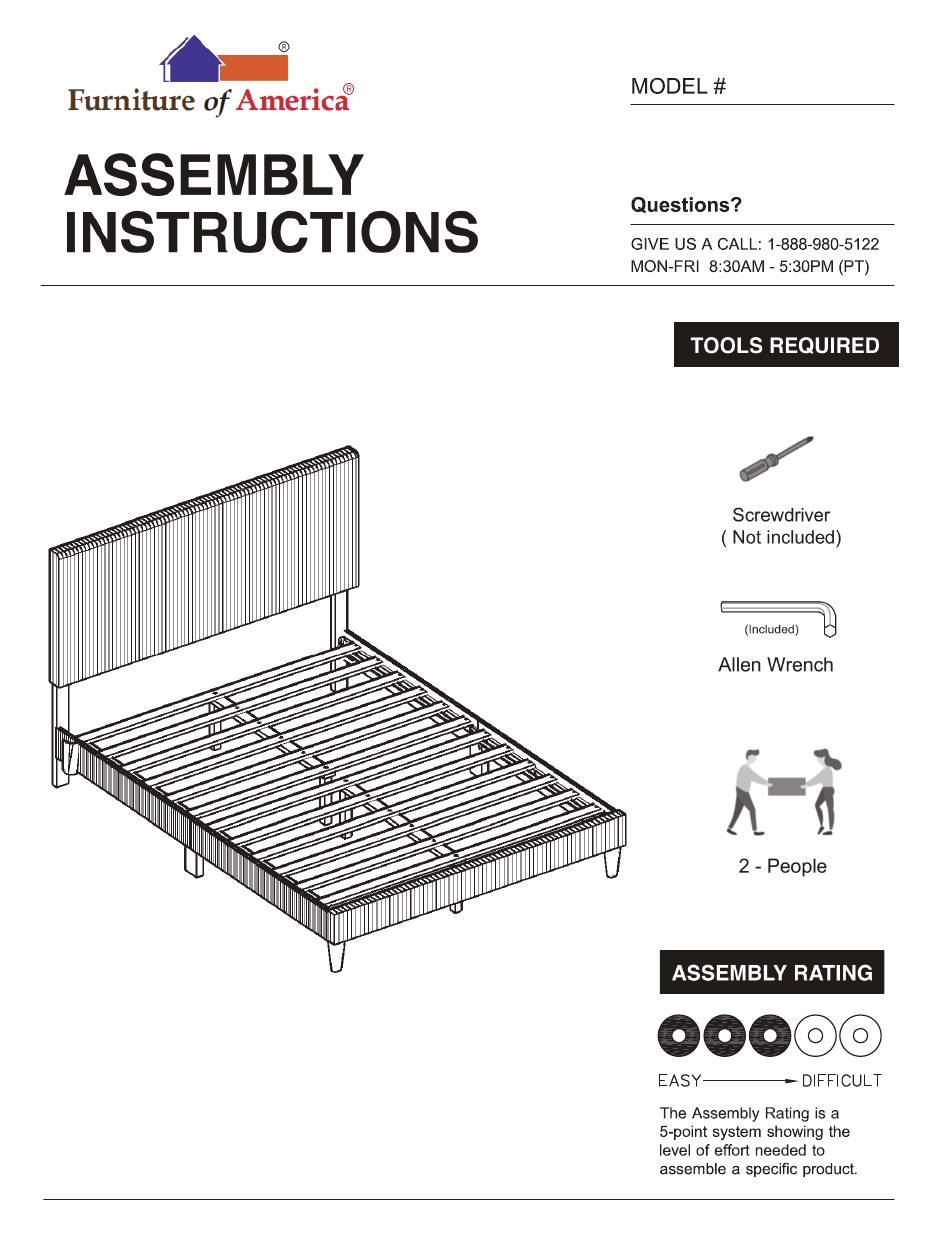

- Page 1 EC7231 VERSION # 24-02-06 1/10...
- Page 2 2/10...
- Page 3 3/10...
- Page 4 4/10...
- Page 5 PARTS Headboard Headboard Headboard Side Rail 1 Leg (Left) Leg (Right) 1 pc. 2 pcs. 1 pc. 1 pc. Side Rail 2 Footboard Center Rail Center Leg 2 pcs. 1 pc. 2 pcs. 4 pcs. Side Rail Leg Bed Leg Slat Headboard Fabric...
- Page 6 HARDWARE Allen Key M4 Allen Key M5 JCBC Bolt JCBC Bolt M6 x 50mm M6 x 45mm 1 pc. 1 pc. 4 pcs. 6 pcs. JCBC Bolt M6 Spring M6 Flat Washer Wood Screw M6 x 25mm Washer M4 x 25mm 8 pcs.
- Page 7 ASSEMBLY INSTRUCTIONS Attach the Side Rails (#3) to Side Rail Leg (#7) using Bolt (#E). Part #3L x 2pcs Part #3R x 2pcs Part #7 x 2pcs Hardware #E x 8pcs I. Attach the Headboard Legs (#2L, 2R) to Headboard (#1) using Bolt (#D) with Spring Washer (#F) and Flat Washer (#G).
- Page 8 ASSEMBLY INSTRUCTIONS Align one Side Rail (#3L) with Headboard Leg (#2R) and hook pre-attached bracket onto the protruding bolts. Align Side Rail (#3R) with Footboard (#4) and hook pre-attached bracket onto the protruding bolts. Tighten bolts with provided Allen Wrench (#B). Align Side Rail (#3R) with Headboard Leg (#2L) and hook pre-attached bracket onto the protruding bolts.
- Page 9 ASSEMBLY INSTRUCTIONS Place assembled Slats over the Side Rails. Secure every outer end of an individual slat to the Side Rails with Wood Screws (#H). Secure the center of each inner slat to the Center Rail (#5) with Wood Screws (#H). Hardware #H x 32pcs Part #10 x 1pc Slide Headboard Fabric (#10)
- Page 10 ASSEMBLY INSTRUCTIONS Attach the Side Rail & Footboard Fabric (#11) using the Velcro adhesive. Part #11 x 1pc 10/10...
