VERSION # 19-08-09
1 / 11

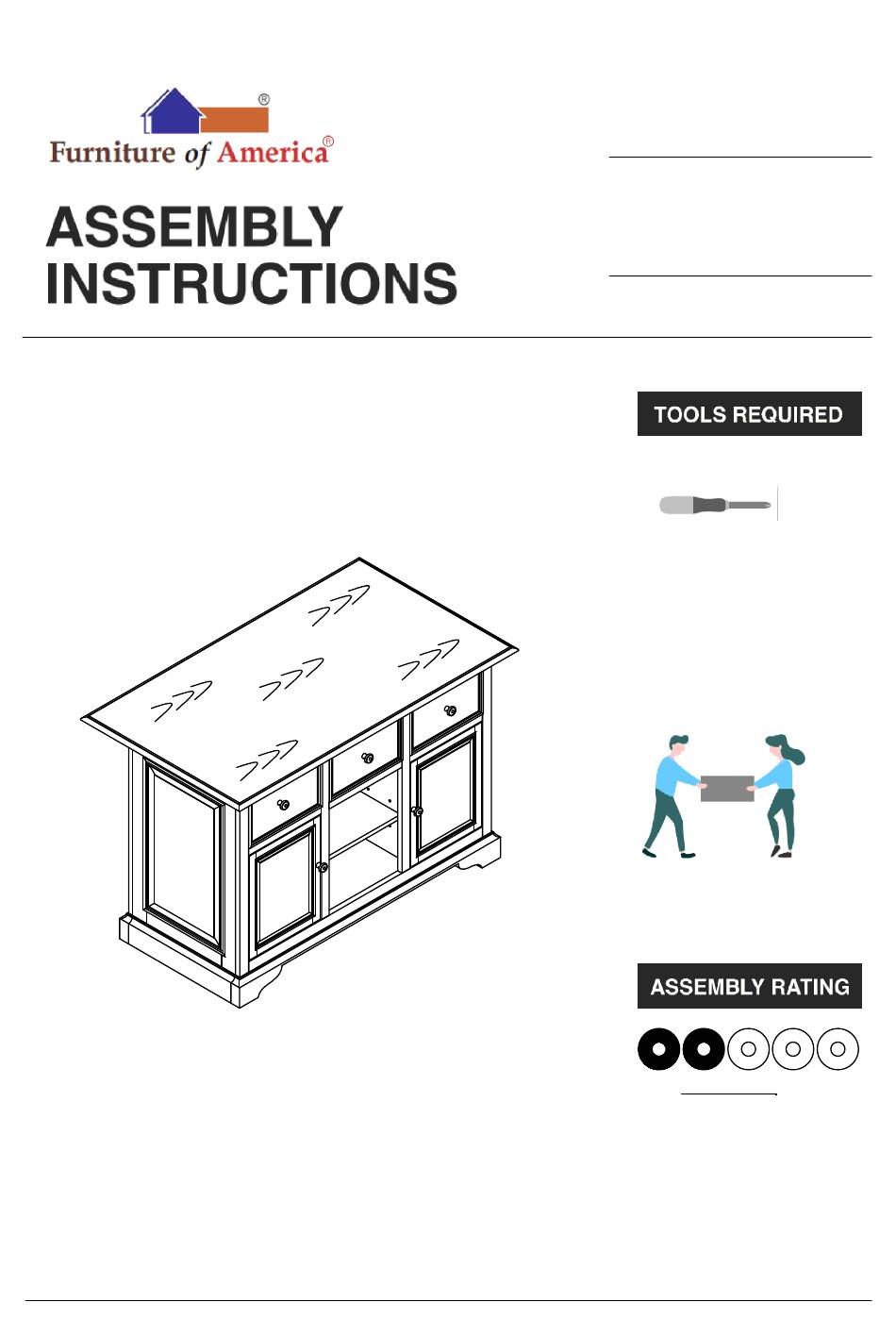

MODEL #
CM-AC566
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Phillips
Screwdriver
(Not Included)
2 - Persons
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM-AC566
Summary of Contents for Furniture of America CM-AC566
- Page 1 MODEL # CM-AC566 Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Phillips Screwdriver (Not Included) 2 - Persons Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 11...
- Page 5 KITCHEN ISLAND CM-AC566 #1 1pc #2 1pc #3 1pc #4 2pcs Back Panel Right Side Panel Left Side Panel L/R Partition Panel #5 2pcs #6 1pc #7 1pc #8 1pc Bottom Panel Middle Bottom Panel Front Frame Top Panel #9 2pcs...
- Page 6 #A 2pcs #B 5pcs #C 2pcs Knob Ø36x28mm Handle screw Dowel Ø8*30mm Ø5/32"x36mm #D 3pcs #E 12pcs #F 12pcs Shelf Support Bolt Handle screw Ø1/4"x32mm Ø6.5mm Ø5/32"x28mm # 4R # 4L 6 / 11...
- Page 7 ASSEMBLY INSTRUCTIONS Align and attach side panels (#1,3) and partition panels (#4R/L) to the back panel (#2). Part #1 x1pc Part #2 x1pc Part #3 x1pc Part #4 x2pcs Align and attach front frame (#8) to the panels. Part #8 x1pc # 4R # 4L 7 / 11...
- Page 8 ASSEMBLY INSTRUCTIONS Place bottom panels (#5,6) to the bottom of the product. Part #5 x2pcs Part #6 x1pc Attach shelf pins (#E) to the desired height of the shelves (#9,10). Part #9 x2pcs Part #10 x1pc Hardware #E x12pcs 8 / 11...
- Page 9 ASSEMBLY INSTRUCTIONS Align and attach wing shape panels (#16) to the back panel (#2). Part #16 x2pcs Insert dowels (#A) to the wing shape panels (#16), then Part #7 x1pc align top panel (#7) to the product. Secure by using the Hardware #A x2pcs latches.
- Page 10 ASSEMBLY INSTRUCTIONS Align and attach drawer side panels (#13,14) to the front panels (#15). Part #13 x1pc Part #14 x1pc Part #15 x1pc Align and slide drawer bottom panels (#11) through the thin lined gaps of the drawer, then align drawer back panels (#12) to the drawers. Secure by using Part #9 x1pc bolts (#F).
- Page 11 ASSEMBLY INSTRUCTIONS Attach drawers to product, then secure knobs (#B) to drawers by using bolts (#D). Hardware #B x 3pcs Hardware #D x 3pcs Hardware #B x 2pcs Hardware #C x 2pcs Adjust levelers on the bottom of the product according to ground level. Secure knobs (#B) to the doors by using bolts (#C).
