3. Vertical Part
9. FWD/Back Part & Vertical Part Assembly

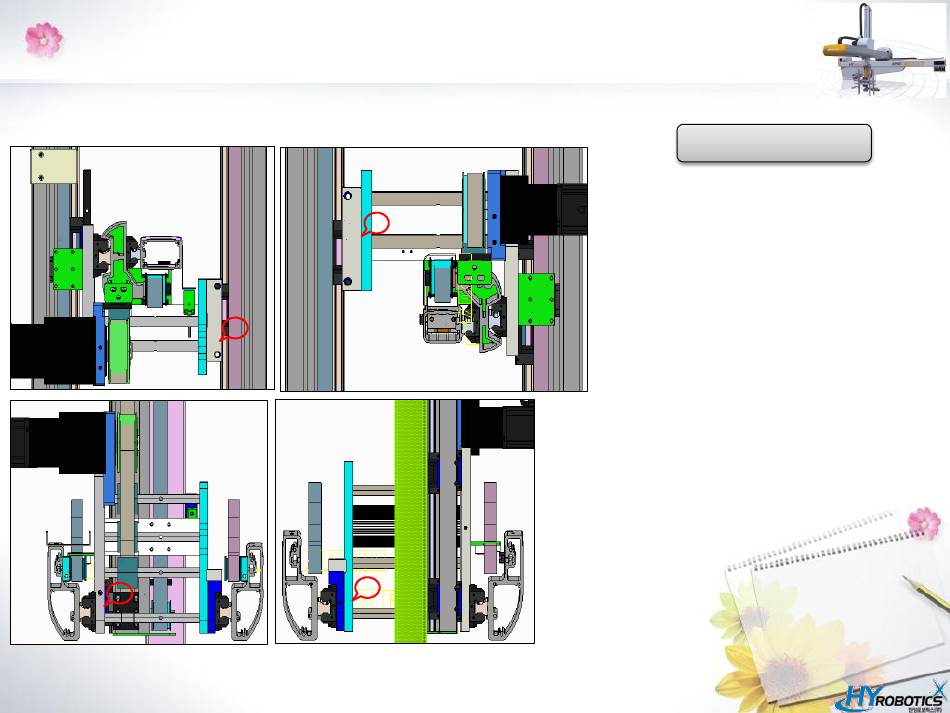

Key Point
1) Once the vertical unit is fully assembled,
1
place it on top of the forward/reverse PLATE
and assemble it.
2) Connect the PLATE assembled to the
1
FWD/Back LM BLOCK with the PLATE attached
to the vertical unit.
3) On the opposite side of the FWD/Back unit
(the side without the PLATE), check for any
noise or obstructions during the movement of
the vertical unit.
4) After assembling the FWD/Back unit and the
vertical unit, move the FWD/Back unit to check
3
for any noise or obstructions during movement.
3
