Summary of Contents for AEG CGX1130ACW

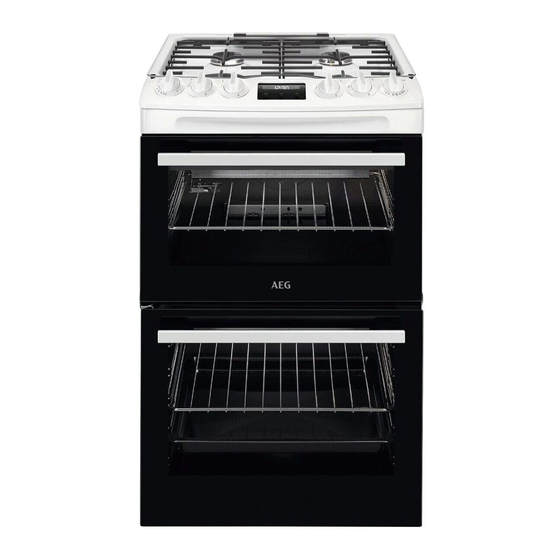

- Page 1 EN User Manual | Cooker CGX1130ACW CGX1130ACB CGX1130ACM aeg.com\register...
-
Page 2: Table Of Contents
Welcome to AEG! Thank you for choosing our appliance. Get usage advice, brochures, troubleshooting, service and repair information: www.aeg.com/support Subject to change without notice. CONTENTS 1. SAFETY INFORMATION................2 2. SAFETY INSTRUCTIONS................5 3. INSTALLATION....................8 4. PRODUCT DESCRIPTION................11 5. BEFORE FIRST USE..................12 6. -
Page 3: General Safety
be kept away from the appliance unless continuously supervised. • Children should be supervised to ensure that they do not play with the appliance. • Keep all packaging away from children and dispose of it appropriately. • WARNING: The appliance and its accessible parts become hot during use. - Page 4 • CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously. • WARNING: Danger of fire: Do not store items on the cooking surfaces. • Do not use a steam cleaner to clean the appliance. •...
-
Page 5: Safety Instructions
2. SAFETY INSTRUCTIONS electrical ratings of the mains power This appliance is suitable for the following supply. markets: IE GB • Always use a correctly installed shockproof socket. 2.1 Installation • Do not use multi-plug adapters and extension cables. • Do not let mains cables touch or come WARNING! near the appliance door or the niche below Only a qualified person must install this... - Page 6 installation regulations. Follow the WARNING! requirements for adequate ventilation. Risk of fire and explosion. 2.4 Use • Fats and oil when heated can release flammable vapours. Keep flames or WARNING! heated objects away from fats and oils Risk of injury and burns. when you cook with them.
-
Page 7: Care And Cleaning
• Cookware made of cast iron, aluminium or • Do not clean the burners in the with a damaged bottom can cause dishwasher. scratches. Always lift these objects up 2.6 Lid when you have to move them on the cooking surface. •... -
Page 8: Installation
• Contact your municipal authority for • Cut off the mains electrical cable close to information on how to dispose of the the appliance and dispose of it. appliance. • Flat the external gas pipes. • Disconnect the appliance from the mains supply. -
Page 9: Other Technical Data
3.5 Other technical data WARNING! These instructions are only valid in the countries whose symbols appear on this booklet's cover. 180 mm Gas category: 30 mm Gas supply: G20 (2H) 20 mbar Voltage: 220-240 V Frequency: 50 Hz 3.6 Gas burners BURNER NORMAL POWER Natural Gas... -
Page 10: Pressure Test
2. Put on the burner crowns and caps. Make sure that they are correctly seated. 3. Put on the pan supports. Use flexible tubing, which comply with 4. Light one of the hob burners. the BS.669 current edition. To light the hob burner refer to the "Ignition of the hob burners". -
Page 11: Product Description
4. PRODUCT DESCRIPTION 4.1 General overview Control panel and hob Air vents for the cooling fan Grill Lamp Shelf support, removable Shelf positions 4.2 Hob overview Auxiliary burner Power rapid burner Semi-rapid burner 4.3 Cooker control panel Knob for the top oven Knobs for the hob Steam outlet - number and position depend on the model... -
Page 12: Before First Use
4.4 Accessories For roasting and grilling. • Wire shelf For cookware, cake tins, roasts. Use the trivet only with the Grill- / • Grill- / Roasting pan roasting pan. To bake and roast or as pan to collect fat. • Trivet 5. -
Page 13: Burner Overview
2. Keep the knob for the hob pushed for equal or less than 10 seconds to let the thermocouple warm up. If not, the gas It is not possible to use the hob without supply is interrupted. electricity. 3. Adjust the flame after it is regular. WARNING! If the burner accidentally goes out, turn Do not keep the knob pushed for more... -
Page 14: Hob - Hints And Tips
WARNING! WARNING! Always turn the flame down or switch it Always use the knob for the hob to switch off before you remove the pans from the off a burner. Do not use the lid as a cut- burner. off device. 6.5 Lid Safety Device Lid has safety device, which cuts off the gas supply for the hob. -
Page 15: Hob - Care And Cleaning
8. HOB - CARE AND CLEANING 3. After you clean the pan supports, make WARNING! sure that they are in correct positions. 4. For the burner to operate correctly, make Refer to Safety chapters. sure that the arms of the pan supports are aligned with the center of the burner. -
Page 16: Main Oven Functions
9.2 Main Oven Functions Oven function Application Off position The appliance is off. Minimum temperature To set the minimum temperature. Heat settings Heat settings for Conventional Cooking. 1 - 8 Ignition To activate the main oven. min - 135 °C, 1 - 155°C, 2 - 170°C, 3 -185°C, 4 - 210°C, 5 - 235°C, 6 - 250°C, 7 - 260°C, 8 - 265 °C 9.3 Igniting the oven burners WARNING! Do not push the knob for more than 15... -
Page 17: Cooling Fan
2. Adjust the deep pan runner position to fit Wire shelf: in different portions of food. Push the shelf between the guide bars of the Refer to Grilling in "Hints and Tips" chapter. shelf support. 9.6 Cooling fan When the appliance operates, the cooling fan turns on automatically to keep the surfaces of the appliance cool. -
Page 18: Oven - Clock Functions
Make sure the supports of the wire shelf point up. Make sure the supports of the wire shelf point down. 10. OVEN - CLOCK FUNCTIONS 10.1 Display A. Minute minder indicator B. Time display C. Time of day indicator 10.2 Buttons Button Function Description... -
Page 19: Oven - Hints And Tips
11. OVEN - HINTS AND TIPS WARNING! Refer to Safety chapters. Do not put wire shelves, trays or pans on the first grid position. The trays and pans cover the oven burner and block closing the oven door. The temperature and baking times in the tables are guidelines only. -
Page 20: Catalytic Cleaning
• Clean the cavity after each use. Fat The oven cavities must be cleaned accumulation or other residue may cause separately. fire. 12.3 Cleaning the top oven • Do not store food in the appliance for longer than 20 minutes. Dry the cavity only 1. -
Page 21: Removing And Cleaning The Door Glasses - Top Oven
CAUTION! Make sure that the longer fixing wire is in the front. The ends of the two wires must point to the rear. Incorrect installation can cause damage to the enamel. 12.6 Removing and cleaning the door glasses - top oven The door glass in your product can be different in type and shape from the examples you see in the image. -
Page 22: Troubleshooting
13. TROUBLESHOOTING WARNING! Refer to Safety chapters. 13.1 What to do if... Problem Possible cause Remedy You cannot activate the appliance. The appliance is not connected to Check if the appliance is correctly an electrical supply or it is connec‐ connected to the electrical supply. -
Page 23: Energy Efficiency
14.3 Product Information Sheet and Product Information according to EU and UK Energy Labelling and Ecodesign Regulations for Oven Supplier's name CGX1130ACW 948905186 Model identification CGX1130ACB 948905187 CGX1130ACM 948905188 Top oven: 95.1 Energy Efficiency Index Main oven: 90.0... -
Page 24: Oven - Energy Saving
Number of cavities Heat source Top oven: 36 l Volume Main oven: 83 l Type of oven Oven inside Freestanding Cooker CGX1130ACW 56.6 kg Mass CGX1130ACB 57.0 kg CGX1130ACM 57.0 kg EN 15181 Measuring method of the energy consumption of gas fired ovens. - Page 25 Electrolux Appliances AB - Contact Address: appliances marked with the symbol with Al. Powstancow Slaskich 26, 30-570 Krakow, the household waste. Return the product to Poland your local recycling facility or contact your municipal office. ENGLISH...
- Page 28 867364328-A-362024...
