- Page 1 EN User Manual | Cooker CGX6130ACM CGX6130ACB CGX6130ACW aeg.com\register...
-
Page 2: Table Of Contents
Welcome to AEG! Thank you for choosing our appliance. Get usage advice, brochures, troubleshooting, service and repair information: www.aeg.com/support Subject to change without notice. CONTENTS 1. SAFETY INFORMATION................2 2. SAFETY INSTRUCTIONS................5 3. INSTALLATION....................8 4. PRODUCT DESCRIPTION................11 5. BEFORE FIRST USE..................12 6. -
Page 3: General Safety
be kept away from the appliance unless continuously supervised. • Children should be supervised to ensure that they do not play with the appliance. • Keep all packaging away from children and dispose of it appropriately. • WARNING: The appliance and its accessible parts become hot during use. - Page 4 • CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously. • WARNING: Danger of fire: Do not store items on the cooking surfaces. • Do not use a steam cleaner to clean the appliance. •...
-
Page 5: Safety Instructions
2. SAFETY INSTRUCTIONS electrical ratings of the mains power This appliance is suitable for the following supply. markets: GB IE • Always use a correctly installed shockproof socket. 2.1 Installation • Do not use multi-plug adapters and extension cables. • Do not let mains cables touch or come WARNING! near the appliance door or the niche below Only a qualified person must install this... - Page 6 installation regulations. Follow the WARNING! requirements for adequate ventilation. Risk of fire and explosion. 2.4 Use • Fats and oil when heated can release flammable vapours. Keep flames or WARNING! heated objects away from fats and oils Risk of injury and burns. when you cook with them.
-
Page 7: Care And Cleaning
• Cookware made of cast iron, aluminium or • Do not clean the burners in the with a damaged bottom can cause dishwasher. scratches. Always lift these objects up 2.6 Lid when you have to move them on the cooking surface. •... -
Page 8: Installation
• Contact your municipal authority for • Cut off the mains electrical cable close to information on how to dispose of the the appliance and dispose of it. appliance. • Flat the external gas pipes. • Disconnect the appliance from the mains supply. -
Page 9: Other Technical Data
3.5 Other technical data WARNING! These instructions are only valid in the countries whose symbols appear on this booklet's cover. 180 mm Gas category: 30 mm Gas supply: G20 (2H) 20 mbar Voltage: 220-240 V Frequency: 50 Hz 3.6 Gas burners BURNER NORMAL POWER Natural Gas... -
Page 10: Pressure Test
2. Put on the burner crowns and caps. Make sure that they are correctly seated. 3. Put on the pan supports. Use flexible tubing, which comply with 4. Light one of the hob burners. the BS.669 current edition. To light the hob burner refer to the "Ignition of the hob burners". -
Page 11: Product Description

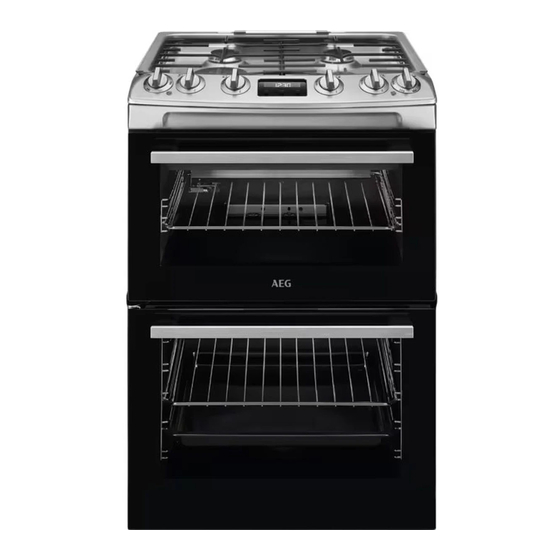

4. PRODUCT DESCRIPTION 4.1 General overview Control panel and hob Air vents for the cooling fan Grill Lamp Shelf support, removable Shelf positions 4.2 Hob overview Auxiliary burner Multicrown burner Semi-rapid burner 4.3 Cooker control panel Knob for the top oven Knobs for the hob Steam outlet - number and position depend on the model... -
Page 12: Before First Use
4.4 Accessories For roasting and grilling. • Wire shelf For cookware, cake tins, roasts. Use the trivet only with the Grill- / • Grill- / Roasting pan roasting pan. To bake and roast or as pan to collect fat. • Trivet 5. -
Page 13: Burner Overview
2. Keep the knob for the hob pushed for equal or less than 10 seconds to let the thermocouple warm up. If not, the gas It is not possible to use the hob without supply is interrupted. electricity. 3. Adjust the flame after it is regular. WARNING! If the burner accidentally goes out, turn Do not keep the knob pushed for more... -
Page 14: Turning The Burner Off
A. Burner cap B. Burner crown C. Ignition candle D. Thermocouple 6.3 Replacing burner parts WARNING! 1. Put carefully the burner crown on the Always turn the flame down or switch it burner body. Let the crown fall freely onto off before you remove the pans from the the body. -
Page 15: Hob - Care And Cleaning
7.2 Diameters of cookware WARNING! Do not put unstable or damaged pots on WARNING! the burner to prevent spills and injuries. Use cookware with diameters applicable to the size of burners. CAUTION! Make sure that pot handles are not Burner Diameter of cook‐... -
Page 16: Cleaning The Hob
8.3 Cleaning the hob • To clean the enamelled parts, caps and crowns, wash them with warm soapy • Remove immediately: melted plastic, water and dry them carefully before you plastic foil, salt, sugar and food with sugar, put them back on. otherwise, the dirt can cause damage to the hob. -
Page 17: Using The Grill
9.3 Igniting the oven burners CAUTION! In the absence of electricity you can CAUTION! ignite the oven burner without an When the oven is active, the lid has to be electrical device. In this case open the opened to avoid over-heating. oven door, put the flame near the hole in Keep the oven door open when you the bottom of the oven cavity, turn the... -
Page 18: Trivet And Grill- / Roasting Pan
• All accessories have small indentations at the top of the right and left side to increase safety. The indentations are also anti-tip devices. • The high rim around the shelf is a device which prevents cookware from slipping. Wire shelf: Push the shelf between the guide bars of the shelf support. -
Page 19: Oven - Clock Functions
Make sure the supports of the wire shelf point up. Make sure the supports of the wire shelf point down. 10. OVEN - CLOCK FUNCTIONS 10.1 Display A. Minute minder indicator B. Time display C. Time of day indicator 10.2 Buttons Button Function Description... -
Page 20: Oven - Hints And Tips
11. OVEN - HINTS AND TIPS WARNING! Refer to Safety chapters. Do not put wire shelves, trays or pans on the first grid position. The trays and pans cover the oven burner and block closing the oven door. The temperature and baking times in the tables are guidelines only. -
Page 21: Catalytic Cleaning
• Clean the cavity after each use. Fat The oven cavities must be cleaned accumulation or other residue may cause separately. fire. 12.3 Cleaning the top oven • Do not store food in the appliance for longer than 20 minutes. Dry the cavity only 1. -
Page 22: Removing And Cleaning The Door Glasses - Top Oven
CAUTION! Make sure that the longer fixing wire is in the front. The ends of the two wires must point to the rear. Incorrect installation can cause damage to the enamel. 12.6 Removing and cleaning the door glasses - top oven The door glass in your product can be different in type and shape from the examples you see in the image. -
Page 23: Troubleshooting
13. TROUBLESHOOTING WARNING! Refer to Safety chapters. 13.1 What to do if... Problem Possible cause Remedy You cannot activate the appliance. The appliance is not connected to Check if the appliance is correctly an electrical supply or it is connec‐ connected to the electrical supply. -
Page 24: Energy Efficiency
14.3 Product Information Sheet and Product Information according to EU and UK Energy Labelling and Ecodesign Regulations for Oven Supplier's name CGX6130ACM 948905195 Model identification CGX6130ACB 948905196 CGX6130ACW 948905197 Top oven: 95.1 Energy Efficiency Index Main oven: 90.0... -
Page 25: Oven - Energy Saving
Number of cavities Heat source Top oven: 36 l Volume Main oven: 83 l Type of oven Oven inside Freestanding Cooker CGX6130ACM 57.9 kg Mass CGX6130ACB 62.7 kg CGX6130ACW 62.6 kg EN 15181 Measuring method of the energy consumption of gas fired ovens. - Page 26 Electrolux Appliances AB - Contact Address: appliances marked with the symbol with Al. Powstancow Slaskich 26, 30-570 Krakow, the household waste. Return the product to Poland your local recycling facility or contact your municipal office. ENGLISH...
- Page 28 867364146-A-292024...
