- Page 1 ROHM USB Type-C Power Delivery Evaluation Board Manual BM92A56MWV-EVK-001 Ver.1.00 ROHM USB Type-C Power Delivery Evaluation Board Manual BM92A56MWV-EVK-001 Ver.1.00 Date:03-Mar,2017 ROHM Co.,Ltd. URL http://www.rohm.com...
- Page 2 ROHM USB Type-C Power Delivery Evaluation Board Manual BM92A56MWV-EVK-001 Ver.1.00 Introduction This board is dedicated to supplying power with USB Type-C Power Delivery, and voltage profile (PDO) is 5V, 9V, 12V, 15V, 20V. If you want to check the operation of Power Delivery, please prepare capable of receiving power USB Type-C Power Delivery device and USB Type-C dedicated cable.
- Page 3 ROHM USB Type-C Power Delivery Evaluation Board Manual BM92A56MWV-EVK-001 Ver.1.00 Evaluation Board Circuit and Pin Explanation VBUS VSVR Figure2. Evaluation Board Circuit ROHM Co.,Ltd. URL http://www.rohm.com...

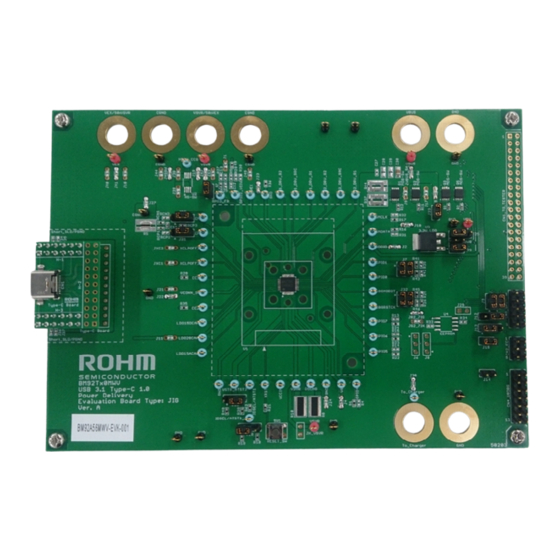

- Page 4 ROHM USB Type-C Power Delivery Evaluation Board Manual BM92A56MWV-EVK-001 Ver.1.00 VSVR VBUS Type-C Receptacle Figure3. Evaluation Board Photo ・VEX pin：5V voltage input pin. Although it is named VEX pin on the board, it is connected to the VSVR pin of the PDIC.
- Page 5 ROHM USB Type-C Power Delivery Evaluation Board Manual BM92A56MWV-EVK-001 Ver.1.00 How to use and evaluate 1. Please input 5V to VEX pin and 5V or 9V or 12V or 15V or 20V to VSVR pin of this board. 5V or 9V or 12V or 15V or 20V Figure4.
- Page 6 ROHM USB Type-C Power Delivery Evaluation Board Manual BM92A56MWV-EVK-001 Ver.1.00 Power Delivery Operating Waveform When connecting this board (Source side) and power receiving device (Sink side) using Type-C dedicated cable, the Source side detects the Sink side and outputs 5V voltage to the VBUS pin.
- Page 7 ROHM USB Type-C Power Delivery Evaluation Board Manual BM92A56MWV-EVK-001 Ver.1.00 Evaluation Board Layout Figure7. Top Layer Layout Figure8. Second Layer Layout ROHM Co.,Ltd. URL http://www.rohm.com...
- Page 8 ROHM USB Type-C Power Delivery Evaluation Board Manual BM92A56MWV-EVK-001 Ver.1.00 Figure9. Third Layer Layout Figure10. Bottom Layer Layout ROHM Co.,Ltd. URL http://www.rohm.com...
- Page 9 Products. ROHM does not grant you, explicitly or implicitly, any license to use or exercise intellectual property or other rights held by ROHM or any other parties. ROHM shall have no responsibility whatsoever for any dispute arising out of the use of such technical information.
- Page 10 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: ROHM Semiconductor BM92A56MWV-EVK-001...
