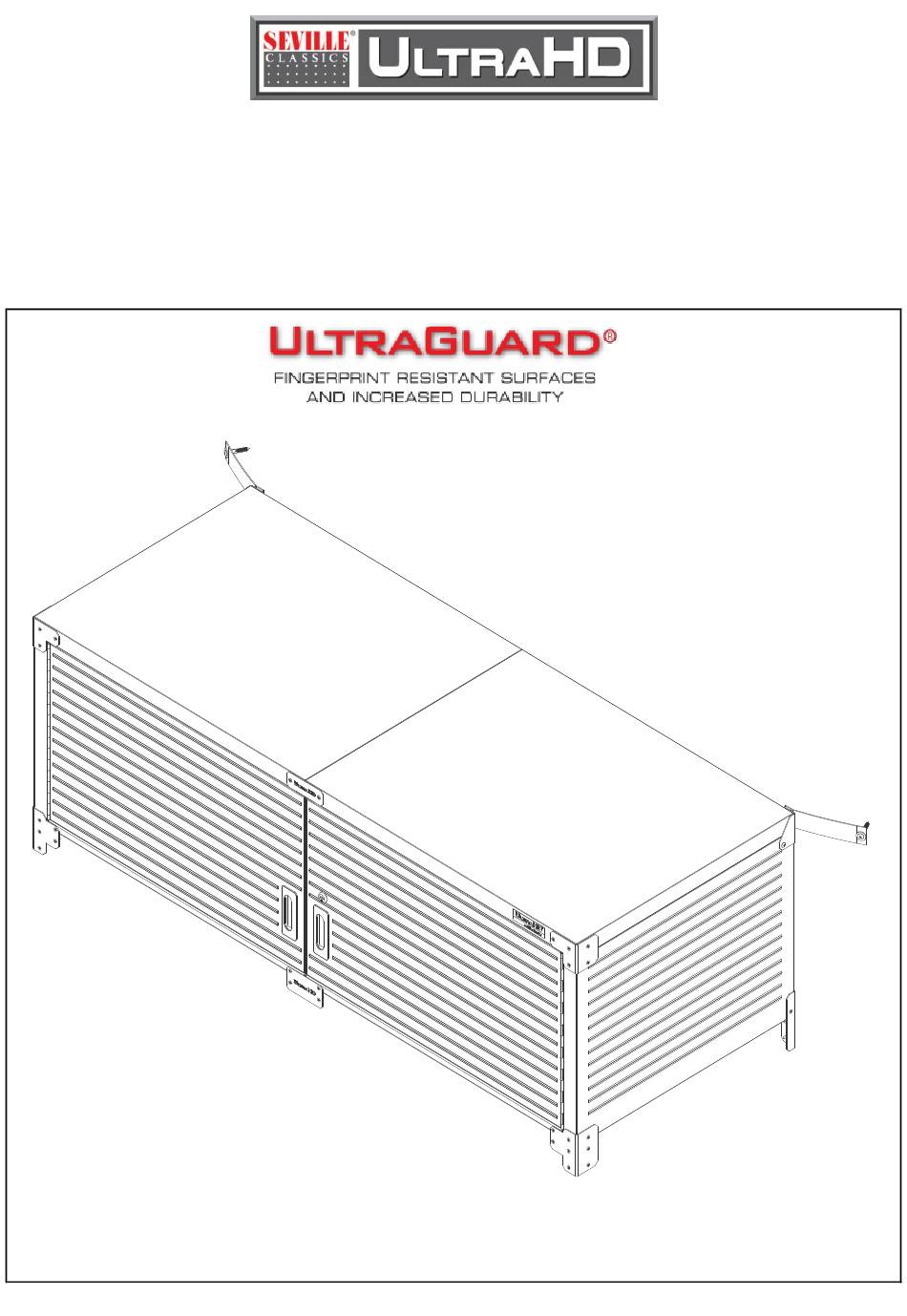

ASSEMBLY INSTRUCTIONS

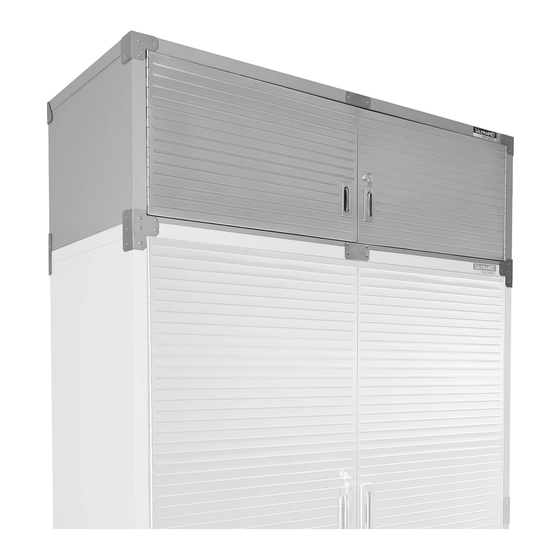

UltraHD® Stacking Top Cabinet
(Model No. UHD20260T, UHD20261T, UHD20061T, UHD20062T)
Granite
Graphite
Red
White
60in. W x 24in. D x 18.5in. H
(152.4cm x 60.96cm x 47cm H)
Reference page 9 for special care
and maintenance of stainless steel
Compatible only with
Seville Calssics® UltraHD®
60"W x 24"D Storage Cabinets
(See Page 10)
SC240719
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Seville Classics ULTRAGUARD UltraHD UHD20260T
Summary of Contents for Seville Classics ULTRAGUARD UltraHD UHD20260T
- Page 1 ASSEMBLY INSTRUCTIONS UltraHD® Stacking Top Cabinet (Model No. UHD20260T, UHD20261T, UHD20061T, UHD20062T) Granite Graphite White 60in. W x 24in. D x 18.5in. H (152.4cm x 60.96cm x 47cm H) Reference page 9 for special care and maintenance of stainless steel Compatible only with Seville Calssics®...
- Page 2 #3-A #14-A #20-A #15-A #55-A #79-1 #17-A #27-B #12-A #23-C #19-A #79-2 #18-A (#3-A) Top Panel...
-
Page 3: Parts List
PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please call our customer service department (please see page 11.) (#1) Left Panel x 1 PC (#2) Right Panel x 1 PC (#3-A2) Right -Top Panel x 1 PC (#3-A1) Left-Top Panel x 1 PC （#79-1）Left - Bottom Panel Connection Part x 1 PC... - Page 4 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please call our customer service department (please see page 11.) (#6) Left Door Panel x 1 PC (#7) Right Door Panel x 1 PC (#8) Left -Back Panel x 1 PC (#9) Right-Back Panel x 1 PC (#15) Corner Protection - A x 1 PC...
- Page 5 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please call our customer service department (please see page 11.) (#17-A) Left Front Bottom Corner Protection x 1 PC (#18-A) Right Front Bottom Corner Protection x 1 PC （#20-A) Left Back Bottom Corner Protection x 1 PC （#19-A) Right Back Bottom Corner Protection x 1 PC (#14) Logo Connection Part x 1 PC...
- Page 6 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please call our customer service department (please see page 10.) M8X20 pcs (#55) Screw M (M6 x 50L) x 2 PCS (#27-B) Washer (M8) x 2 PCS (#41) Screw F (M4 x 8L) x 61PCS (#61) Screw O (M4 x 12L) x 2 PCS (#27) Washer (M4) x 2 PCS...
- Page 7 UltraHD® Stacking Top Cabinet (Model No. UHD20260T, UHD20261T, UHD20061T, UHD20062T) *NOTE: We recommend using TWO people to assemble the cabinet* #3-A2 Step 1: Install Top Panel (#3-A) 1). Insert the Top / Bottom Panel Connection Part (#3-A3) into the Left Top Panel (#3-A1), line up #3-A3 screw holes, and use 2 pcs of Screw F (#41) to tighten.
- Page 8 UltraHD® Stacking Top Cabinet (Model No. UHD20260T, UHD20261T, UHD20061T, UHD20062T) *NOTE: We recommend using TWO people to assemble the cabinet* Step 5: Install Front Post (#12-A) Attached the Front Post Connection Part (#12- A2) with the Top / Bottom Panel Connection Part , line up screw holes, use 4 pcs of Screw K (#52) to tighten.
- Page 9 UltraHD® Stacking Top Cabinet (Model No. UHD20260T, UHD20261T, UHD20061T, UHD20062T) *NOTE: We recommend using TWO people to assemble the cabinet* Take out corner protection brackets and Step 9: screws off of Storage Cabinet (Model # UHDK20061B/ UHDK20062B/ UHDK20260B/ UHDK20261B) (1) As shown in the left illustration, take out 3 pcs of corner protection brackets and screws (A,B &...
- Page 10 UltraHD® Stacking Top Cabinet (Model No. UHD20260T, UHD20261T, UHD20061T, UHD20062T) *NOTE: We recommend using TWO people to assemble the cabinet* Connecting screws at the back of Stacking Step 10: Top Cabinet and Storage Cabinet (Model # UHDK20061B/ UHDK20062B/ UHDK20260B/ UHDK20261B). Use 8 pcs of screw F (#41) to tighten the back of Stacking Top Cabinet and Storage Cabinet Model # UHDK20061B/...
-
Page 11: Compatibility List
UltraHD® Stacking Top Cabinet (Model No. UHD20260T, UHD20261T, UHD20061T, UHD20062T) *NOTE: We recommend using TWO people to assemble the cabinet* Compatibility List Stacking Top Cabinet Storage Cabinet Color Finish 60"W x 24" D x 18.5" H 60"W x 24" D x 72" H UHD20061T UHDK20061B White... -
Page 12: Contact Information
If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our bilingual (English and Spanish) customer service department at: Seville Classics, Inc. 19401 Harborgate Way Torrance, CA 90501 USA Telephone: (800) 323-5565 within USA... - Page 13 UltraHD® Line UltraHD® Rolling Cabinet UltraHD® 6-Foot Height Adjustable Workbench Model No. 20225 (Granite) Model No. 20292 (Granite) Model No. 20081 (Graphite) Model No. 20293 (Graphite) Model No. 20082 (Red) Model No. 20083 (White) UltraHD® Wall Cabinet with Open Shelf UltraHD®...
