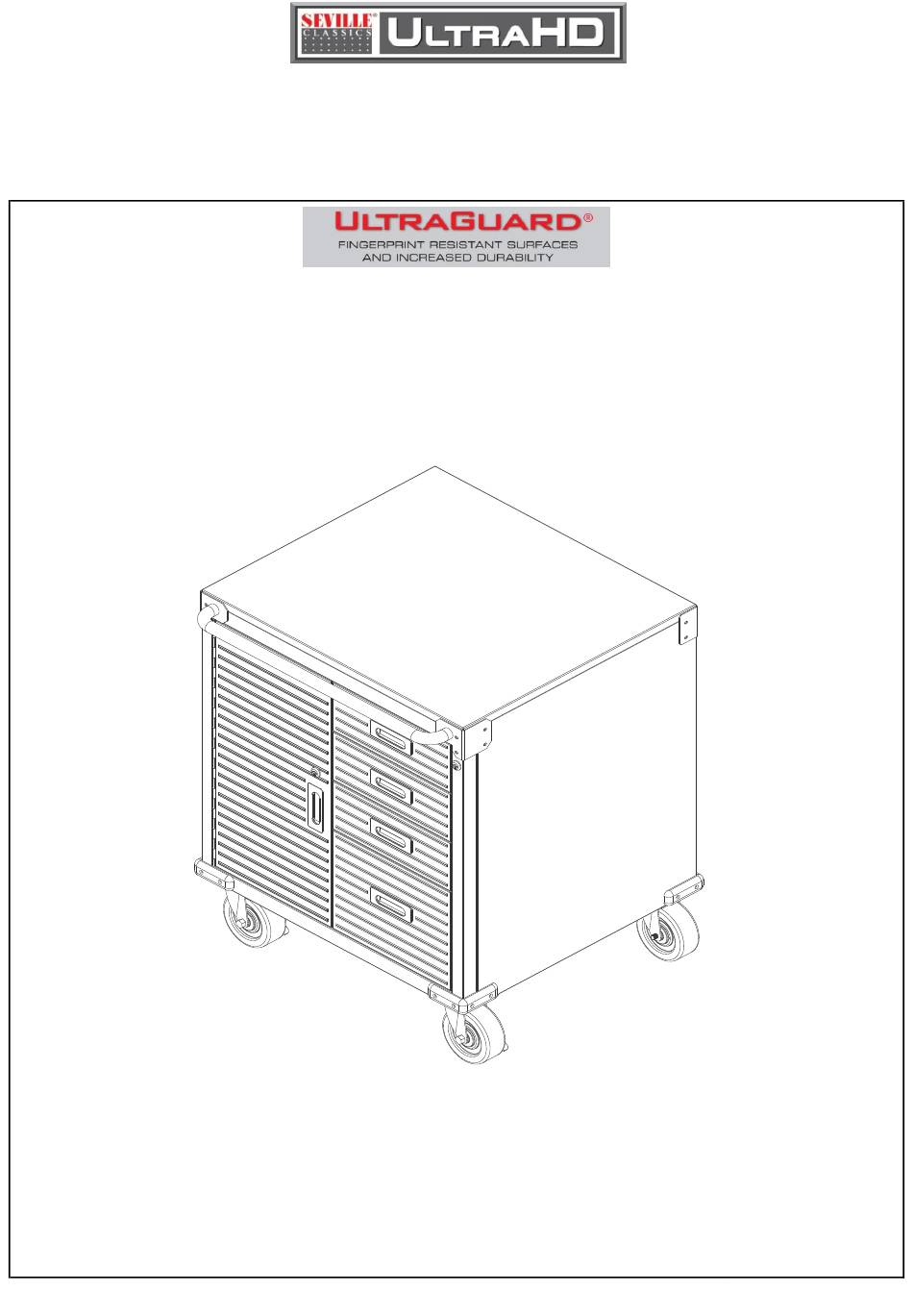

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD® Rolling Cabinet (Model No. 20225, 20081, 20082, 20083) Granite Graphite White 28in. W X 25in. D X 34.5in. H (71.1cm x 63.5cm x 87.6cm ) Reference page 13 for special care and maintenance of stainless steel TR230912...
- Page 3 Small Drawer Assembly Large Drawer Assembly...
-
Page 4: Parts List
PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 14 ). (#1) BOTTOM PANEL x 1 PC (#2) FRONT FRAME x 1 PC (#3) RIGHT PANEL x 1 PC (#4) LEFT PANEL x 1 PC (#5) MIDDLE PANEL x 1 PC... - Page 5 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 14 ). (#9) MIDDLE SHELF x 1 PC (#10) SOLID HARDWOOD TOP x 1 PC (#11) PUSH BAR x 1 PC (#12-1) SMALL DRAWER FRONT PANEL x 3 PCS (#12-3) SMALL DRAWER RIGHT PANEL x 3 PCS...
- Page 6 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 14 ). (#13-1) LARGE DRAWER FRONT PANEL x 1 PC (#13-2) LARGE DRAWER LEFT PANEL x 1 PC (#13-3) LARGE DRAWER RIGHT PANEL x 1 PC (#13-4) LARGE DRAWER BACK PANEL x 1PC (#14) SWIVEL WHEEL WITH BRAKE x 2 PCS...
- Page 7 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 14 ). (#18) RIGHT BACK CORNER PROTECTOR x 1 PC (#19) LEFT BACK CORNER PROTECTOR x 1 PC (#20) SCREW A (M4 x 10) x 58 PCS (#21) SCREW B (M4 x 8) x 95 PCS (#22) DOOR / DRAWER KEY x 2 STRINGS...
- Page 8 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 14 ). (#26) SCREW C (M4 x 18) x 16 PCS (#27) WASHER（M4） x 4 PCS...
- Page 9 UltraHD® Tall Storage Cabinet (Model No. 20225, 20081, 20082, 20083) *NOTE: We recommend using TWO people to assemble the cabinet. A magnetic screwdriver is included for your TIP: convenience. If a power screwdriver is used, keep on a Front low torque setting. Back Step 1.
- Page 10 UltraHD® Tall Storage Cabinet (Model No. 20225, 20081, 20082, 20083) *NOTE: We recommend using TWO people to assemble the cabinet. Step 4. Install the Right Panel (#3). Front Attach the Right Panel (#3) to Front Frame (#2). Make sure the “Top” of the Right Panel (#3) is on the Solid Hardwood Top (#10).
- Page 11 UltraHD® Tall Storage Cabinet (Model No. 20225, 20081, 20082, 20083) *NOTE: We recommend using TWO people to assemble the cabinet. Front Step 7. Install the Bottom Panel (#1). Attach the Bottom Panel (#1) to the Left Panel (#4), Right Panel (#3), Front Frame (#2) and Bottom Back Back Panel (#6).
- Page 12 UltraHD® Tall Storage Cabinet (Model No. 20225, 20081, 20082, 20083) *NOTE: We recommend using TWO people to assemble the cabinet. Step 11. Install Small Drawer Side Panels (#12-2 and #12-3). Fit and attach Small Drawer Side Panels (#12-2 and #12-3) one at a time into the back of the Small Drawer Front Panel (#12-1).
- Page 13 UltraHD® Tall Storage Cabinet (Model No. 20225, 20081, 20082, 20083) *NOTE: We recommend using TWO people to assemble the cabinet. WARNING: Check the key/lock, it must be unlcoked before all the drawers are placed. Step15. Install Drawers into cabinet. a. Pull out the 2 bottom slides for the large drawer.
- Page 14 UltraHD® Tall Storage Cabinet (Model No. 20225, 20081, 20082, 20083) *NOTE: We recommend using TWO people to assemble the cabinet. Install the Middle Shelf (#9). Step 14. a. Decide the height for the Middle Shelf (#9), place the Hooks (#23) into the hook slot and push down. Note: The Middle Shelf has 4 Hooks at each corner for support.
-
Page 15: Contact Information
If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our bilingual (English and Spanish) customer service department at: Seville Classics, Inc. 19401 Harborgate Way Torrance, CA 90501 USA Telephone: (800) 323-5565 within USA... - Page 16 UltraHD® Line UltraHD® 4-Drawer Rolling Cabinet UltraHD® 6-Foot Height Adjustable Workbench Model No. 20205 (Granite) Model No. 20292 (Granite) Model No. 20252 (Graphite) Model No. 20293 (Graphite) Model No. 20258 (White) UltraHD® Wall Cabinet with Open Shelf UltraHD® 2-Door Rolling Workbench Model No.
