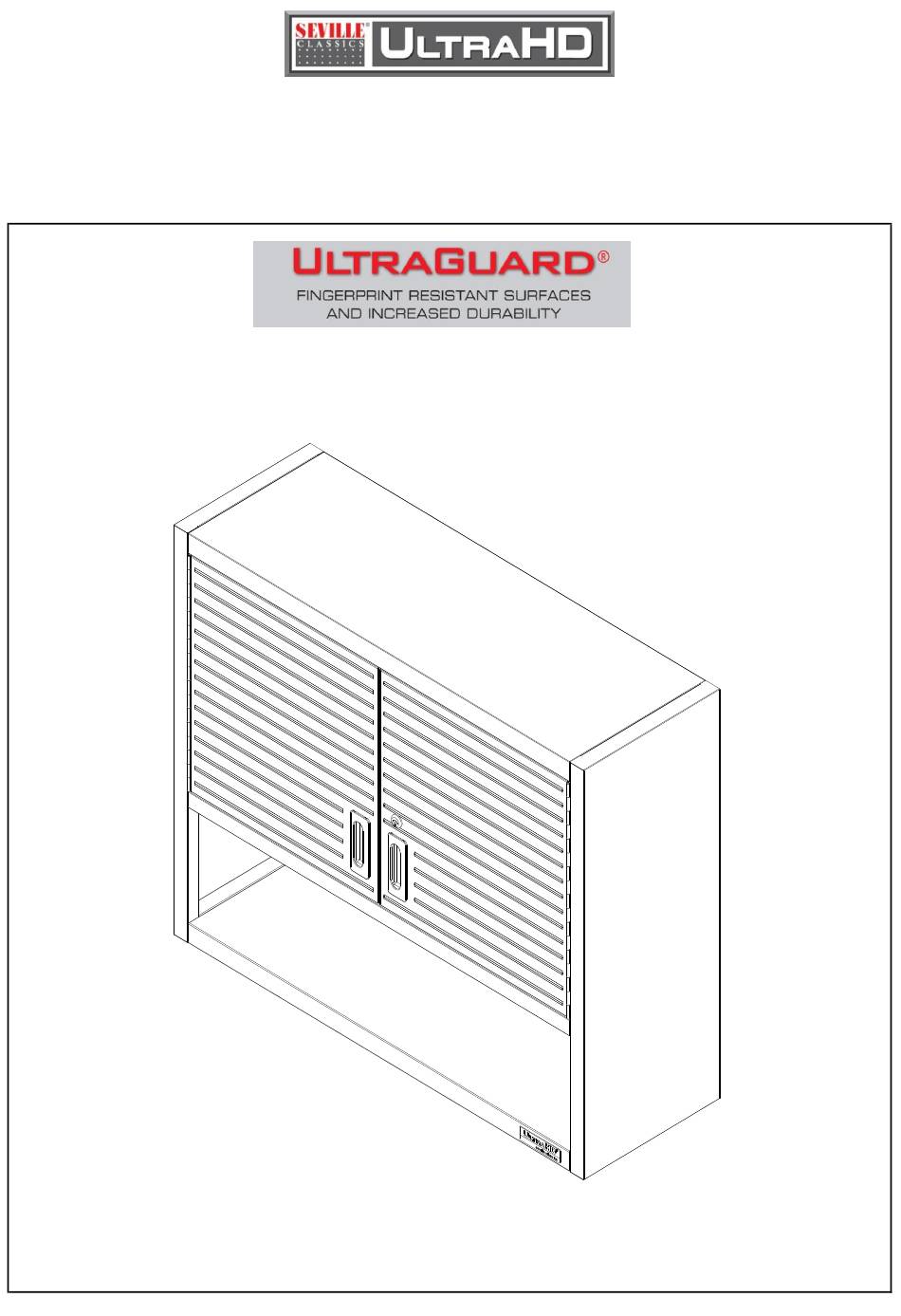

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD Wall Cabinet (Model No. 20230) 36in. W X 12in. D X 30in. H (91.44cm W X 30.48cm D X 76.2cm H) Reference page 10 for special care and maintenance of stainless steel TR151216...
- Page 2 (pg 1 of 10)
-
Page 3: Recommended Tool List
PARTS LIST (pg 2 of 10) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 10 of 10) RECOMMENDED TOOL LIST LEVEL STUD FINDER TRIANGULAR SQUARE PART LIST (#1) LEFT PANEL x 1 PC... - Page 4 PARTS LIST (pg 3 of 10) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 10 of 10) (#5) BOTTOM PANEL x 1 PC (#6) MIDDLE SHELF x 1 PC (#7) UPPER BACK PANEL x 1 PC (#8) BOTTOM BACK PANEL x 1 PC...
- Page 5 PARTS LIST (pg 4 of 10) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 10 of 10) (#22) KEY x 2 PCS (#23) MAGNET x 2 PCS (#21) SCREW DRIVER x 1 PC (#15) SCREW B (M4 x 8L) x 6 PCS...
- Page 6 ASSEMBLY INSTRUCTIONS (pg 5 of 10) UltraHD Wall Cabinet (Model No. 20230) TIP: A magnetic screwdriver is included for your convenience. If a power screwdriver is used, keep on a low torque setting. Step 1: Install the Left Panel (#1) onto the Top Panel (#3)
- Page 7 ASSEMBLY INSTRUCTIONS (pg 6 of 10) UltraHD Wall Cabinet (Model No. 20230) Step 4: Install Bottom Panel (#5). Attach the Bottom Panel (#5) as the left picture shows. Use 6 pcs of Screw F (#41) to fasten the Bottom Panel(#5) to the Left and Right Panel (#1 and #2).
- Page 8 ASSEMBLY INSTRUCTIONS (pg 7 of 10) UltraHD Wall Cabinet (Model No.20230 ) Step 7: Install the Middle shelf (#6) a. Decide the height for the Middle Shelf (#6), place the Hooks (#34) into the hook slots and push down. Note: The Middle Shelf (#6) needs 4 hooks at each corner for support.
- Page 9 ASSEMBLY INSTRUCTIONS (pg 8 of 10) UltraHD Wall Cabinet (Model No. 20230) To find the screw holes to fasten the Wall-Hanging Brackets, please refer to the accompanying shop drawing. Place the shop drawing on the wall and align the holes in the drawing.
- Page 10 6 flat hooks on the back of the cabinet. Installation Guide for the WALL HANGING BRACKET of the UltraHD Wall Cabinet (Model No. 20230) A. Decide where to hang the Wall Cabinet. Note: We recommend that the cabinet be hung such that the bottom of the cabinet rests approx. 55.5" above the floor.
- Page 11 ASSEMBLY INSTRUCTIONS (pg 10 of 10) UltraHD Wall Cabinet (Model No.20230 ) Stainless Steel Maintenance: These parts have an UltraGuard® fingerprint resistant finish. Do not use traditional stainless steel cleaners on this unit. Lightly wipe off once a month with clean warm water and a soft cloth (preferably a micro fiber cloth).
- Page 12 UltraHD Line Model No. 16238 Model No. 16236 UltraHD Storage Cabinet UltraHD Storage Cabinet Model No. 20206 Model No. 20204 UltraHD 6- Drawer Rolling Cabinet UltraHD Workbench...
- Page 13 UltraHD Line Model No. 20227 UltraHD Rolling Cabinet Model No. 20262 Model No. 20267 UltraHD Workcenter UltraHD Rolling Workbench Model No. 20215 Model No. 20255 UltraHD Trash Bin UltraHD Tool Box...
